More information:

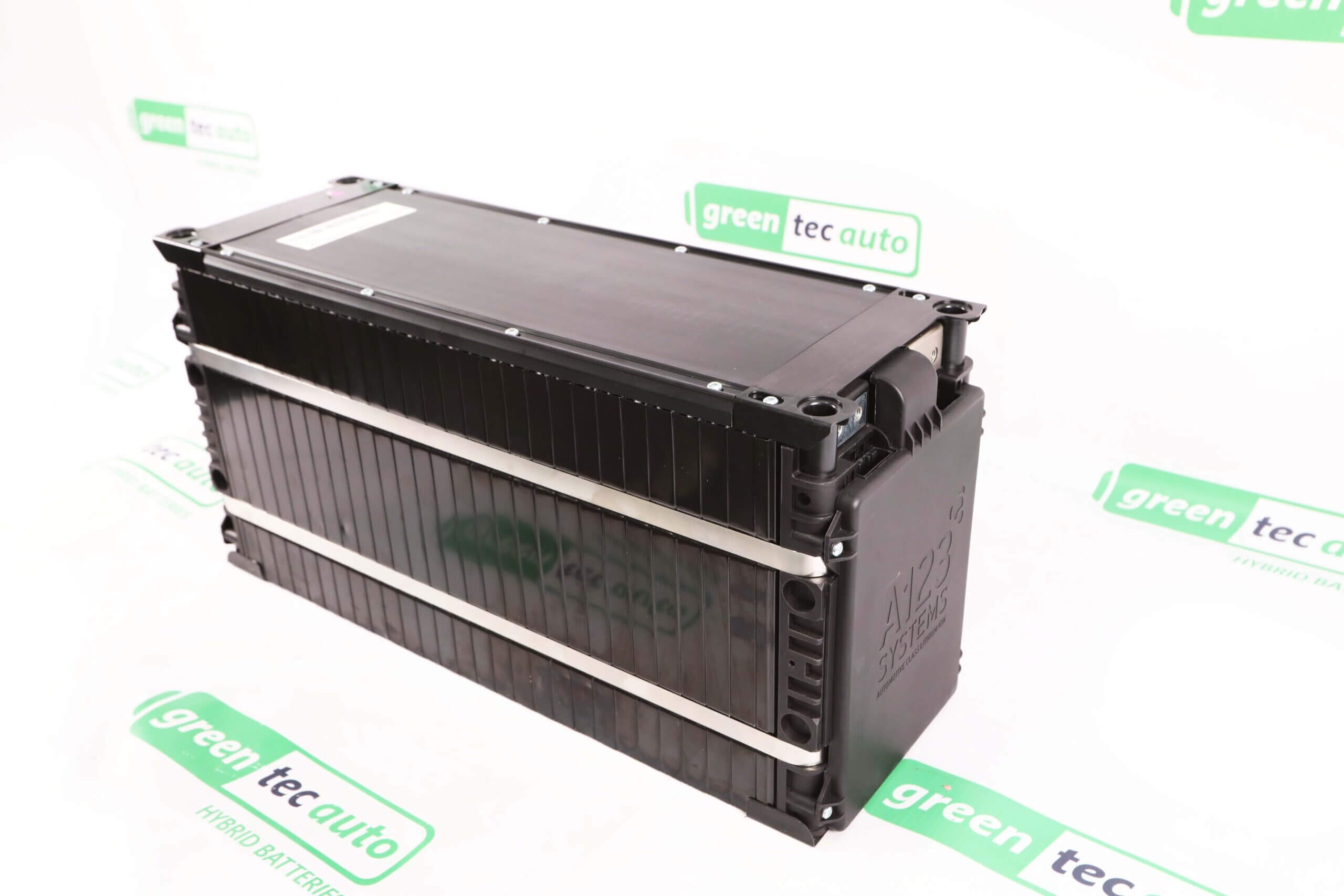

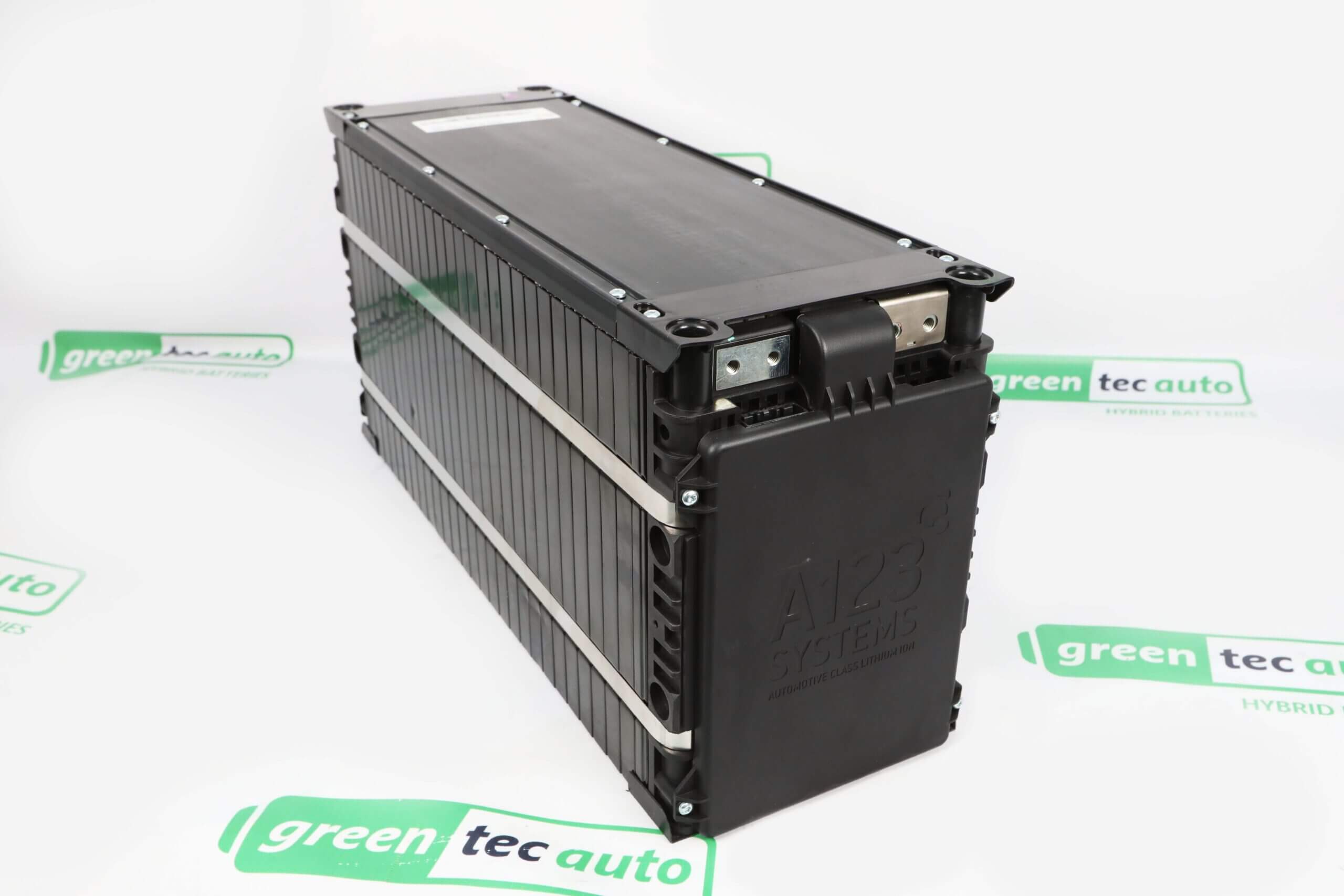

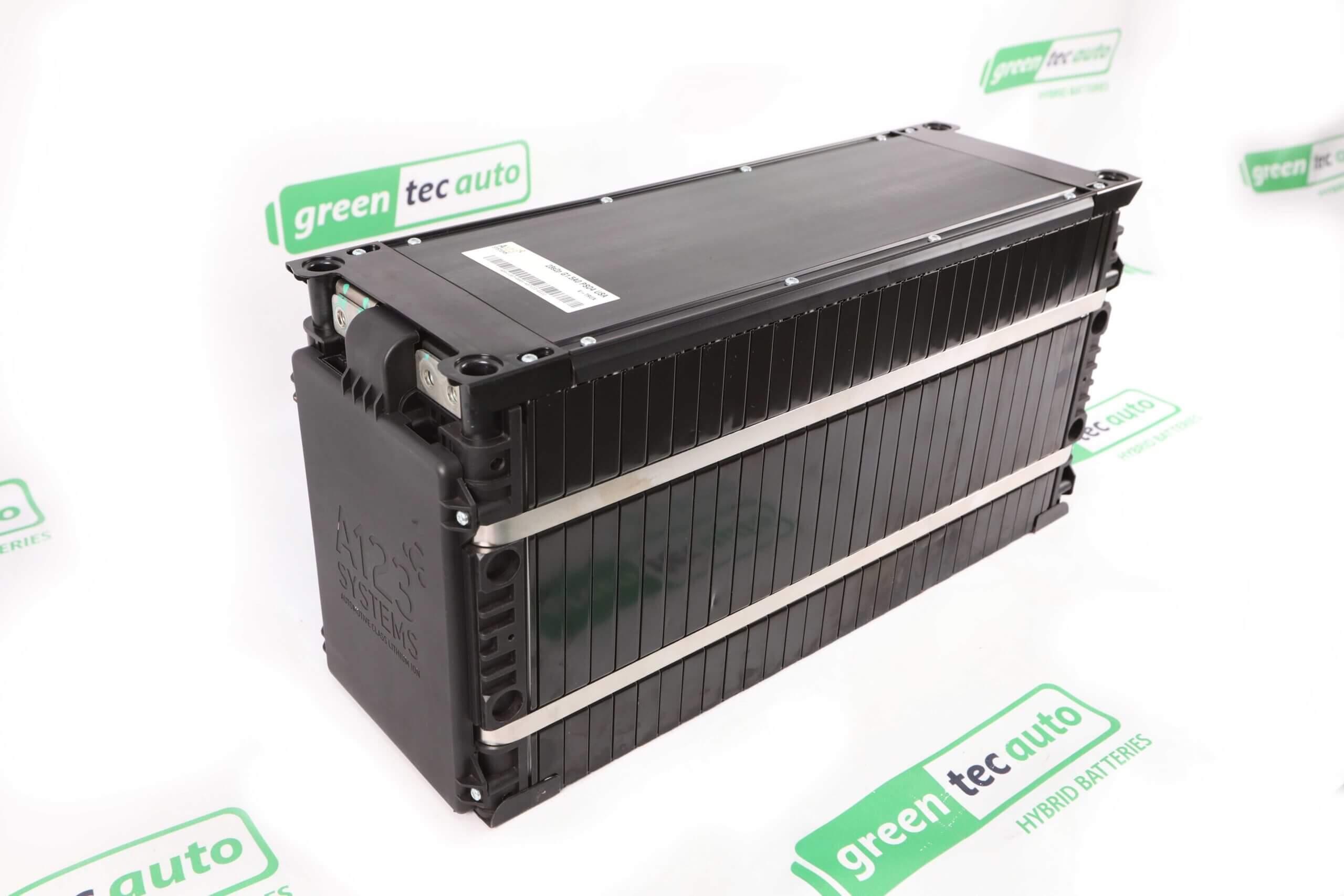

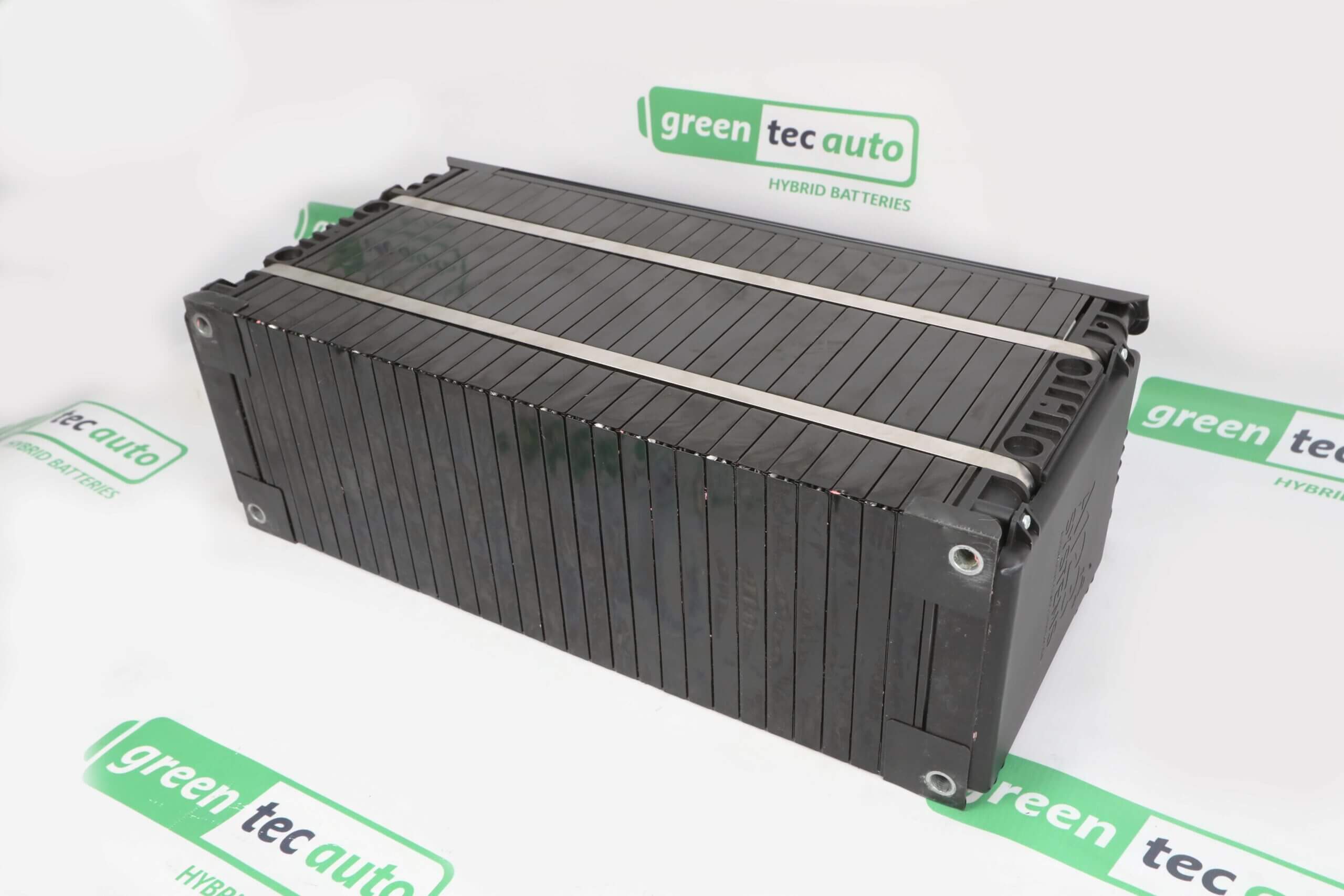

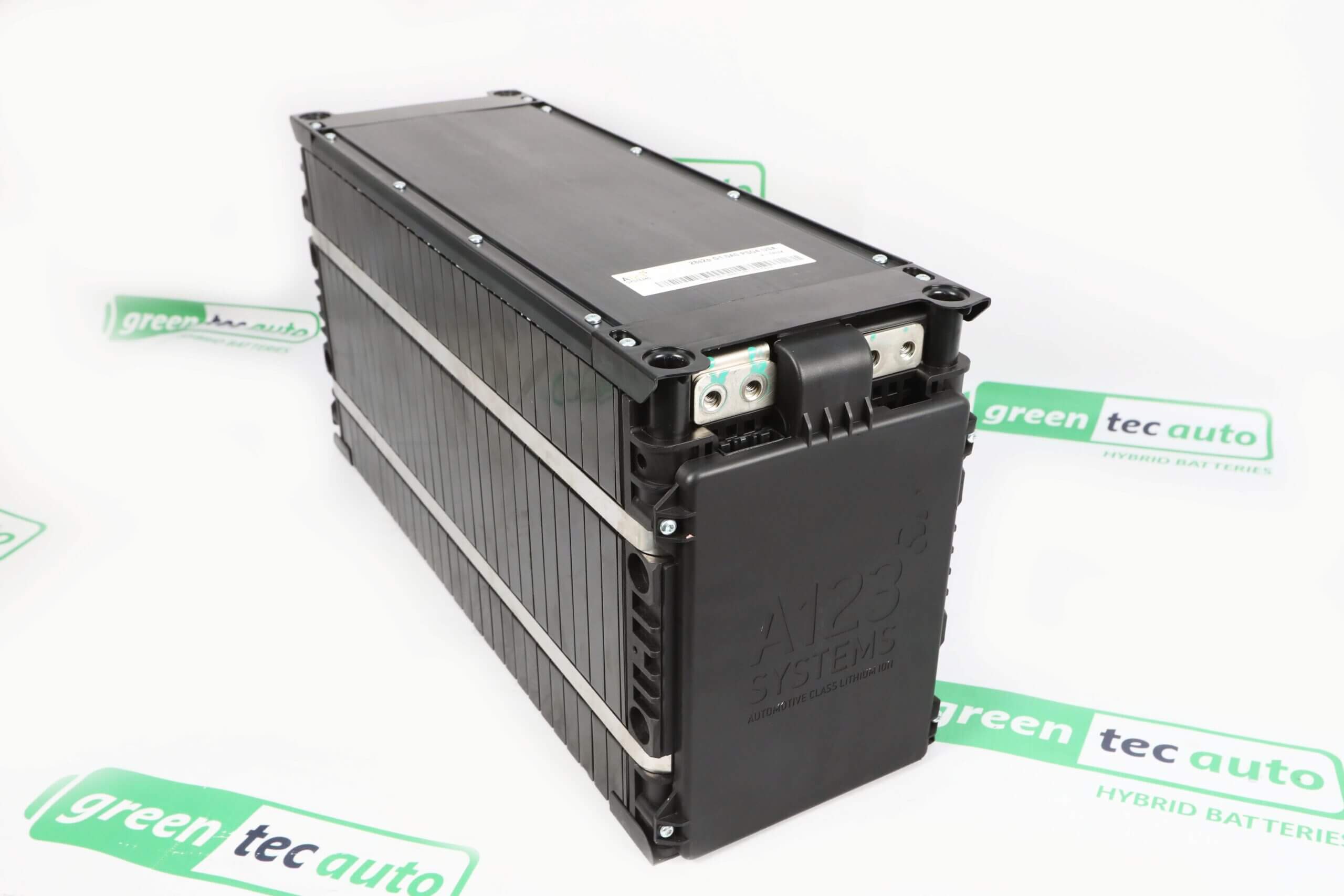

Each module is rated for 92V and 39.2Ah.
You can make a higher voltage battery by wiring these modules in series, they are rated up to 400V. You can also parallel these modules together for more capacity.
We have some data on the CAN communication we can share if you request it, but we are not sure if it is the same for these modules. Please email energy@greentecauto.com for this data.

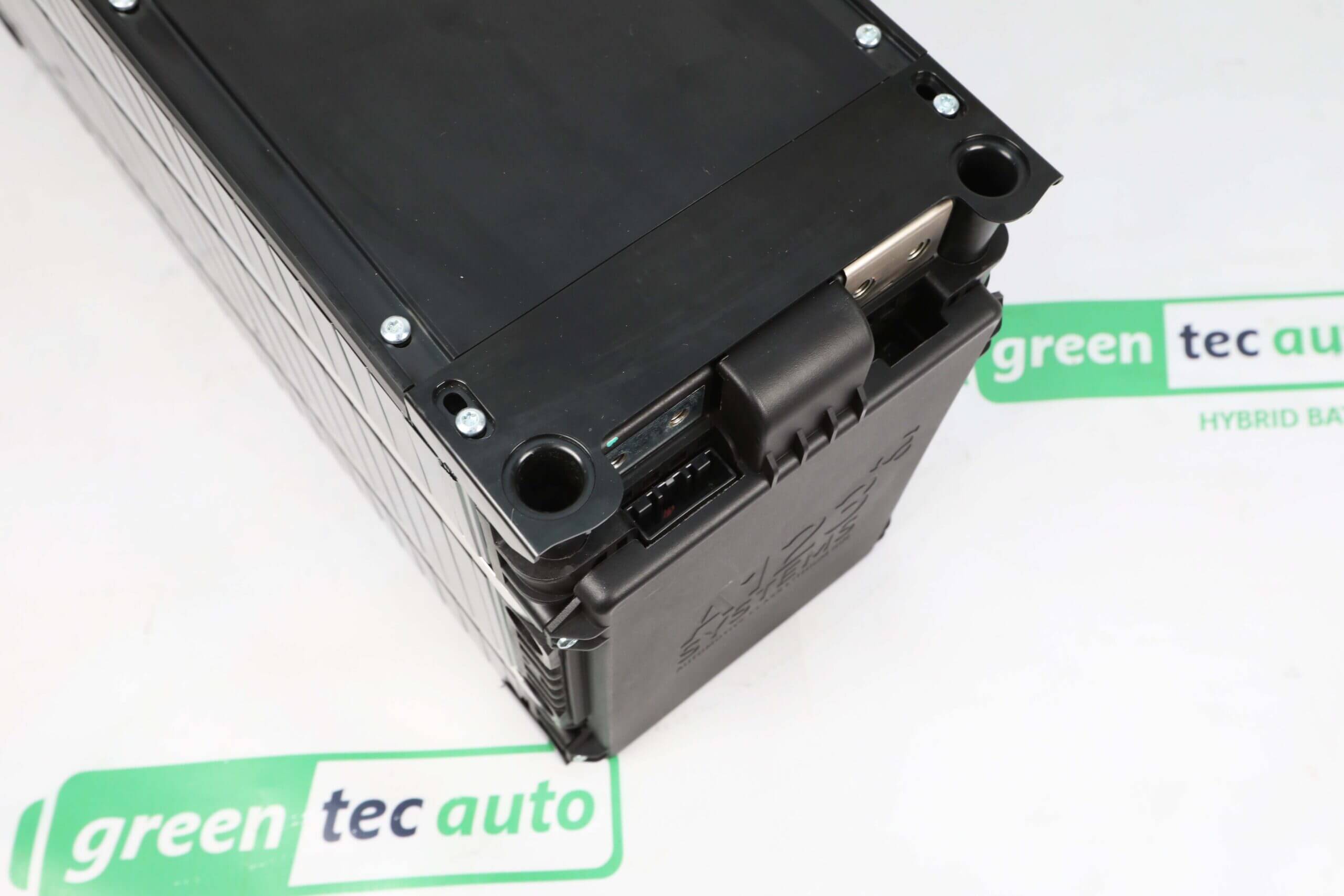

Each module has a BMS attached to each side of it. There is an off the shelf MCU that works with other versions of this module, but it is currently not compatible with this module. We have tried to connect Thunderstruck’s MCU and two cells dont show up on the screen. We are working with Thunderstruck to see if they can get their MCU updated to work with these, but it will take a few months. If you plan on installing your own BMS, it will be quite easy to access the BMS wiring once you take the top and side covers off. You can cut and splice one wire at a time from the plug that leads to the BMS.
Shipping will need to be freight due to the module size. We can ship this pallet to one of our locations for pickup for no more than $250, or ship to a commercial address or freight hub near you for $350. Residential freight delivery is possible for an additional charge, contact us for a quote.
| Cells in Series | V Maximum | V Nominal | V Minimum | kWh | Weight |
| 1 | 3.6 | 3.3 | 2 | ||
| 28 | 100.8 | 92.4 | 56 | 3.62 | 72lb |
| 56 | 201.6 | 184.8 | 112 | 7.24 | 144lb |
| 84 | 302.4 | 277.2 | 168 | 10.86 | 216lb |
| 112 | 403.2 | 369.6 | 224 | 14.48 | 288lb |
Peak Discharge Current: 600A
Nominal Discharge Current: 400A

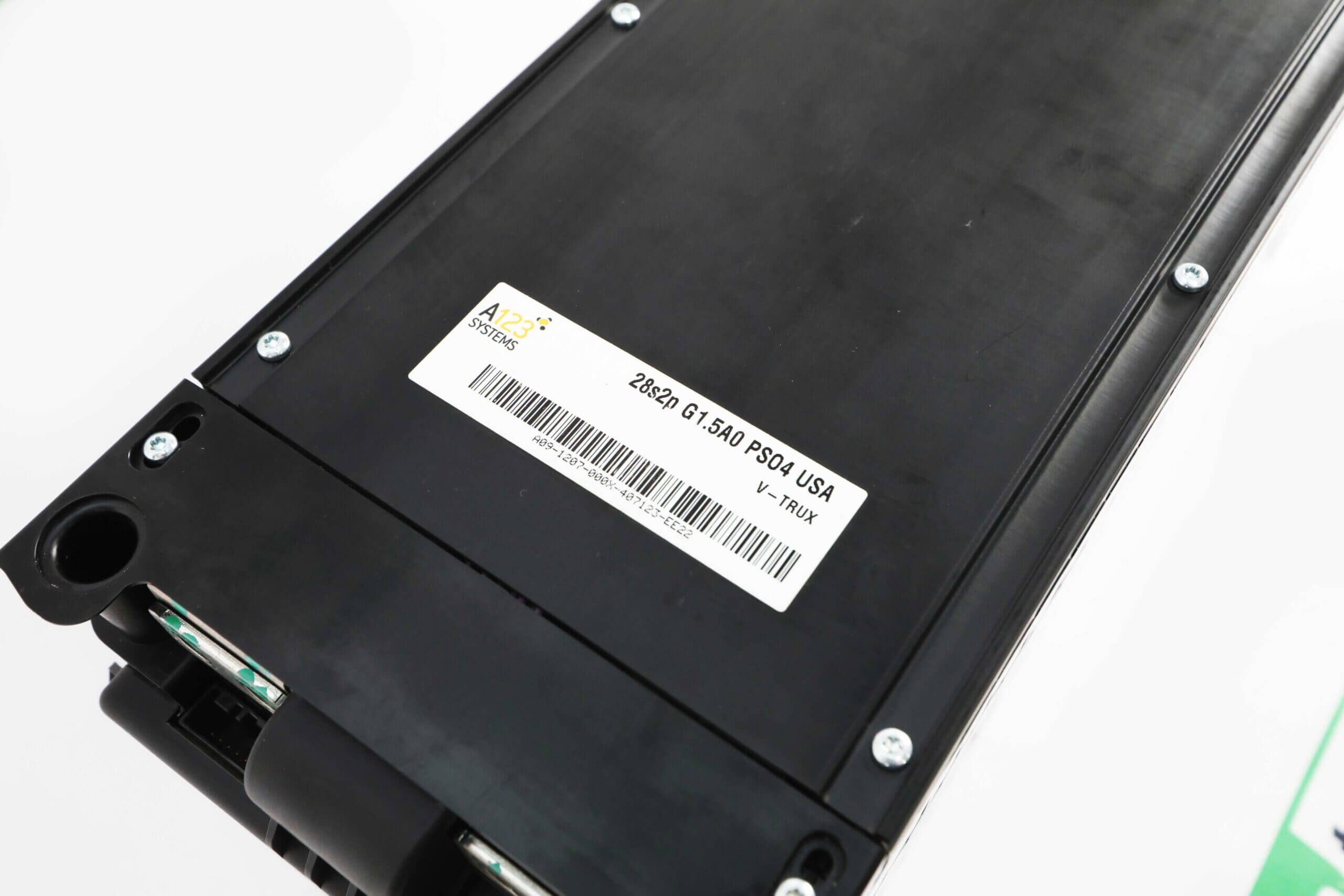

28S2p Configuration
Length: 20 inches
Width: 6 5/8 inches
Height: 9 3/4 inches
Weight: 72lb
