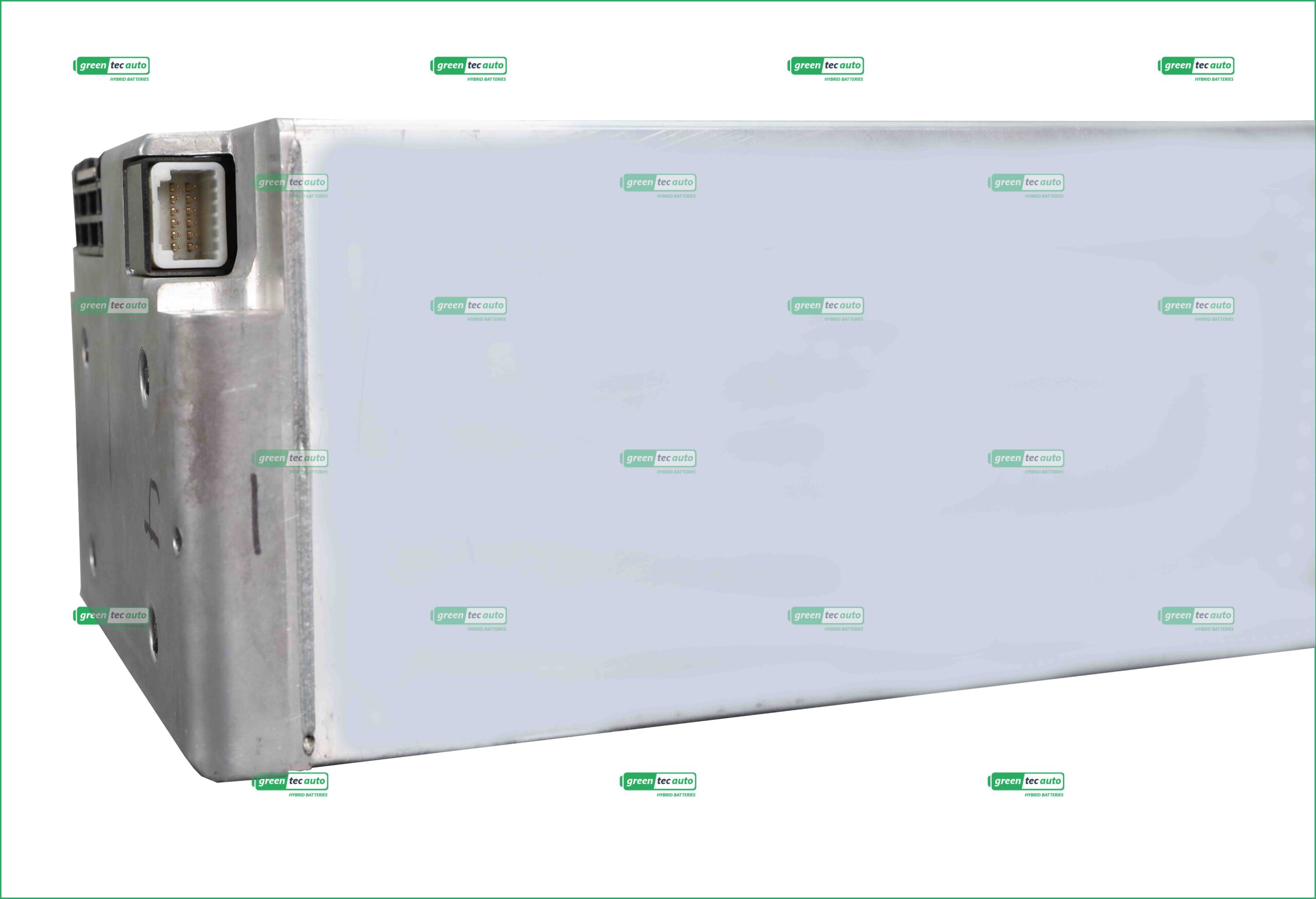

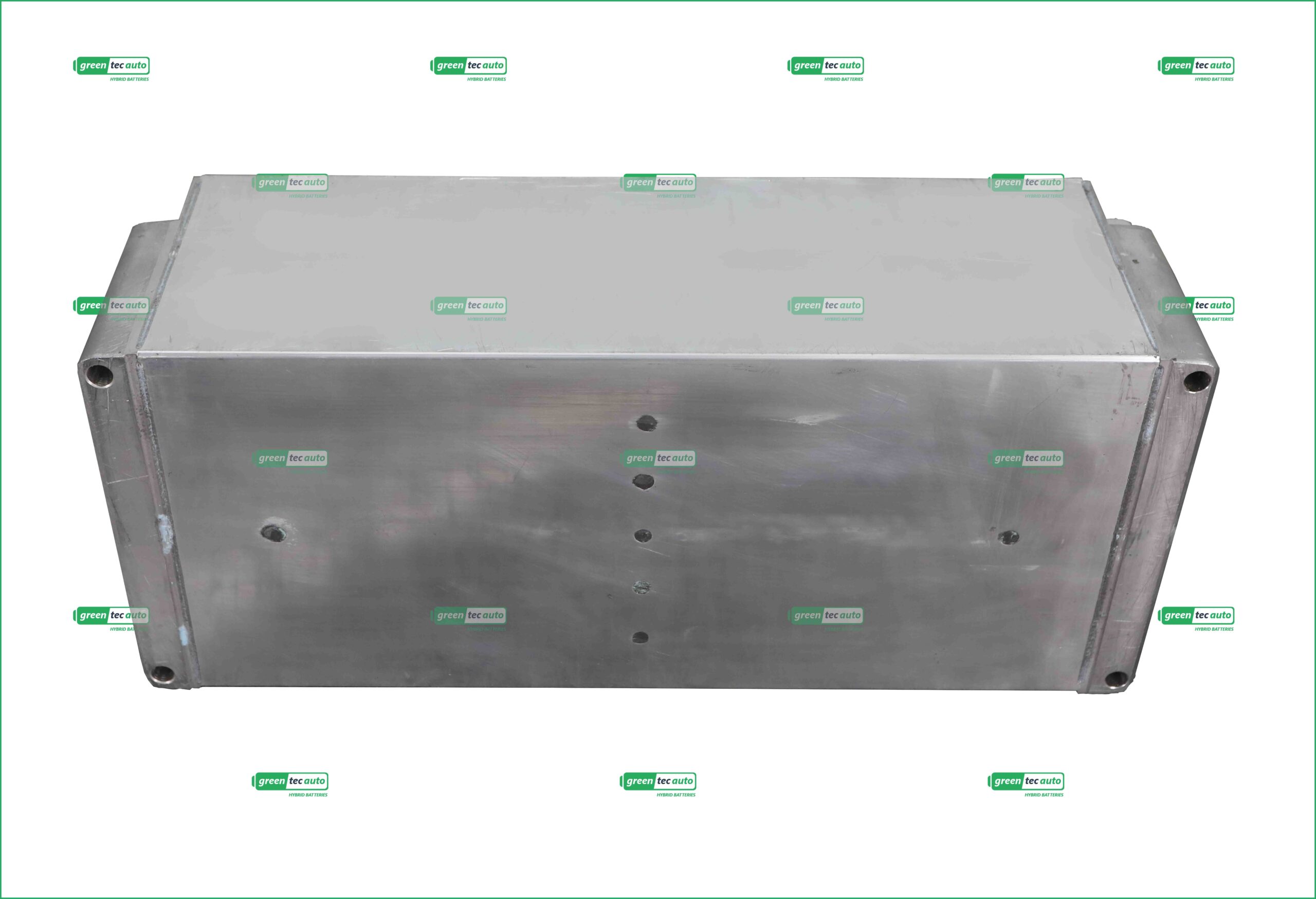

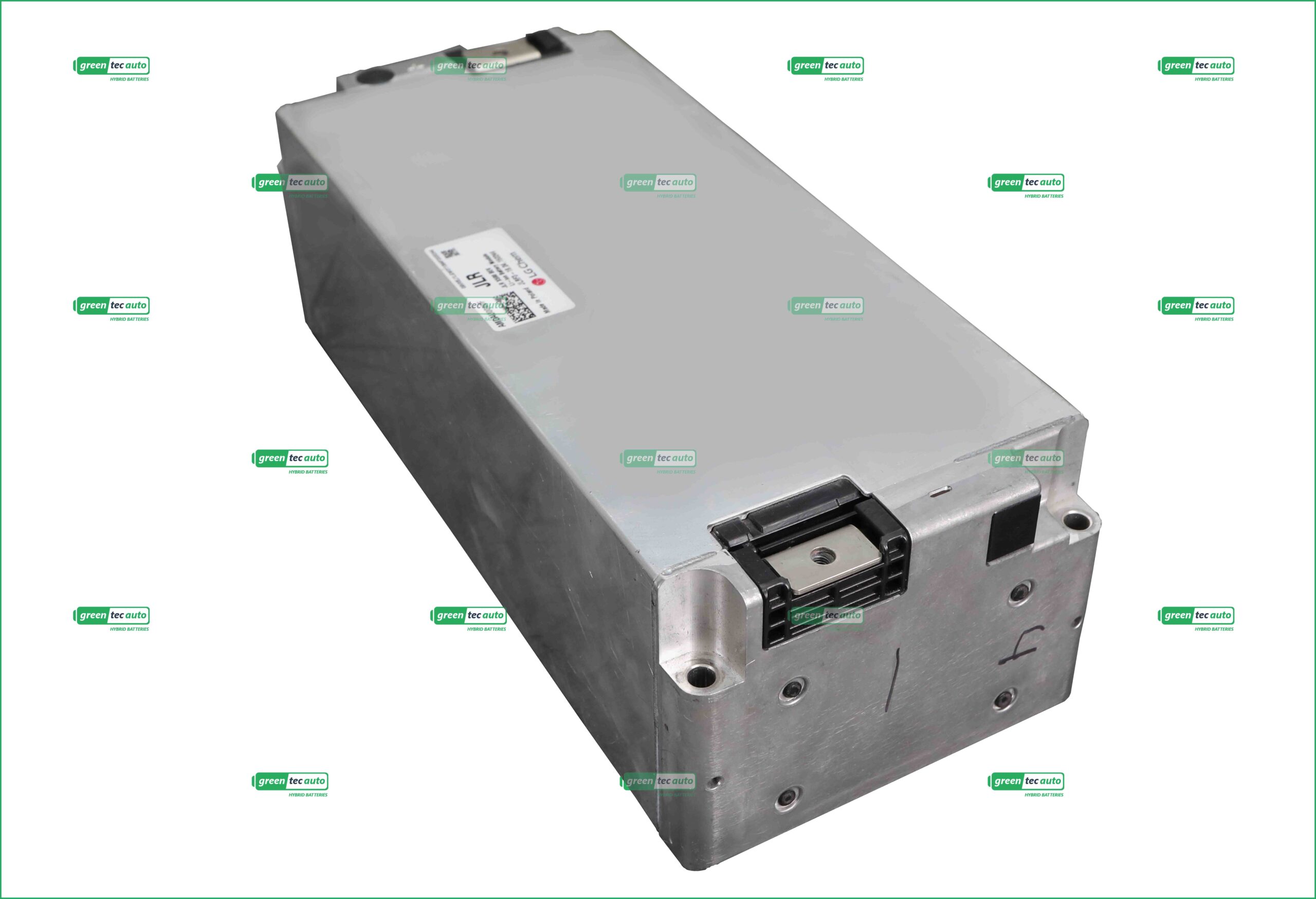

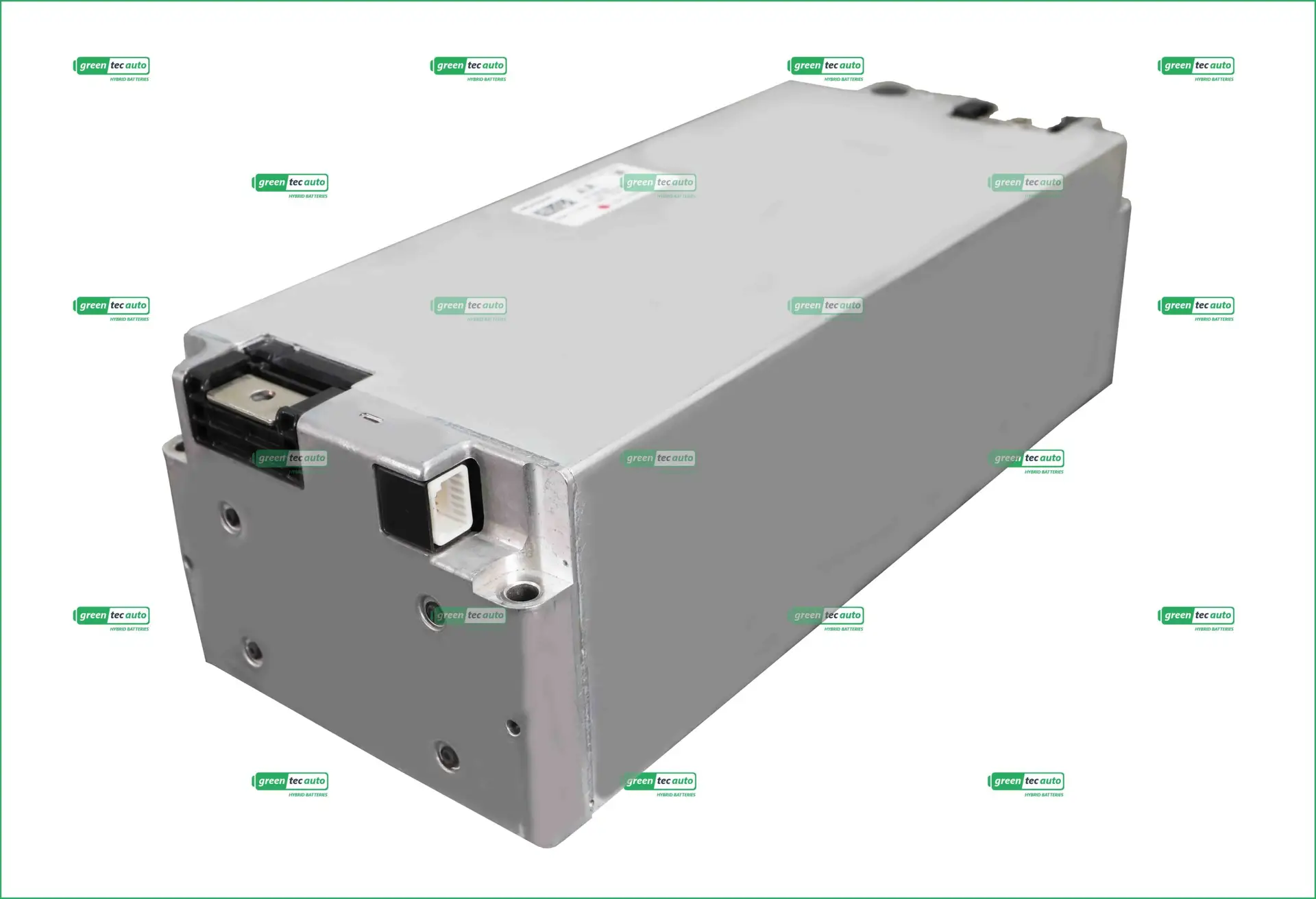

Jaguar i-Pace battery module that makes powerwalls and EV conversions easy. Mounting holes in each corner make them easy to mount to any flat surface, weather its on the floor or on the wall. The ability to purchase your own connectors and pins allows you to make the connector harness the length you need it, without having to solder on additional wire. An all aluminum case makes heat dissipation easier for the module, and a much cleaner look than most others. These modules are quite easy to series and parallel together into a large power bank without having to handle one large heavy battery.
Made with LG pouch cells in a 3s4p configuration.

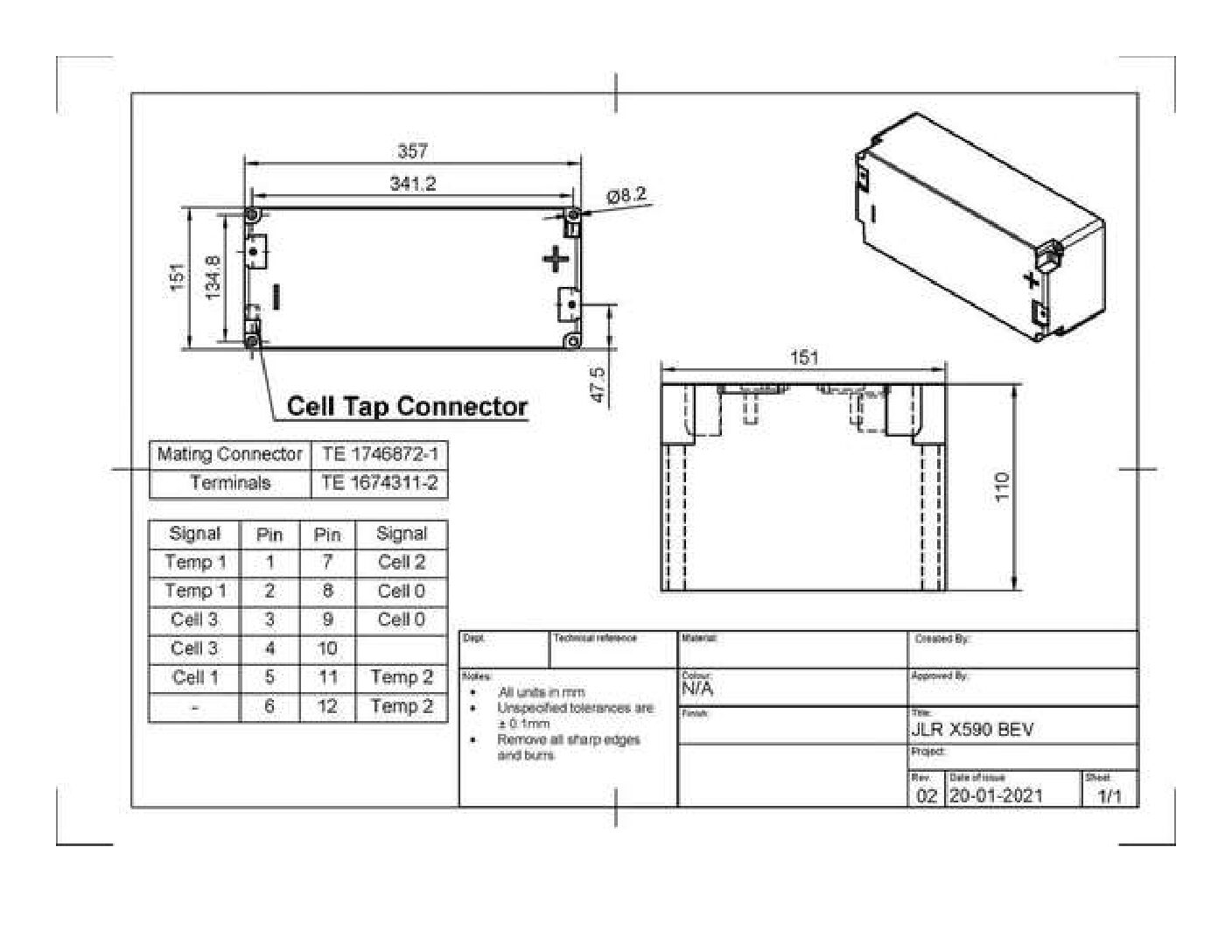

The pin numbers in the last image have been discontinued, please use the following part numbers. The best place to buy in low volume will be Digikey.
Connector part number: 1746872-1
Pin part number: 1674311-8
Specifications:
Nominal Module Energy: 2.5kWh
Nominal Cell Capacity: 232 Ah
Module Configuration: 3s4p
Max Module Voltage: 12.3V
Nominal Module Voltage: 10.8V
Min Module Voltage: 9.6V
Max Cell Voltage: 4.1V
Nominal Cell Voltage: 3.6V
Min Cell Voltage: 3.2V
Length: 357mm
Width: 151mm
Height: 110mm
Weight: 26.9 lbs
Nominal Discharge Current: 320A
Peak Discharge Current: 400A
Peak Charge Current: 260A
