This high power module makes it easy to tailor an energy solution to your precise needs. These modules go well for any EV application and golf carts that can handle the higher voltage of this module. This battery module is easy to assemble into larger battery packs for more range and higher voltage.

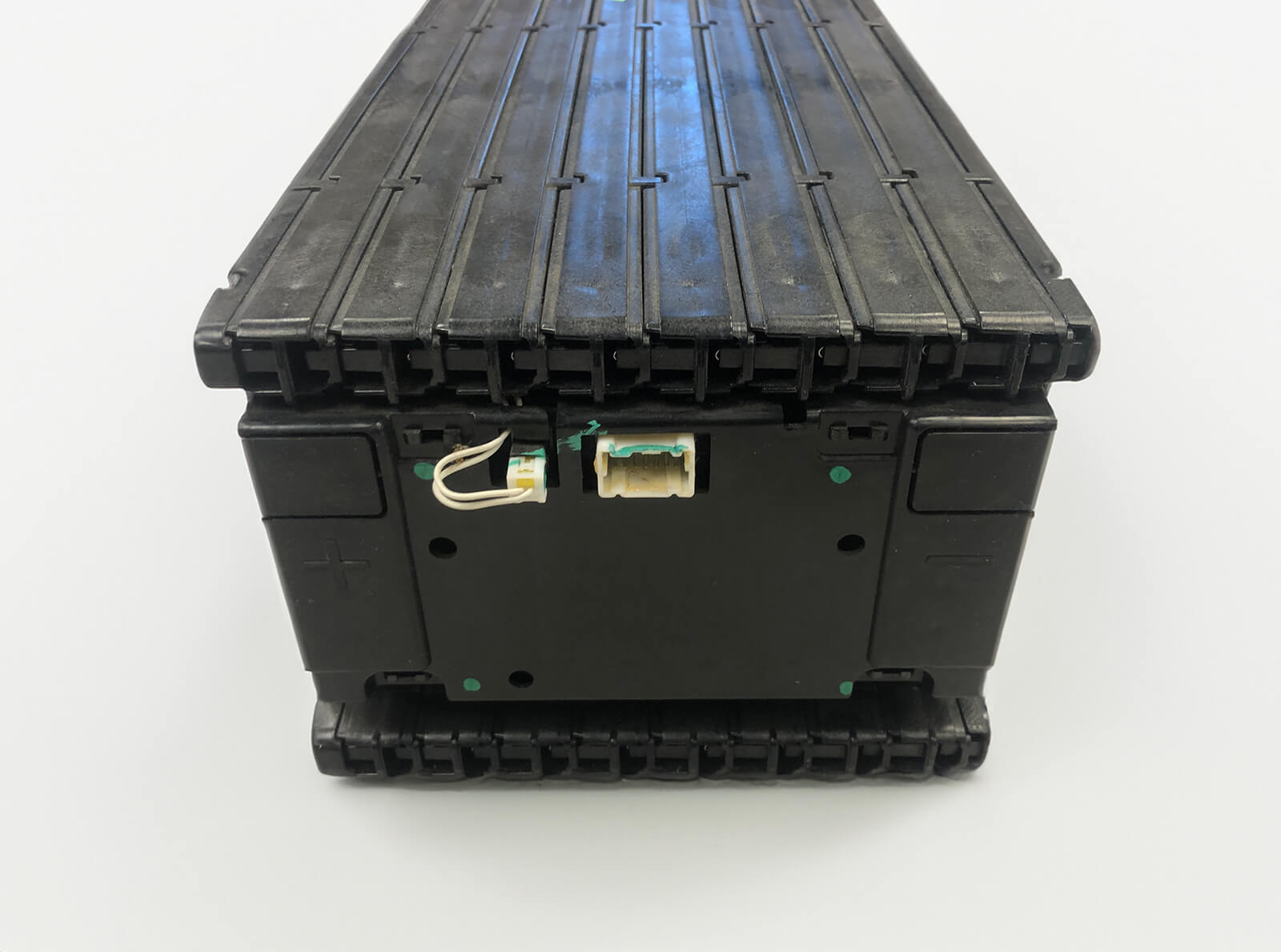

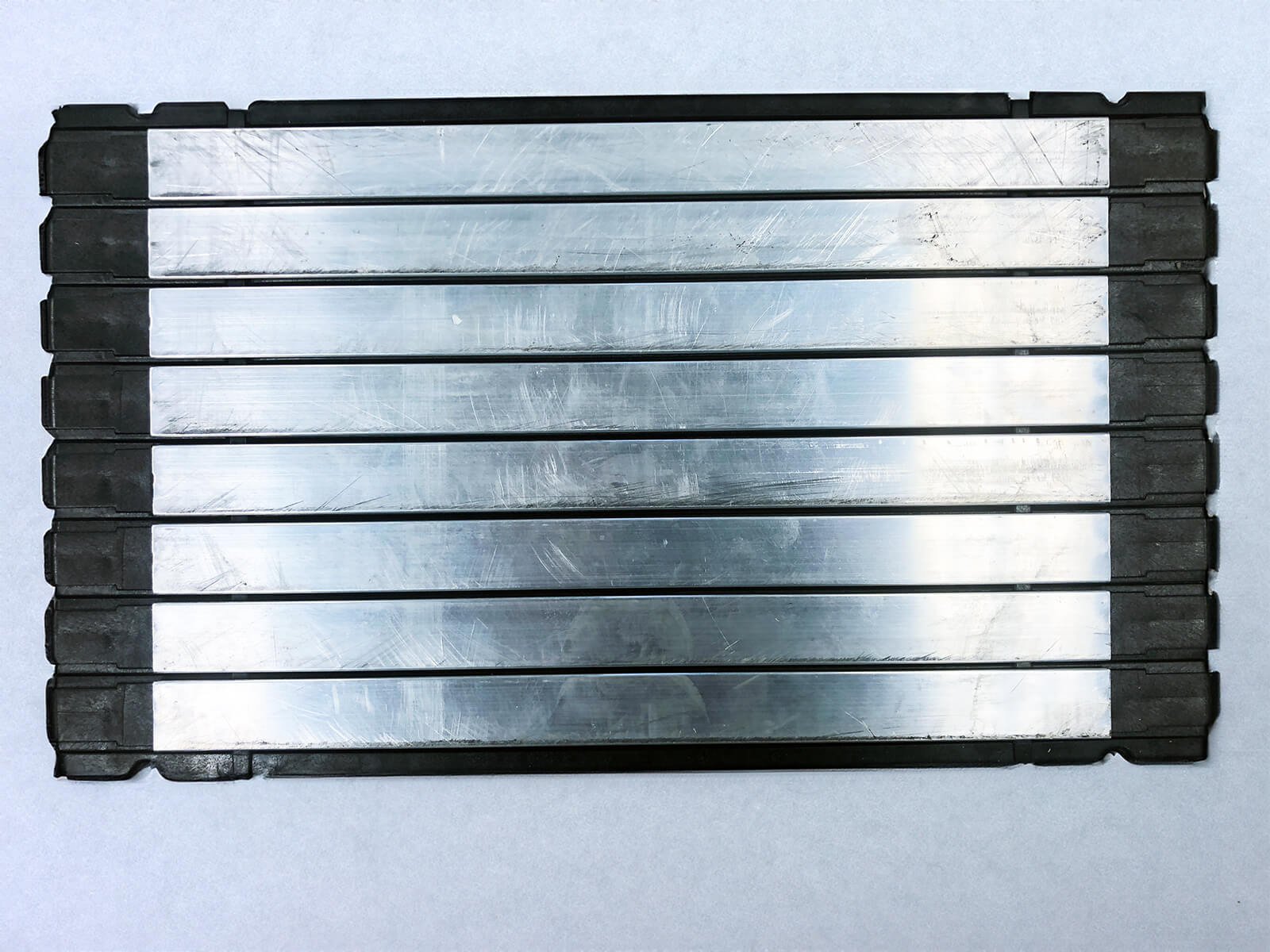

Each module boasts an impressive 2.6kWh. A continuous current rating of 200-400 amps, with a maximum discharge of 800 amps. The bottom of the module has aluminum cooling fins that were attached to cooling plates. We have the voltage sensing connectors and pins, you will need to crimp the pins onto your BMS wire and slide them into the connector.
Specifications:
Specifications | |
|---|---|
| Capacity | 2.6 kWh |
| Height | 14.25 inches |
| Width | 8.00 inches |
| Length | 6.25 inches |
| Weight | 38.00 pounds |
| Bolt Size | M6 |
| Voltage nominal | 3.8V/Cell, 60.8V/Module |
| Charge voltage cut-off | 4.2V/Cell, 67.2V/Module |
| Discharging cut-off | 3.3V/Cell, 52.8V/Module |
| Max Discharging Current (10 sec.) | 800 Amps |
| Module configuration | 16s1p |
Shipping: Free - the cost of shipping to you is included with your purchase.
