LITHIUM BATTERY LiMn2O4/LiNiO2

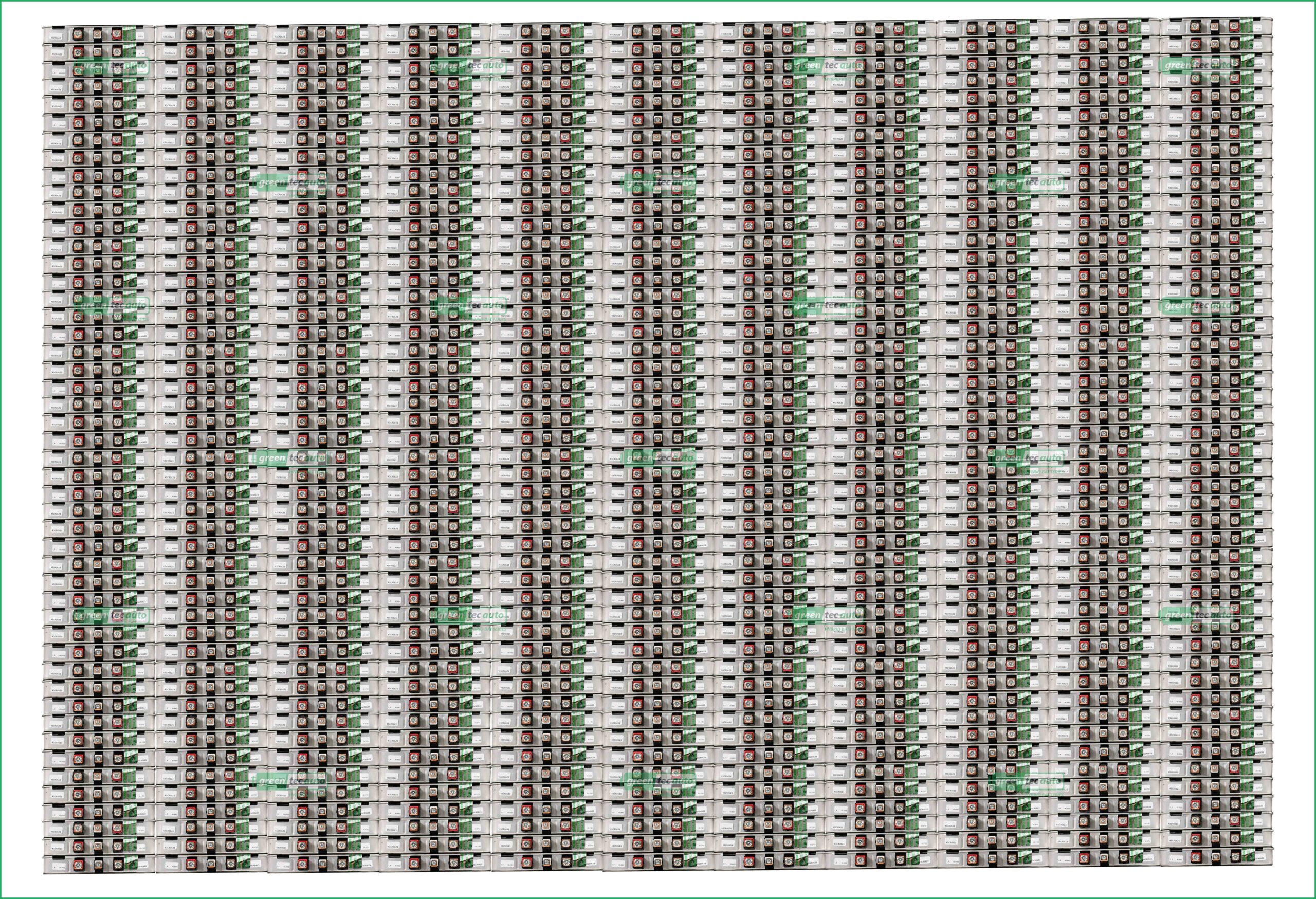

That’s right, this is for 4700 modules, about as many as we can fit into a 53 foot truck before it is over weight. We have around 6 truck loads available at a steal!
Each pallet will be graded by SOH, you will receive roughly the same grade of modules, in the range of 60-65% SoH.

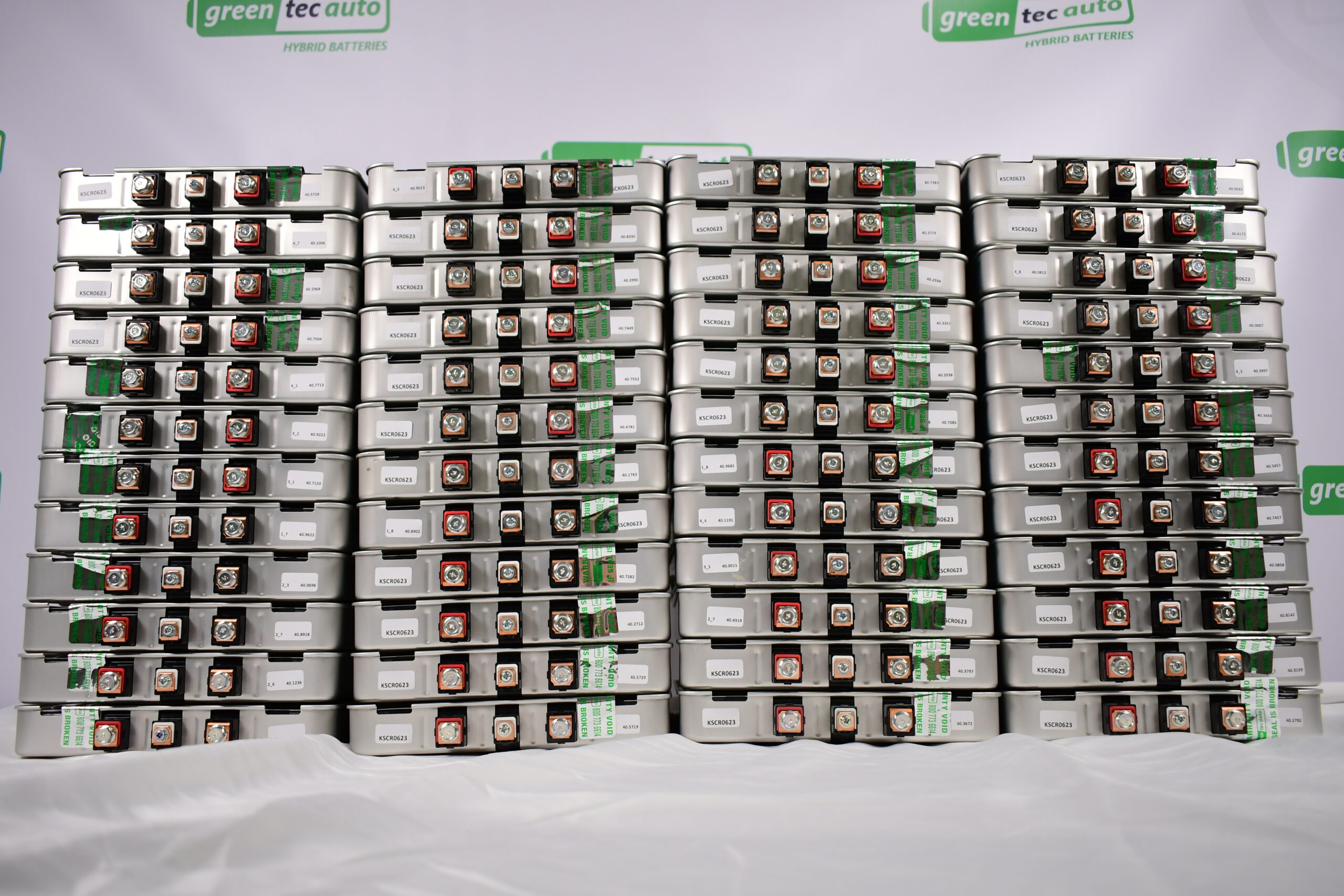

Modules will be packed in boxes, between 5 and 8 modules per box. Boxes are stacked on pallets, strapped and shrink wrapped.
We no longer have any spacers to send with these modules, please purchase spacers or washers elsewhere. Spacer thickness is 0.14″, or 1/8 inch, or 3.6mm.
The test discharges the module from 8.3V down to 5V at 20A.
There are 2 types of Gen 1 cells. Ones with positive on the left and ones with positive on the right. We will send modules randomly, but they are roughly 50/50.
SHIPPING: Shipped by truck, will be able to provide you with a quote if you send us a destination, or you set up your own shipping service. This listing does not include shipping cost.
MODULE SPECIFICATIONS
| Number of cells | 4 |
| Construction | 2 in-series, 2 in parallel |
| Length | 11.9291″ (303 mm) |
| Width | 8.7795″ (223 mm) |
| Height | 1.3779″ (35 mm) |
| Weight | 8.3775 lbs (3.8 kgs) |
| Output terminal | M6 nut |
| Voltage sensing center terminal | M4 nut |
| Module fixing hole diameter | 0.3582″ (9.1 mm) |
CELL SPECIFICATIONS
| Cell Type | Laminate type |
| Cathode material | LiMn2O4 with LiNiO2 |
| Anode material | Graphite |
| Rated capacity (0.3C)/td> | 33.1 Ah |
| Average voltage | 3.8V |
| Length | 11.417″ (290 mm) |
| Width | 8.504″ (216 mm) |
| Thickness | 0.2795″ (7.1mm) |
| Weight | 1.7624 lbs (799 g) |
