Each module will come with the bolts for the battery terminals as well as spacers. If we run out of original spacers, we will be including washers of a similar thickness instead.
We will include one set of busbars for the lot of 49 and 70, and 3 sets of busbars for the lot of 210 for free!
Nothing broken or bent. May have scratches on the shielding.
Each module has 4 cells in a 2s2p configuration. 3.8V nominal per cell makes the module 7.6V. The center tap is to wire your BMS to monitor the voltages. LMO chemistry is inherently safer than other Lithium Ion chemistries, making them an ideal battery for home energy storage.
***Disclaimer: These modules are intended for second life use, not to be used in the Nissan Leaf.***
SHIPPING: To local freight hub or commercial address with forklift or loading dock. Residential delivery possible for an extra charge, contact our office. Shipping will be either R and L or Fedex. Available in 48 continental US states. HI and AK please call for pricing.
LITHIUM BATTERY LiMn2O4/LiNiO2

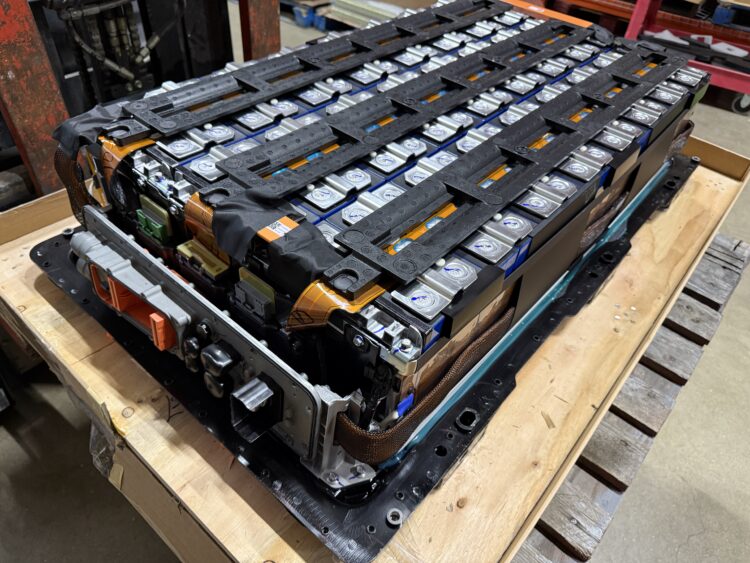

These are Nissan LEAF batteries that were removed from Leaf’s by Nissan due to limited range. Each module is tested for actual capacity. Since they suffer from range problems, calling them 64Ah 500W would not be accurate.
- The test discharges the module from 8.3V down to 5V at 20A.
- The resulting capacity is going to be labeled on the module.
- You will know the exact capacity of every module you receive.
Nissan only replaced the batteries after the SoH level dropped from 12 bars to 8 bars or lower, so there is no chance they are going to be 70% capacity or more, the average we have been seeing is 65% capacity. The capacity within one pack can vary up to 3 Ah on average, sometimes up to 7Ah. We sort our modules based on the tested capacity and ship groups within 1Ah of each other, usually less.
- Modules are grouped within 1Ah of each other.
- Will be shipped with bolts and spacers.
- Come with 6 month warranty.

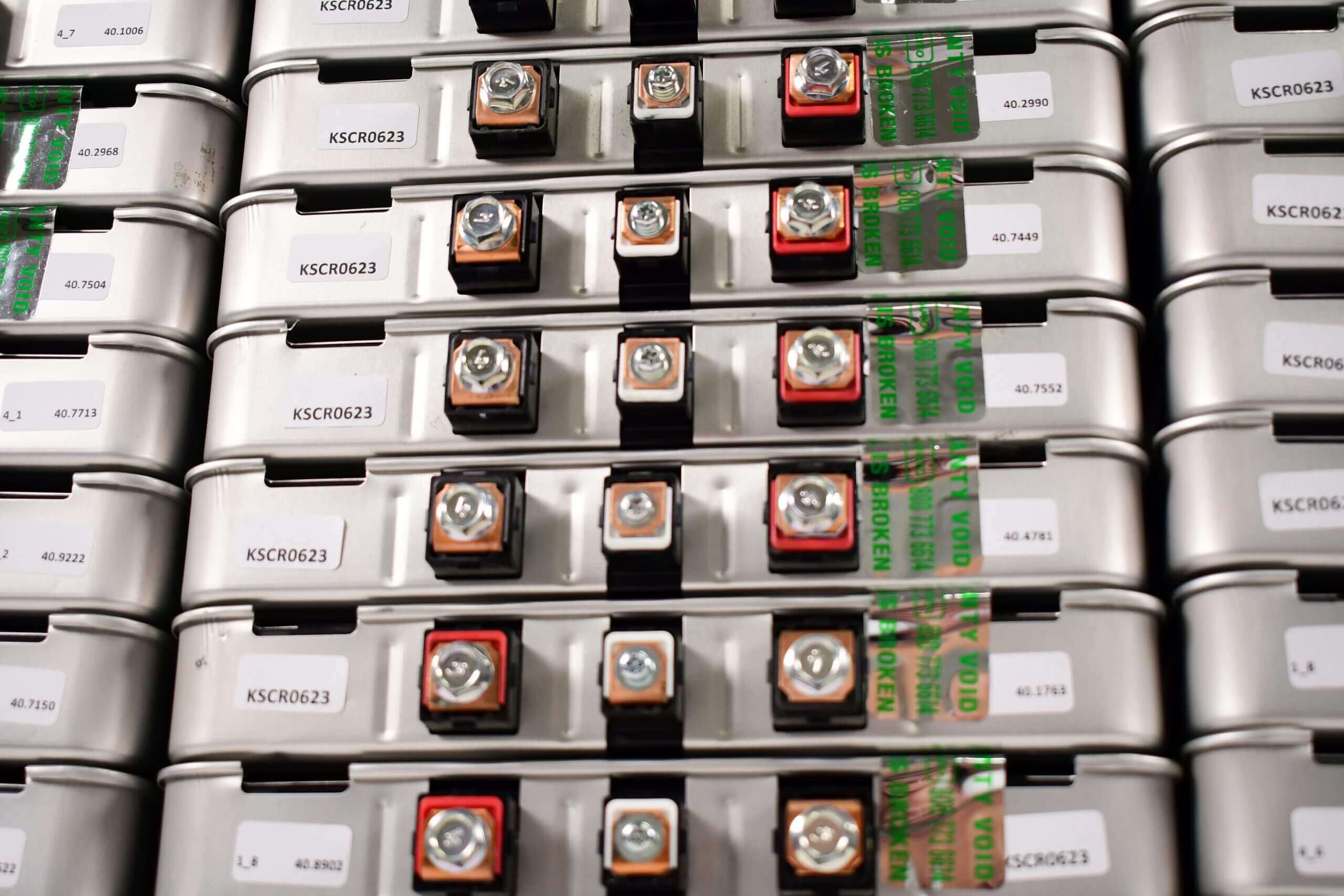

- There are 2 types of cells. Ones with positive on the left and ones with positive on the right. (see photo)

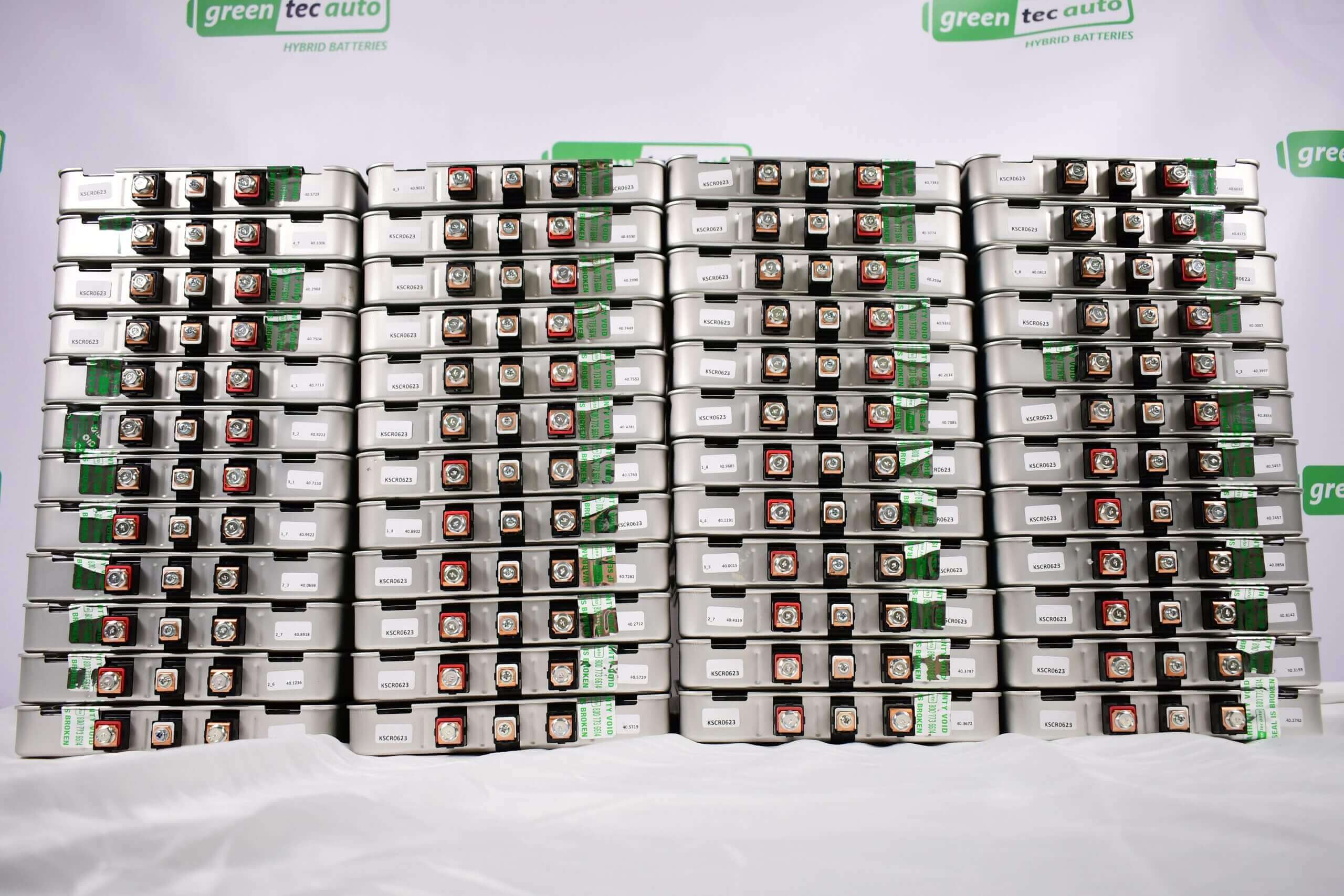

- If 49 are purchased, you will receive 21 of one type and 28 of the other.
- If 70 are purchased, you will receive 30 of one type and 40 of the other.
- If 210 are purchased, you will receive 90 of one type and 120 of the other.
MODULE SPECIFICATIONS
| Number of cells | 4 |
| Construction | 2 in-series, 2 in parallel |
| Length | 11.9291″ (303 mm) |
| Width | 8.7795″ (223 mm) |
| Height | 1.3779″ (35 mm) |
| Weight | 8.3775 lbs (3.8 kgs) |
| Output terminal | M6 nut |
| Voltage sensing center terminal | M4 nut |
| Module fixing hole diameter | 0.3582″ (9.1 mm) |
CELL SPECIFICATIONS
| Cell Type | Laminate type |
| Cathode material | LiMn2O4 with LiNiO2 |
| Anode material | Graphite |
| Rated capacity (0.3C)/td> | 33.1 Ah |
| Average voltage | 3.8V |
| Length | 11.417″ (290 mm) |
| Width | 8.504″ (216 mm) |
| Thickness | 0.2795″ (7.1mm) |
| Weight | 1.7624 lbs (799 g) |
Connect Your Modules

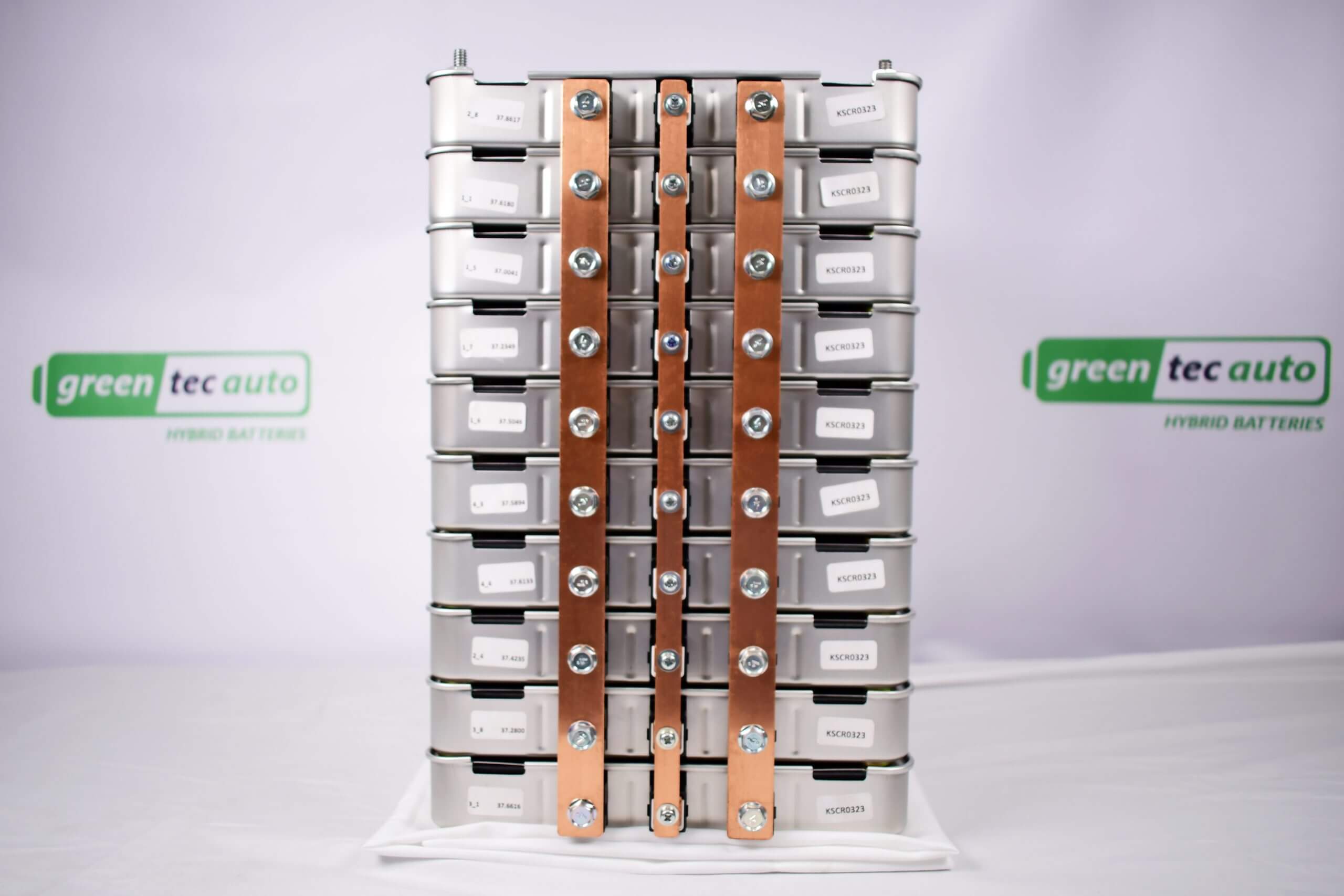

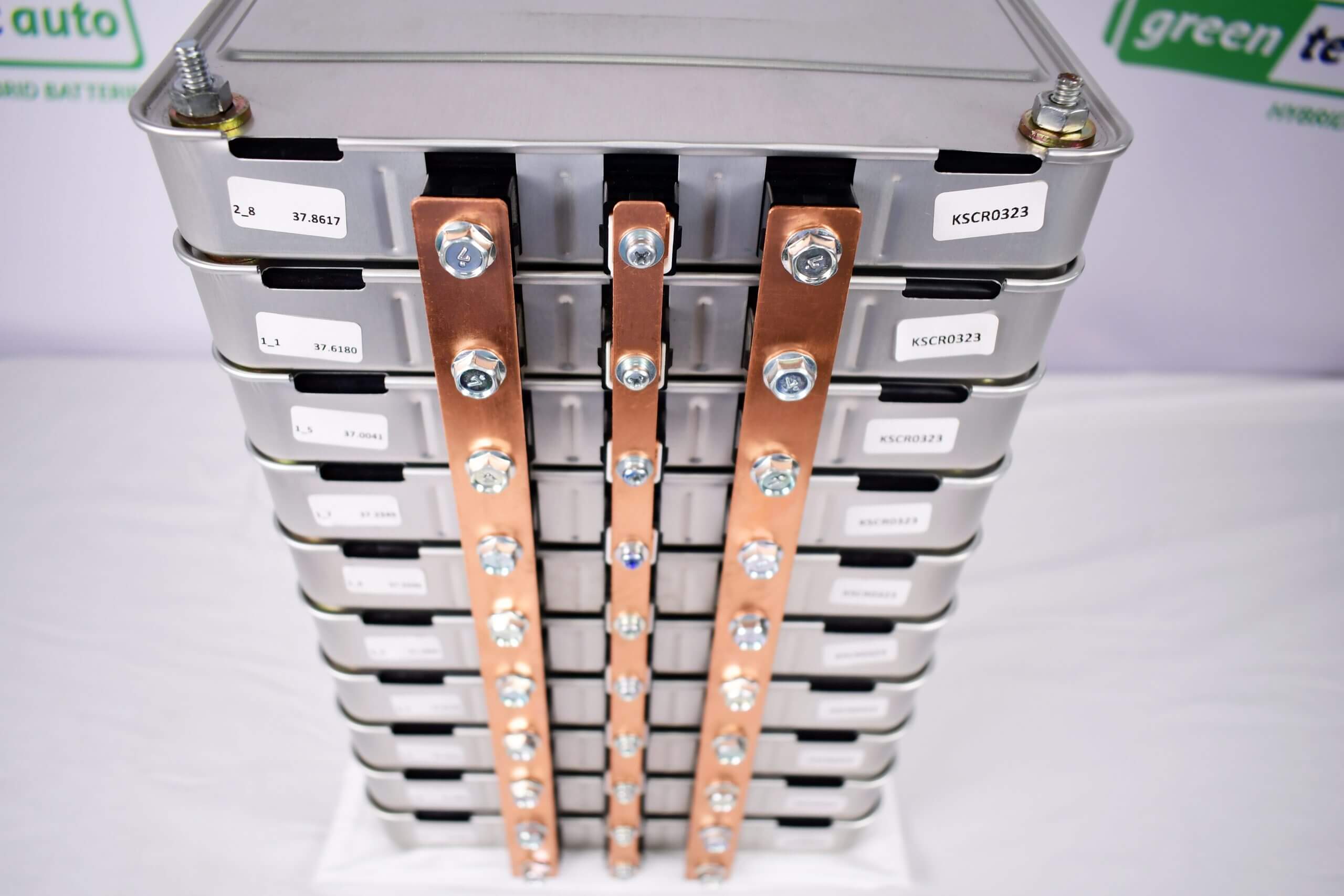

Three copper busbar segments that allow you to wire a 10p14s battery bank using Nissan Leaf modules.
You might also need these:
Buying multiple modules and want to create a series? This product is often bought with our copper Nissan Leaf Bus bar kit. The kit contains three copper busbar segments that allow you to wire a 10p14s battery bank using Nissan Leaf modules.
