Brand New, never been used, still in the box, with only one cycle batteries. Model number 48V030-GC2.
These Relion batteries speak for themselves. They are highly sought after as a ready to go 48V LFP battery for more than one application.
This lightweight and maintenance-free battery was engineered specifically to power golf cars, utility vehicles, and AGVs.
These batteries have a built in BMS with CAN communication so they can talk between the modules.
The batteries will be shipped in OFF mode, you will need to hold the power button for 6 seconds to turn them on. Please refer to the battery manual here.
Each module will come with one communication cable.
Click here for a battery fuel gauge and here for a remote on/off button.

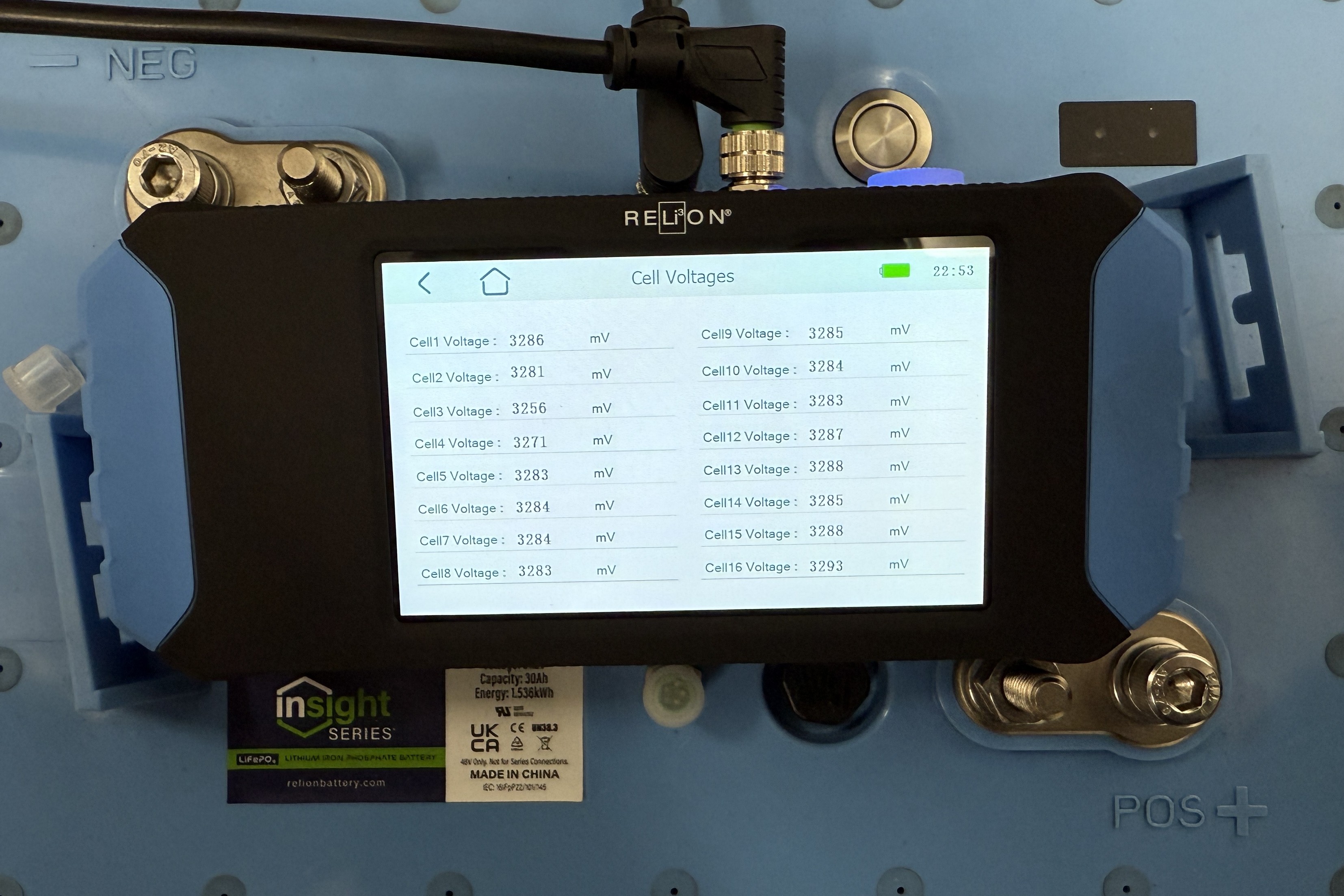

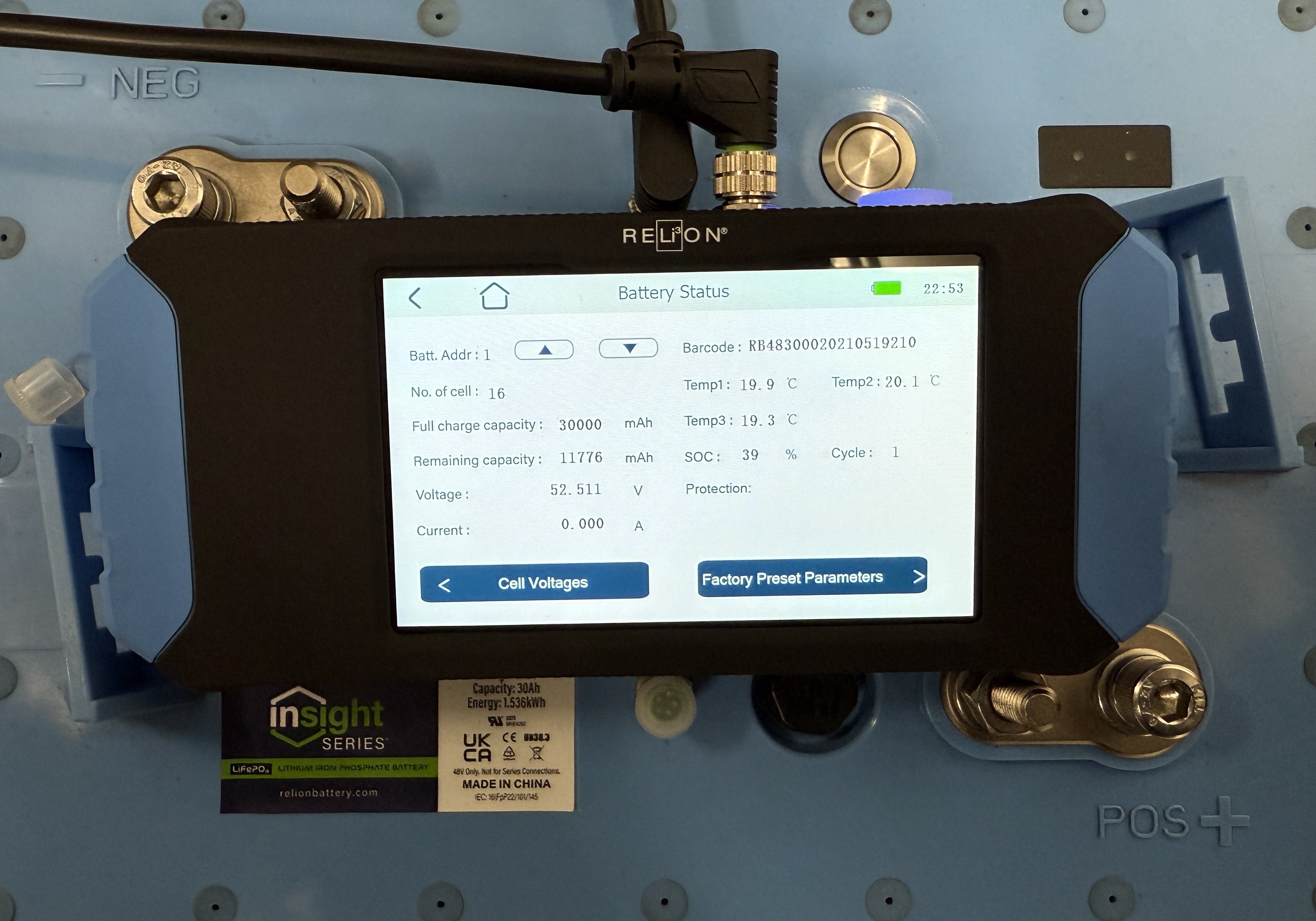

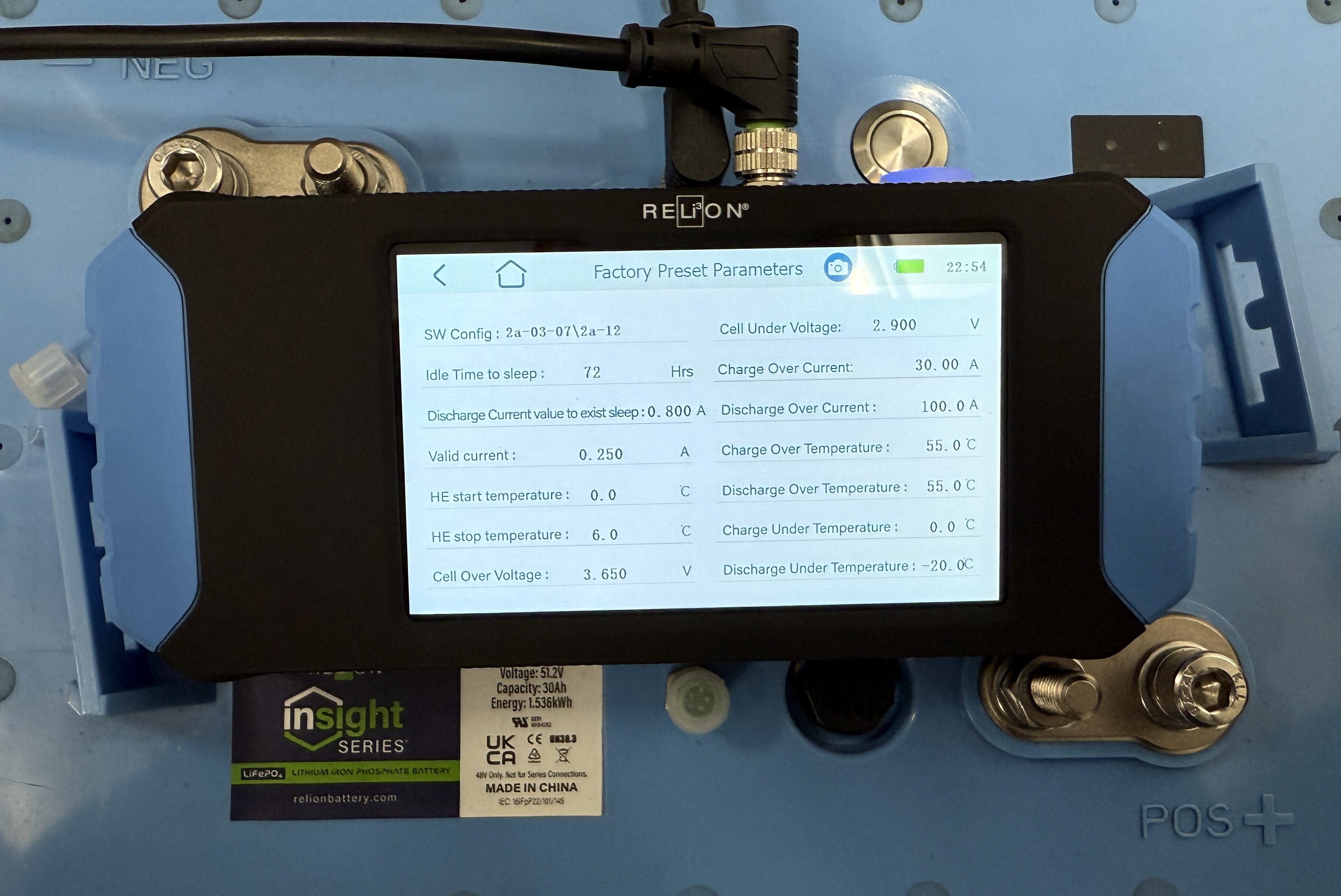

The last three pictures show the cell voltages and programmed settings of this battery as well as the actual usage this module has. The remaining capacity is how much charge the module has left, that will go up and down as you use it. The Full charge capacity is the SoH indicator, that will gradually go down over the years as capacity decreases.
Easy Installation
InSight batteries come in BCI group size GC2/GC8 allowing for easy installation without modifying trays or battery compartments.
Scalable System
InSight batteries offer freedom and flexibility by utilizing parallel connections, so you can scale your system to provide increased power and energy (up to 300Ah) as needed.
Super Smart BMS
The robust Battery Management System features a combined total of 48 charge and discharge MOFSETs that control current flow in and out of the battery, along with multilayer protective devices that prevent over/under voltage, current and temperature conditions. The multilayer protection allows InSight batteries to pass stringent UL safety standards.
Intelligent Cooling
InSight Series® uses a carefully engineered cooling management system to quickly remove heat from inside the battery during conditions of high discharge and recharge currents. This prevents overheating of critical components and extends the life of the battery.
Robust Communication
CANbus connections allow batteries to communicate real-time operating statistics like the voltage, current, state of charge and state of health, making InSight batteries more user friendly. Plus, all batteries feature a sleep and pulse recovery operation mode to conserve power.

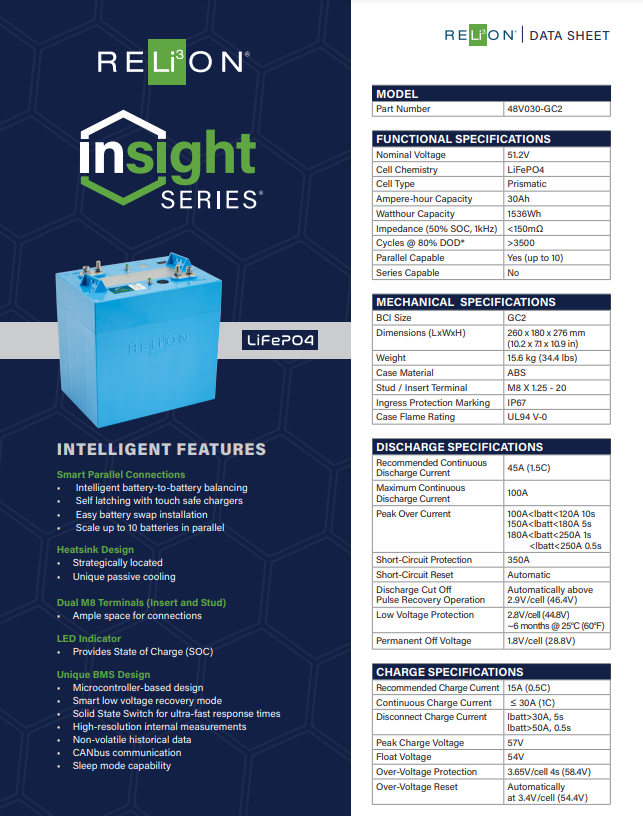

Specifications:
Nominal Module Energy: 1.5kWh
Nominal Cell Capacity: 30 Ah
Module Configuration: 16s
Max Module Voltage: 57V
Nominal Module Voltage: 51.2V
Min Module Voltage: 46.6V
Length: 10.2″
Width: 7.1″
Height: 10.9″
Weight: 34.4 lbs.
Nominal Discharge Current: 100A
Nominal Charge Current: 15A
