More Info:

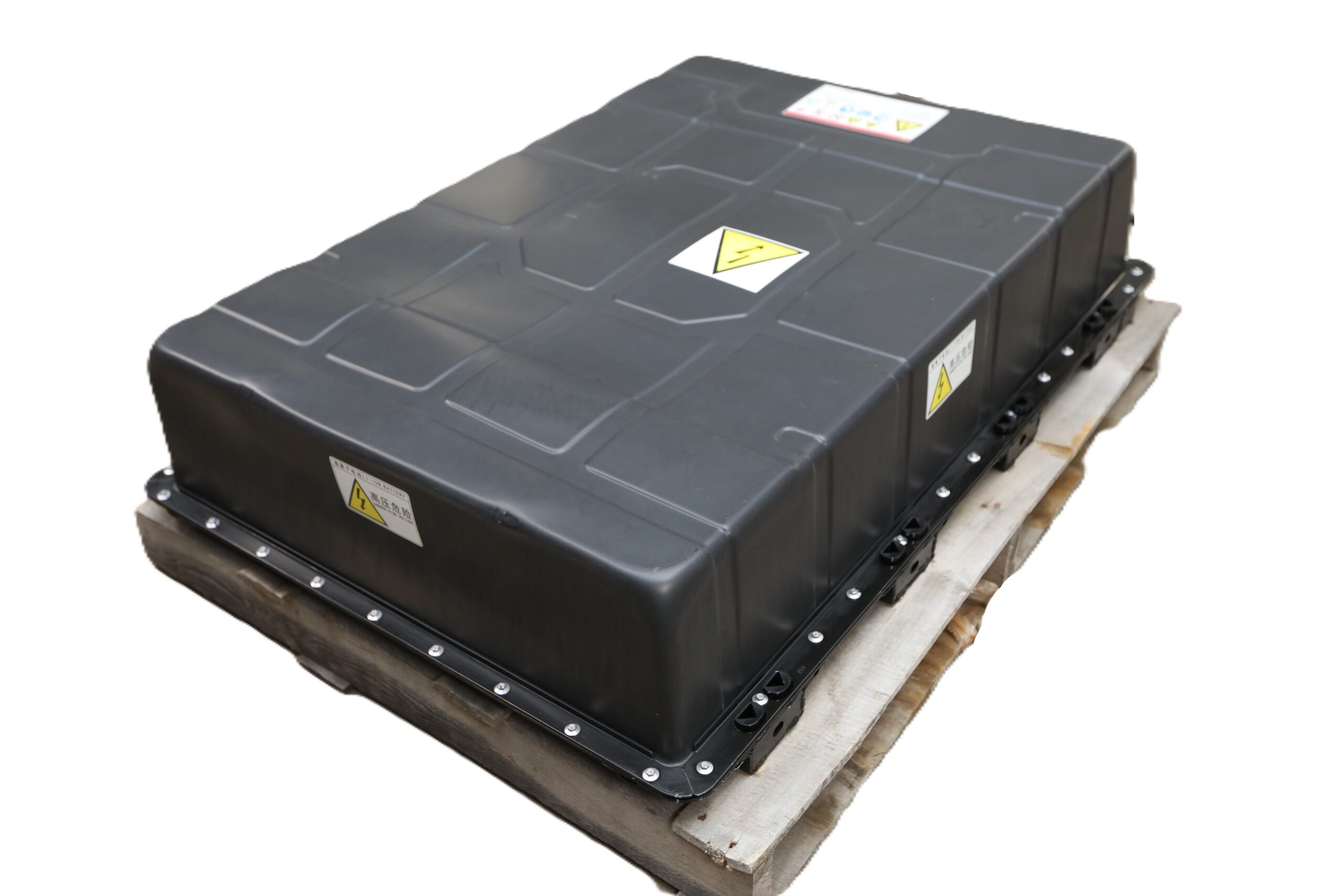

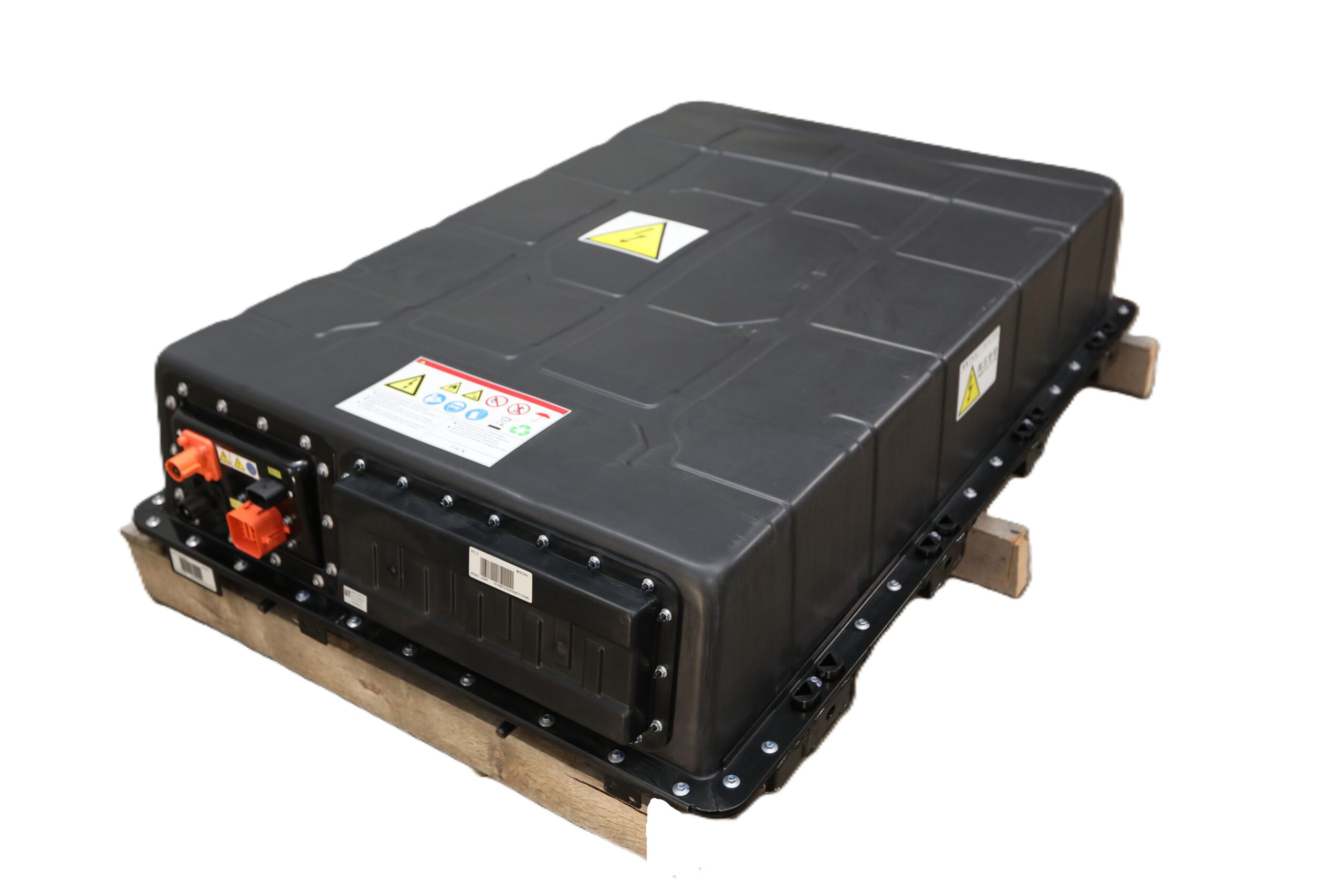

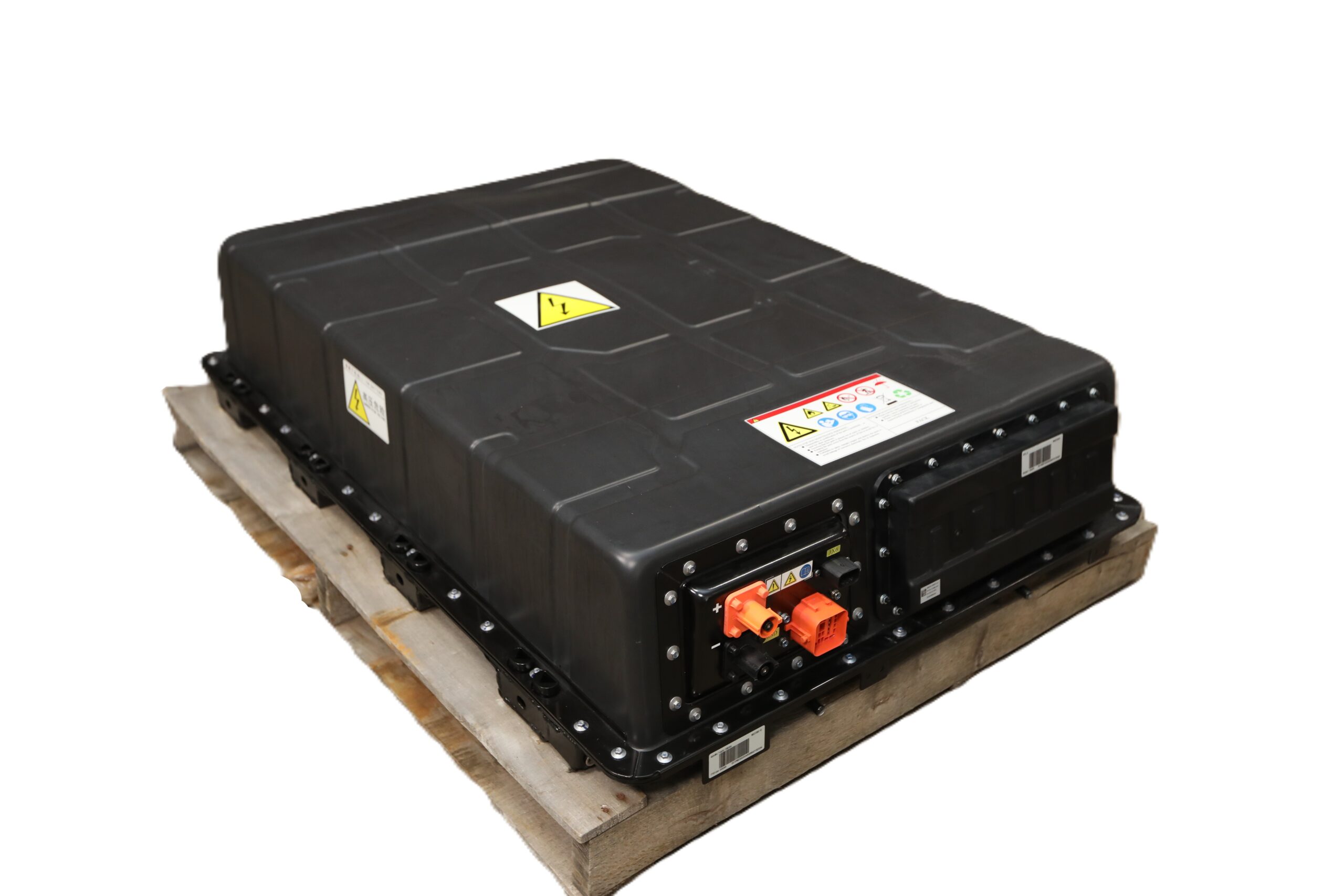

This battery pack is brand new that had damage to the shipping container during transport. Nothing is wrong with the battery or case. Looks in perfect condition. LFP chemistry.

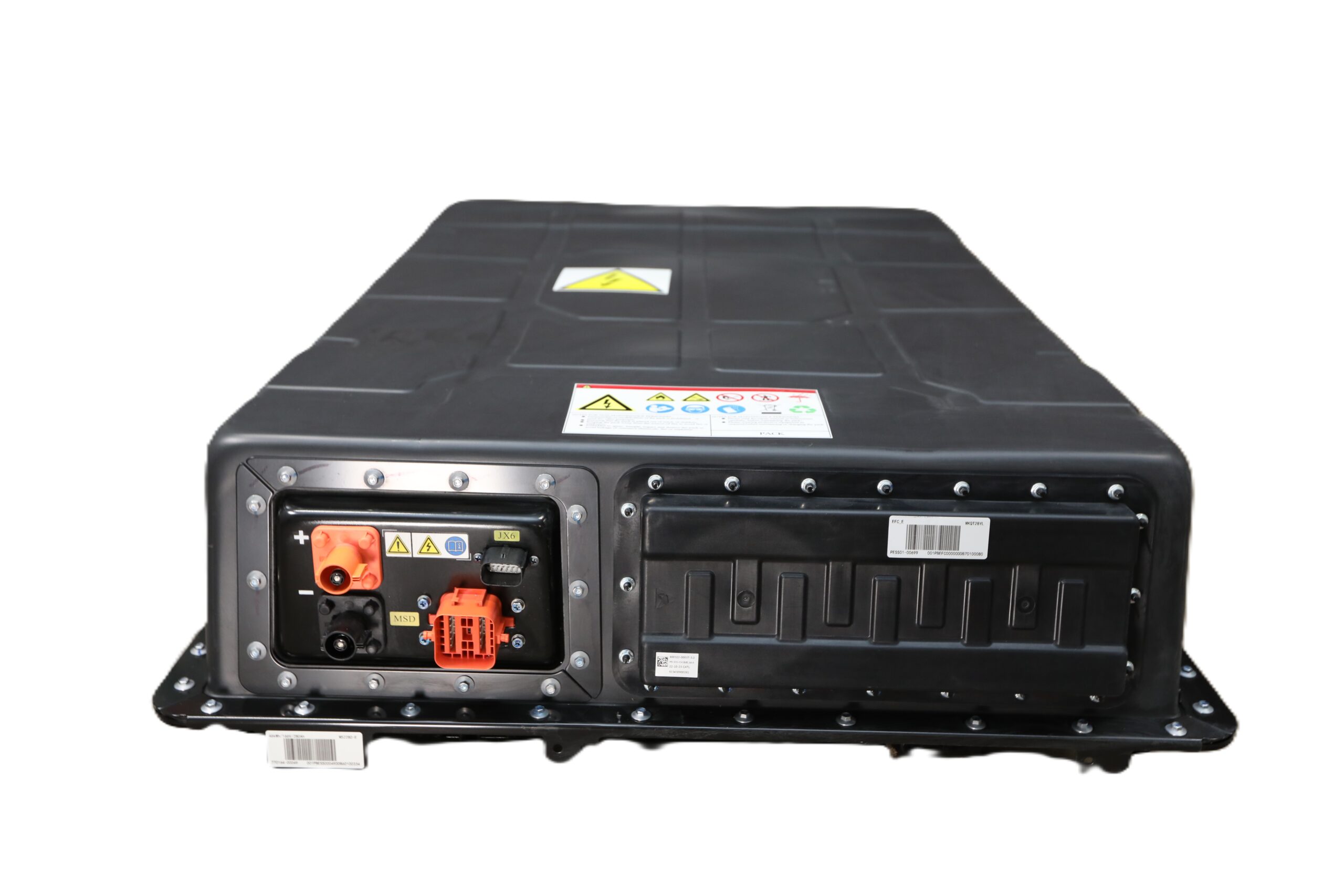

The lid has a sponge gasket that allows for easily removing the lid and putting it back on. The modules are glued down, we do not recommend you try to remove the modules. The bottom plate has coolant ports, so leaving them glued down would help with cooling.

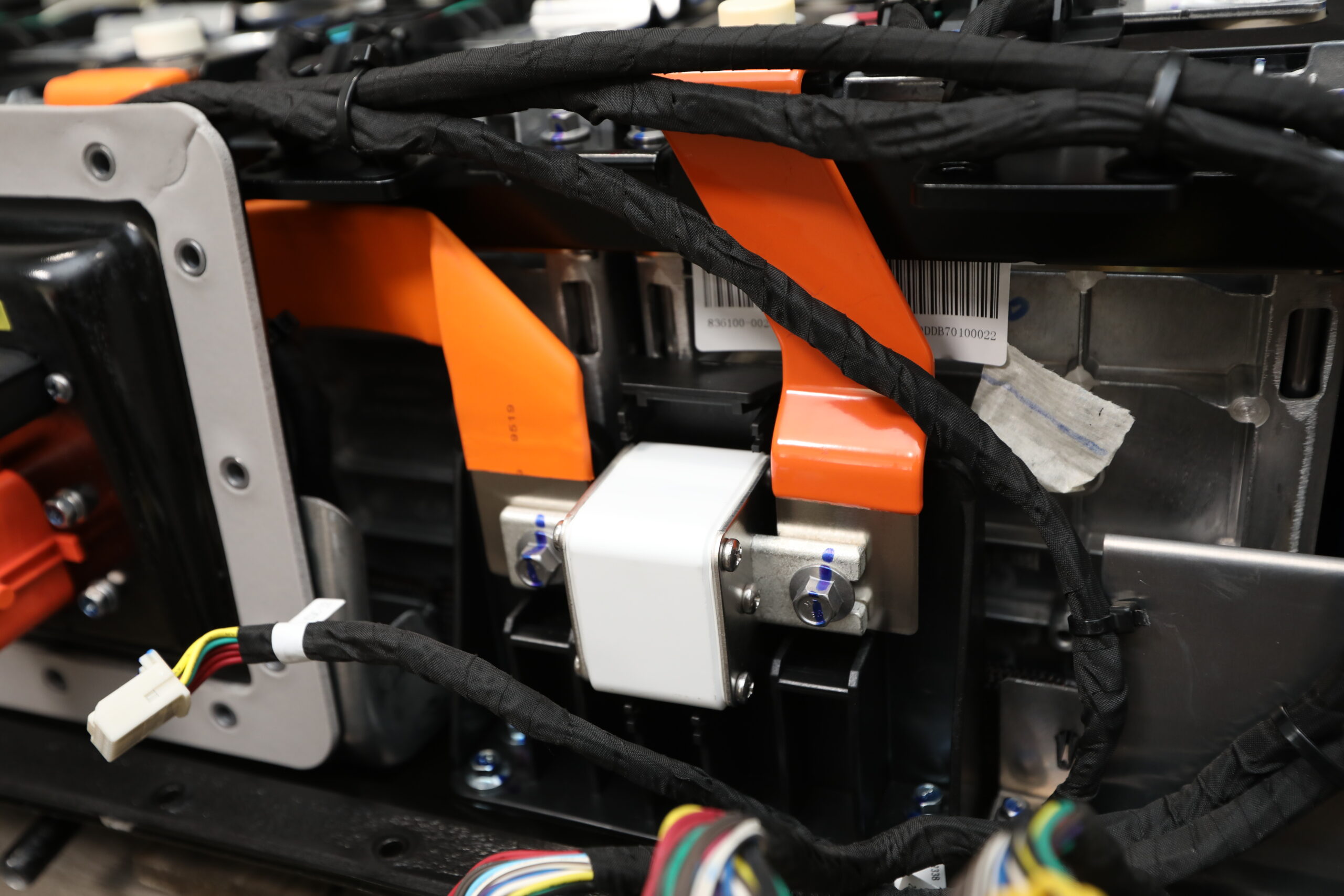

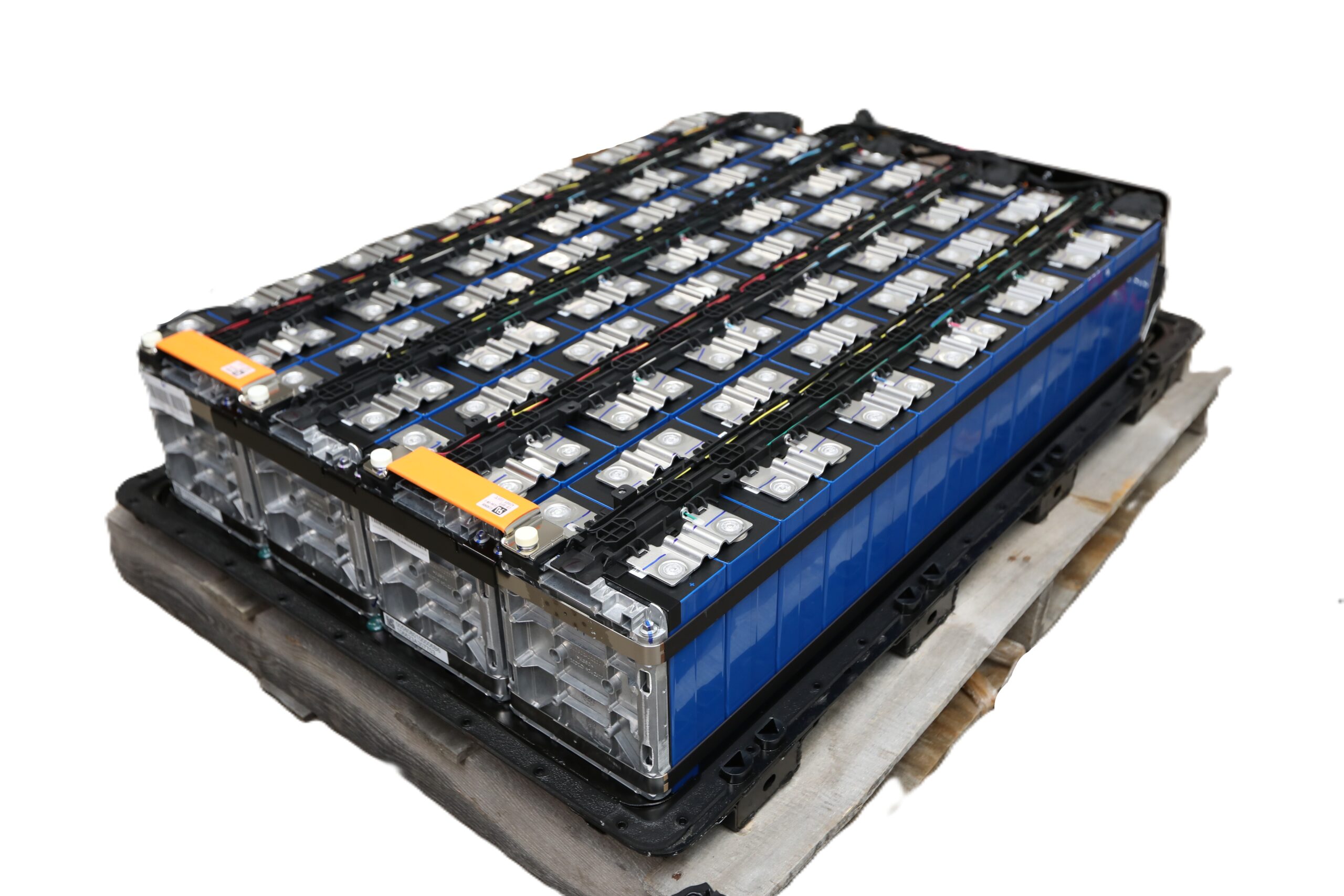

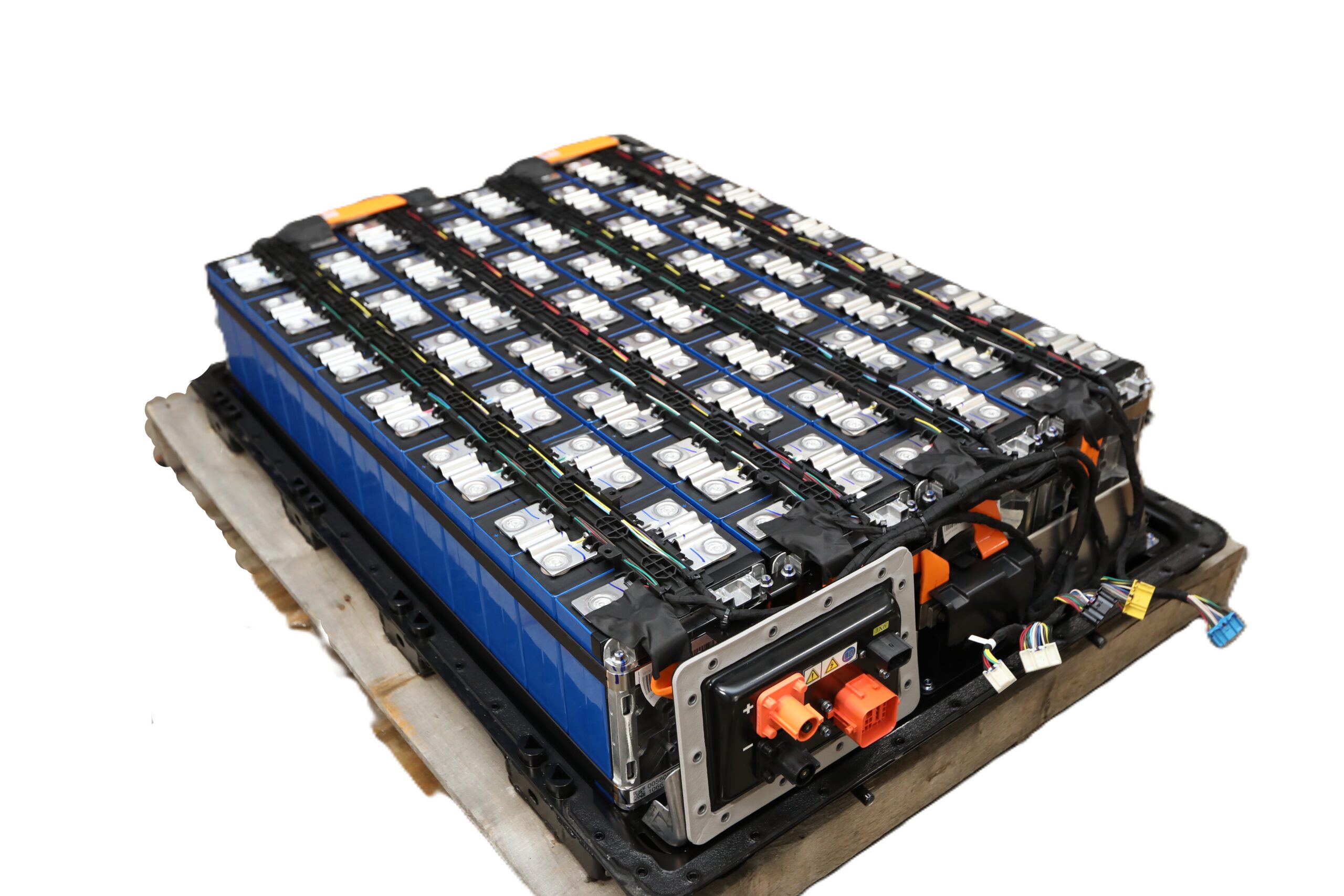

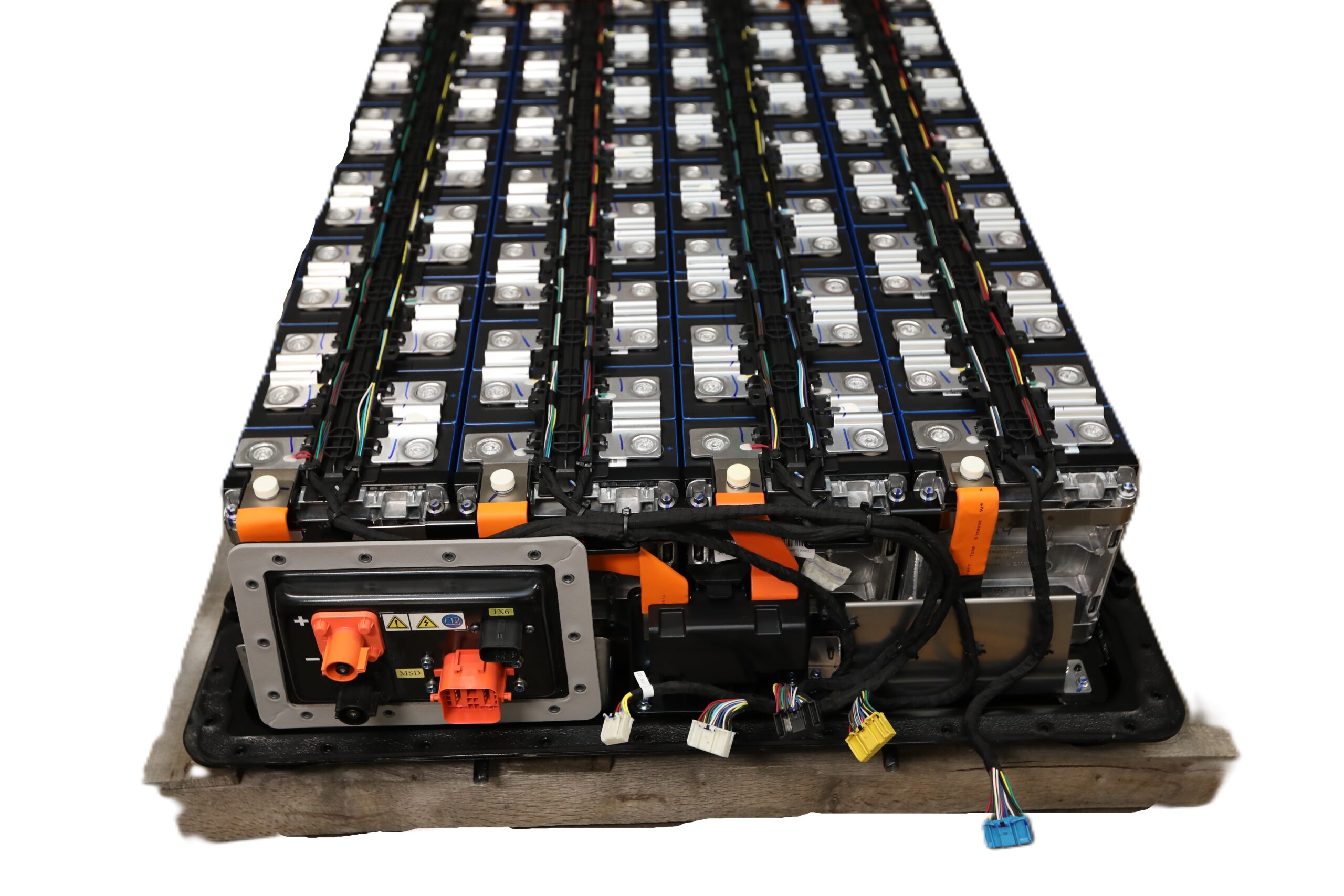

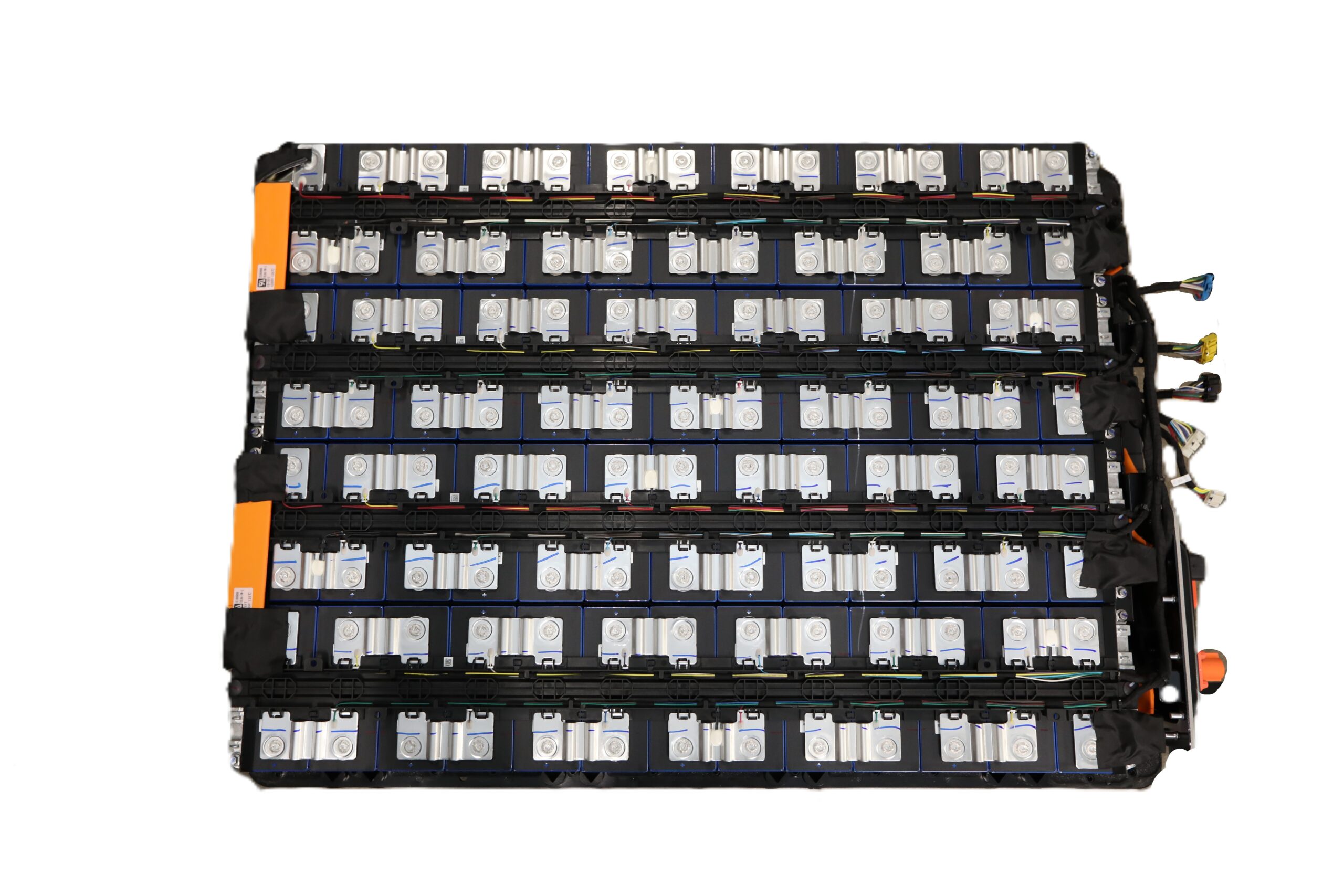

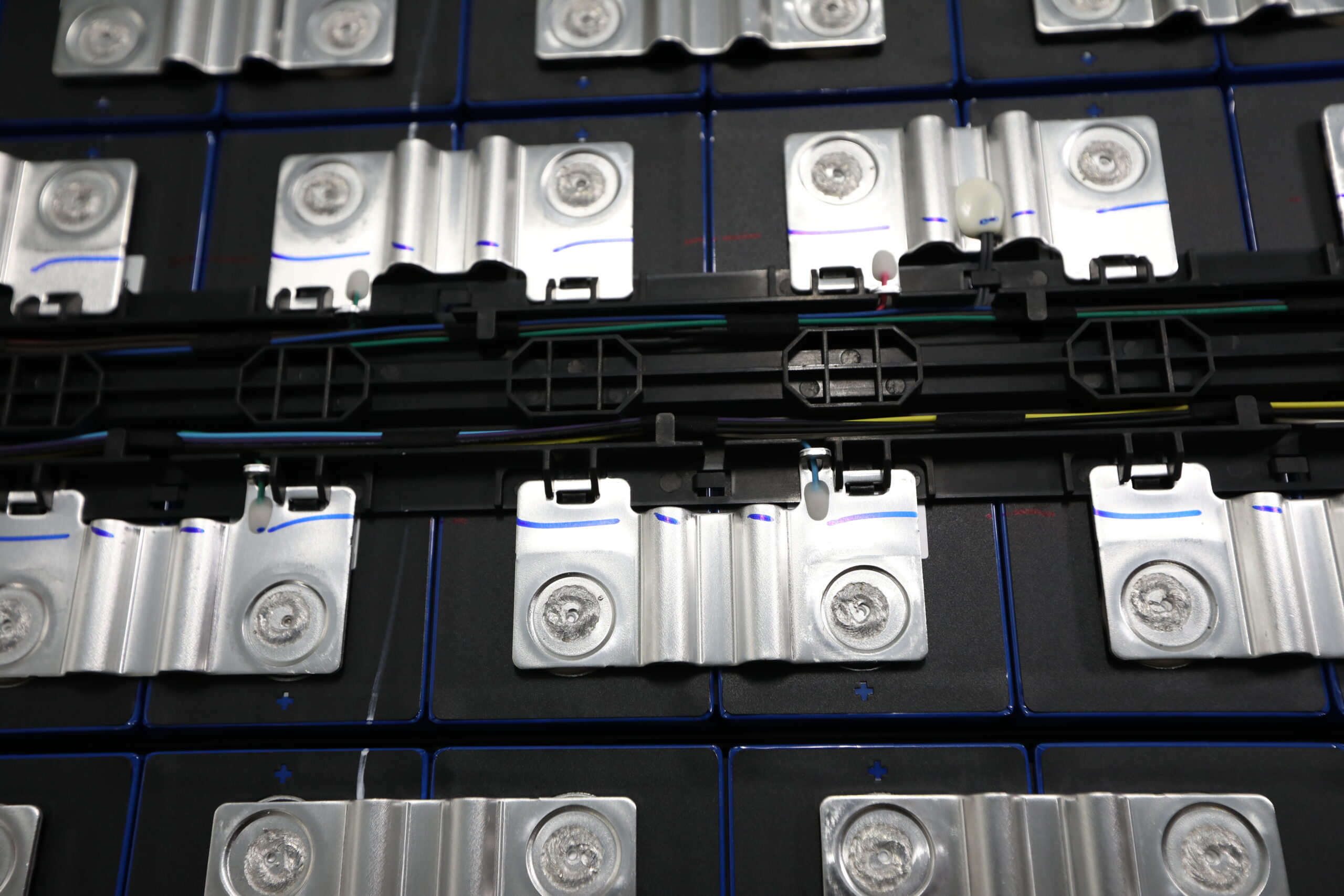

There are four modules inside this pack, each with 13 cells in series, a total of 52 cells. The cells inside the four modules are laser welded, but the four modules are connected with removable busbars. The BMS is proprietary and we have not had any luck with communication, it would be better to replace it with your own anyway because it does not have contactor control, current sensors, or any of the other things needed for safe use. All of that was located in the main assembly that is not available to us.
Shipping will need to be freight due to the pack size. We can ship this pack to one of our locations for no more than $250, or ship to a commercial address or freight hub near you for $350. Residential freight delivery is possible for an additional charge, contact us for a quote.
Cell info Module Info
Nominal Capacity: 280 Ah 13S1P
Nominal Voltage: 3.2V Nominal Capacity: 280Ah
Minimum Voltage: 2.5V Nominal Voltage: 41.6V
Maximum Voltage: 3.65v Voltage Range: 32.5V-47.45V
Pack info
52S1P Length: 45in
Nominal Capacity: 280 Ah Width: 32in
Nominal Voltage: 166.4V Height: 10in
Voltage Range: 130V-189.8V Weight: 715lb
