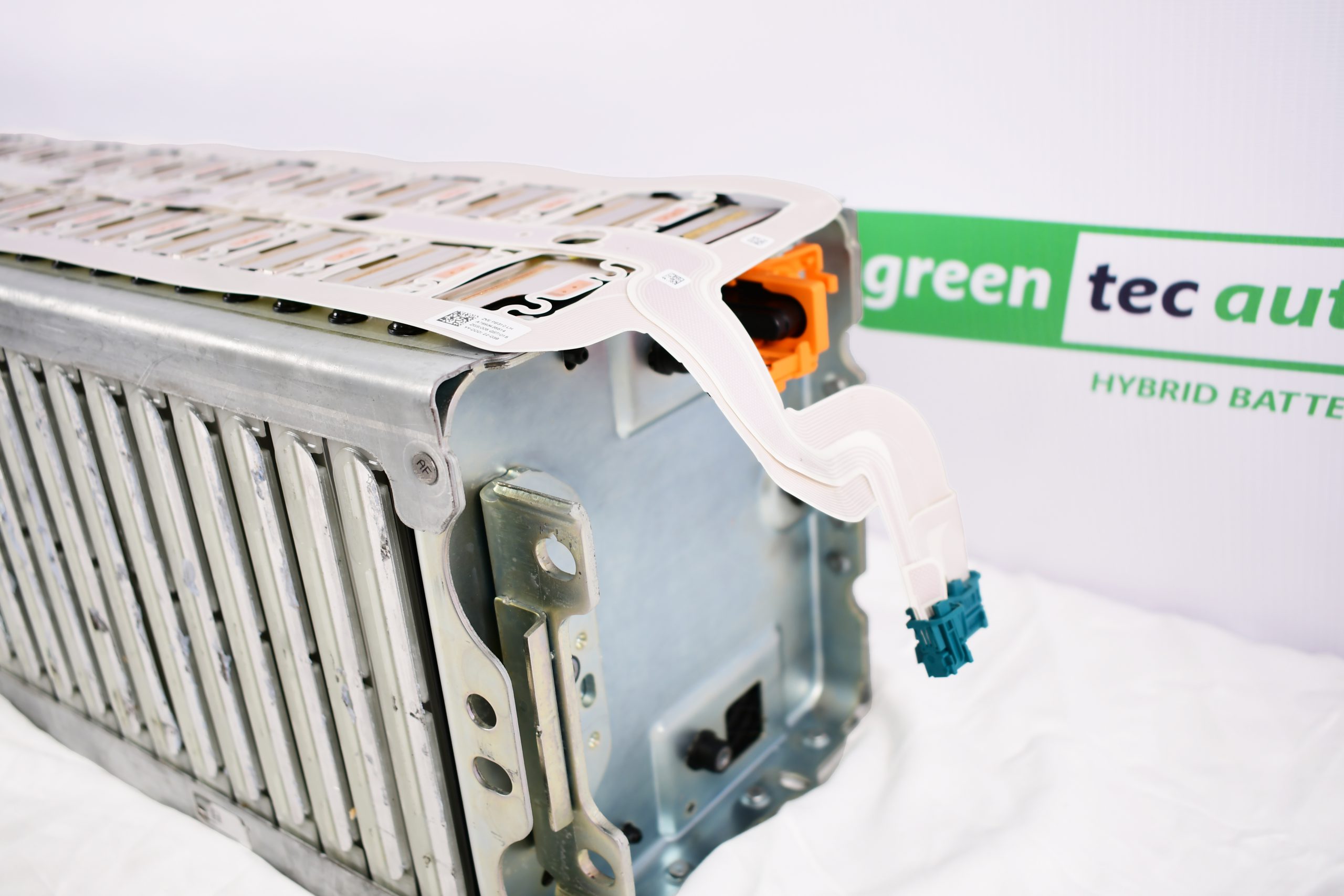

These modules have hardly any miles driven, so they as brand new as it gets. Vehicle isn’t even for sale yet. The ribbon cable is voltage outputs and temperature sensors, but it is pretty easy to access the cell tabs to add your own wiring.
Orange terminal – Main Positive
Black terminal – Main Negative
Main Terminals located on opposite sides of Module
Black plastic terminal cover included.
Module Specifications:
Nominal Module Energy: 16.5 kWh
Nominal Cell Capacity: 178Ah
Max Module Voltage: 102.5V
Nominal Module Voltage: 90V
Min Module Voltage: 75V
***There are 25 cells in series in each module.
Cell Specifications:
Max Cell Voltage: 4.1V
Nominal Cell Voltage: 3.6V
Min Cell Voltage: 3V
Peak current: 500A
Nominal Current: 350A
Peak Charge current: 375A
Dimensions:
Length: 27 inch
Width: 8.5 inch
Height: 7.25 inch
Weight: 102lb
Shipping: Freight Shipping to commercial address or freight terminal – $250
You can pick up at one of our locations if you need, but Shipping may take up to 14 days due to size.
