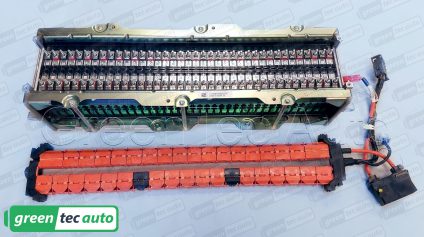

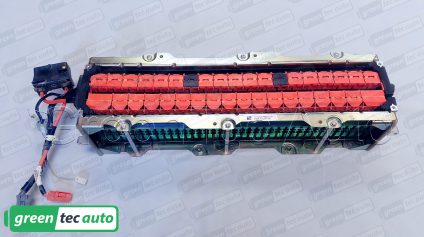

2015 Ford C-Max Battery 5.5Ah Tested Cells

$320.00

Battery came out of a 2015 Ford C-Max. Slightly used, Tested and in good condition.
Tested at 5.5Ah from 4.2V to 2.75V.
100A continuous discharge. Includes Bus Bars. May not look exactly like the picture, but will be Ford OEM.

Unlimited Mileage Warranty: 1 Month

MODULE SPECIFICATIONS

Number of cells 38
Construction 38 in-series
Length 25″
Width 7 1/2″ (120mm)
Height 5 1/8″ (85 mm)
Weight 33 lbs

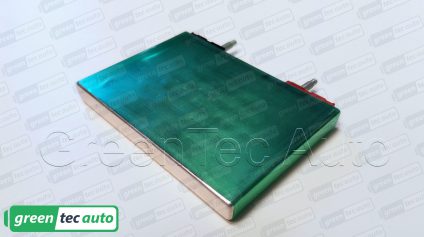

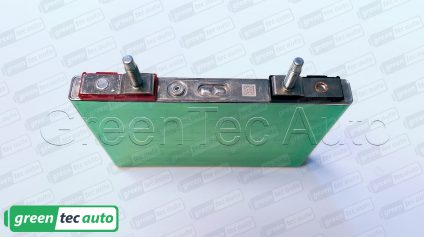

CELL SPECIFICATIONS

Cathode material Lithium Ion Manganese Oxide, LiMn2O4
Anode material Hard Carbon
Average voltage 3.7VDC
Maximum Voltage 4.2VDC
Minimum Voltage 2.75VDC
Terminal Thread M5 0.8
Amp Hour 5.5 Ah
Peak current 150A
Continuous current 100A
Length 4 3/4″ (120mm)
Width 1/2″ (13mm)
Height without terminals 3 3/8″ (85 mm)
Height with terminals 4 3/16″ (106mm)
Weight 9 oz
