More Info:

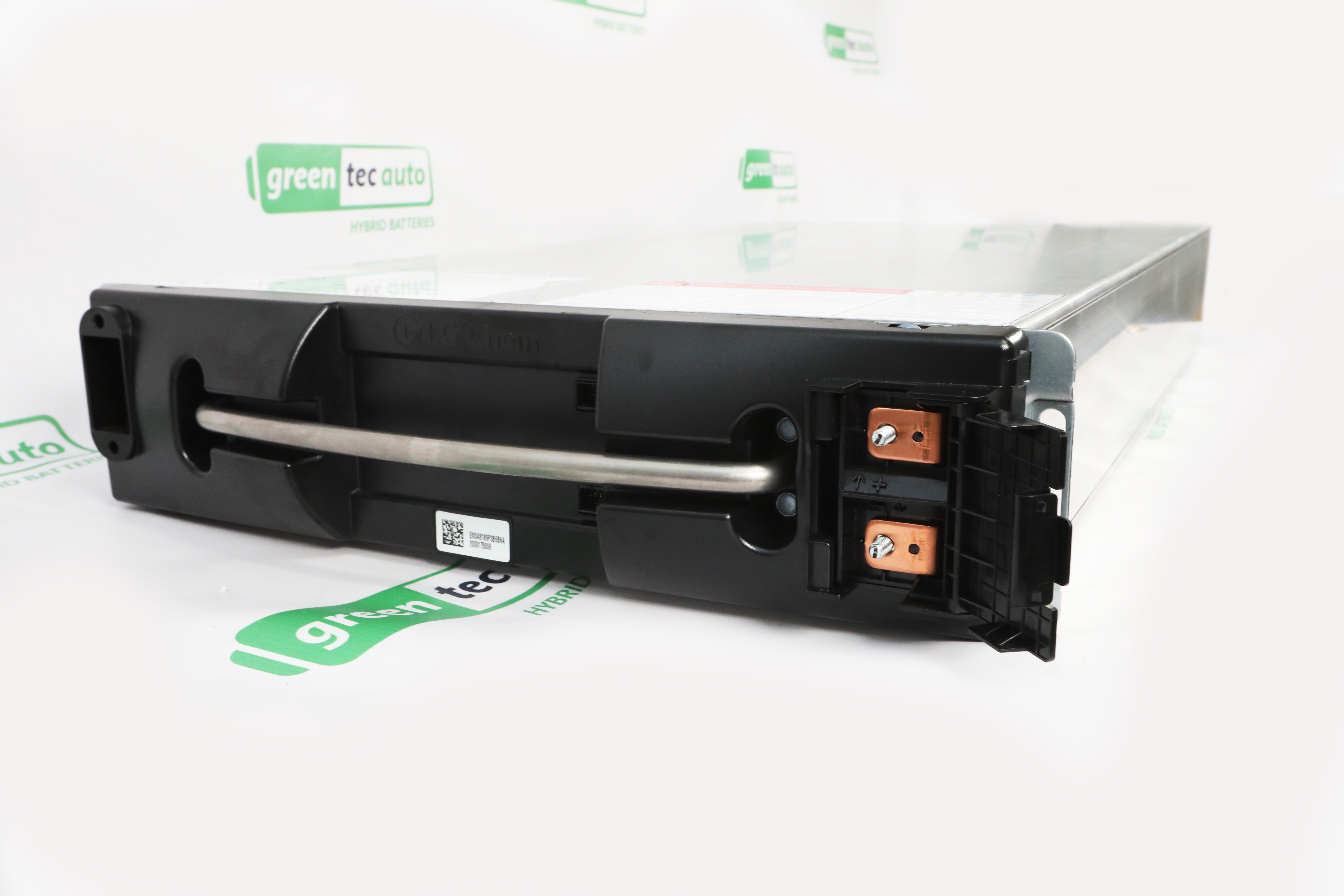

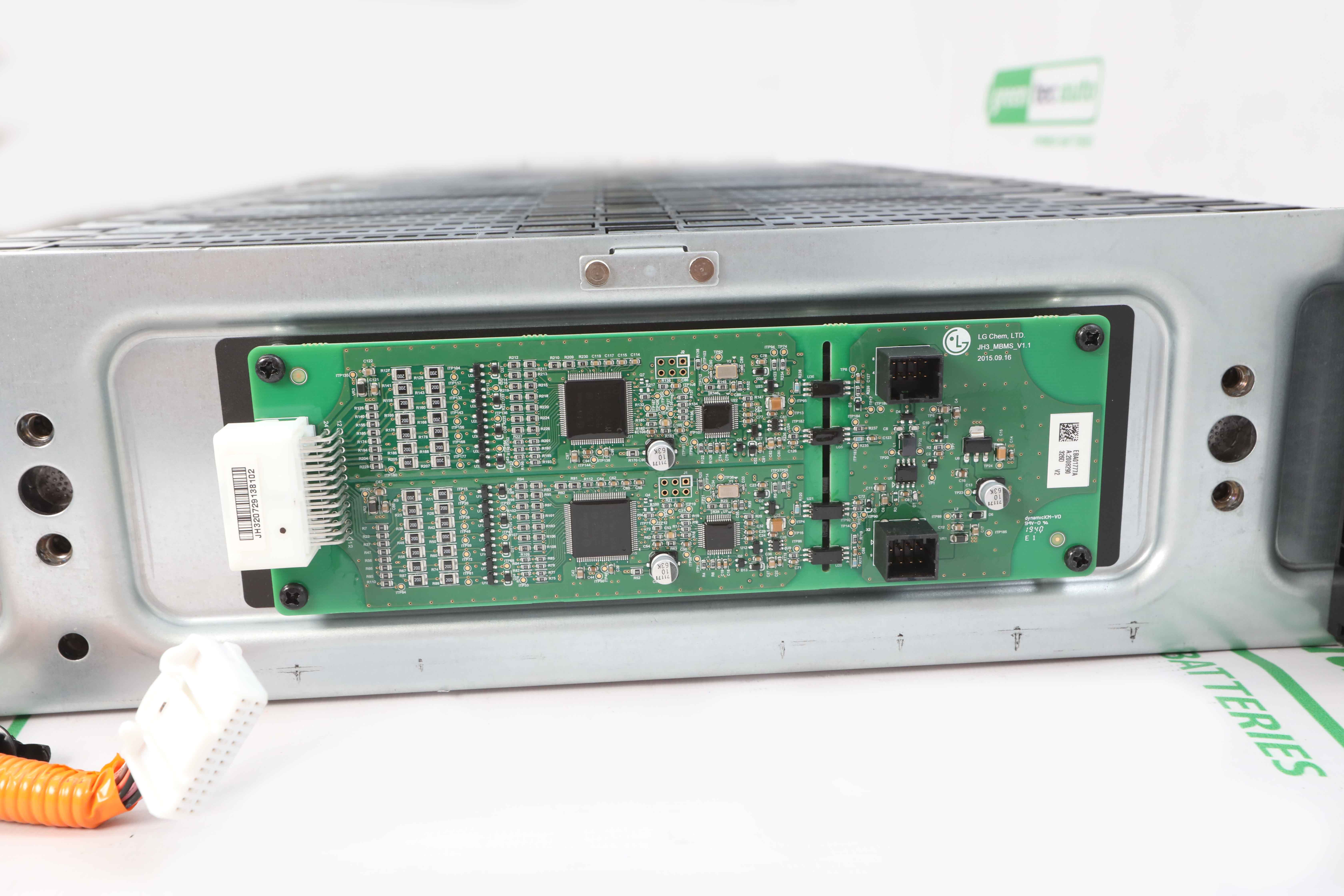

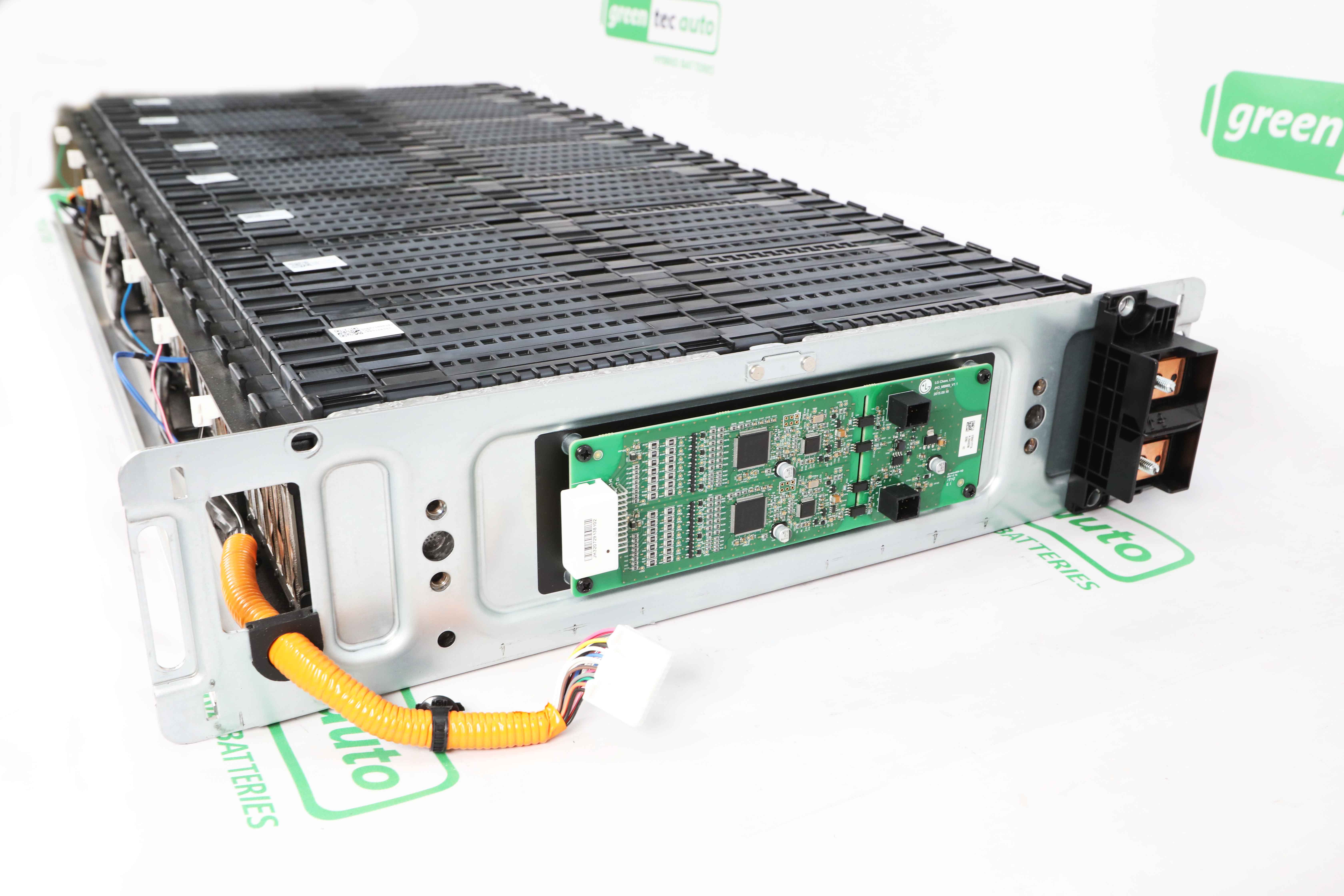

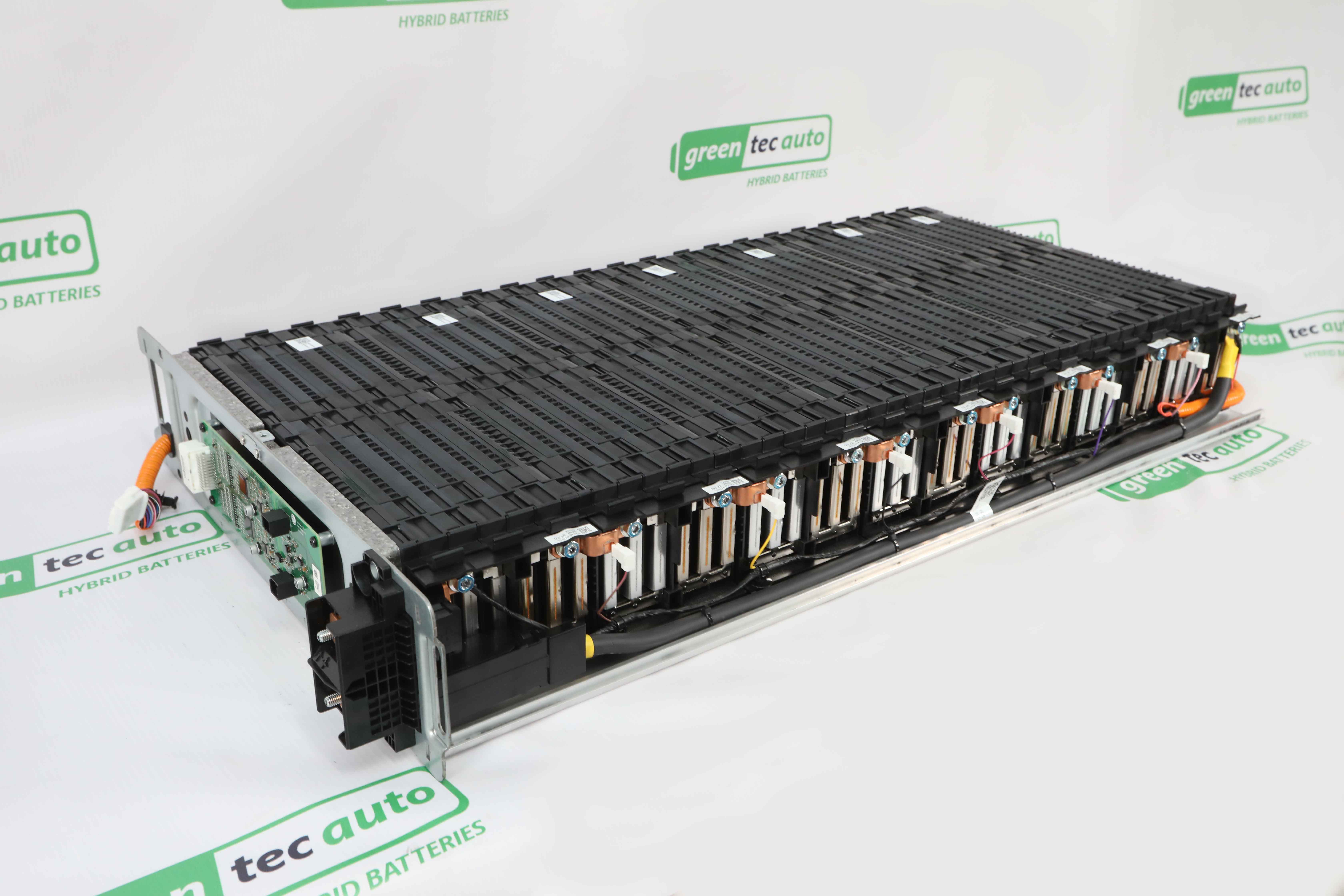

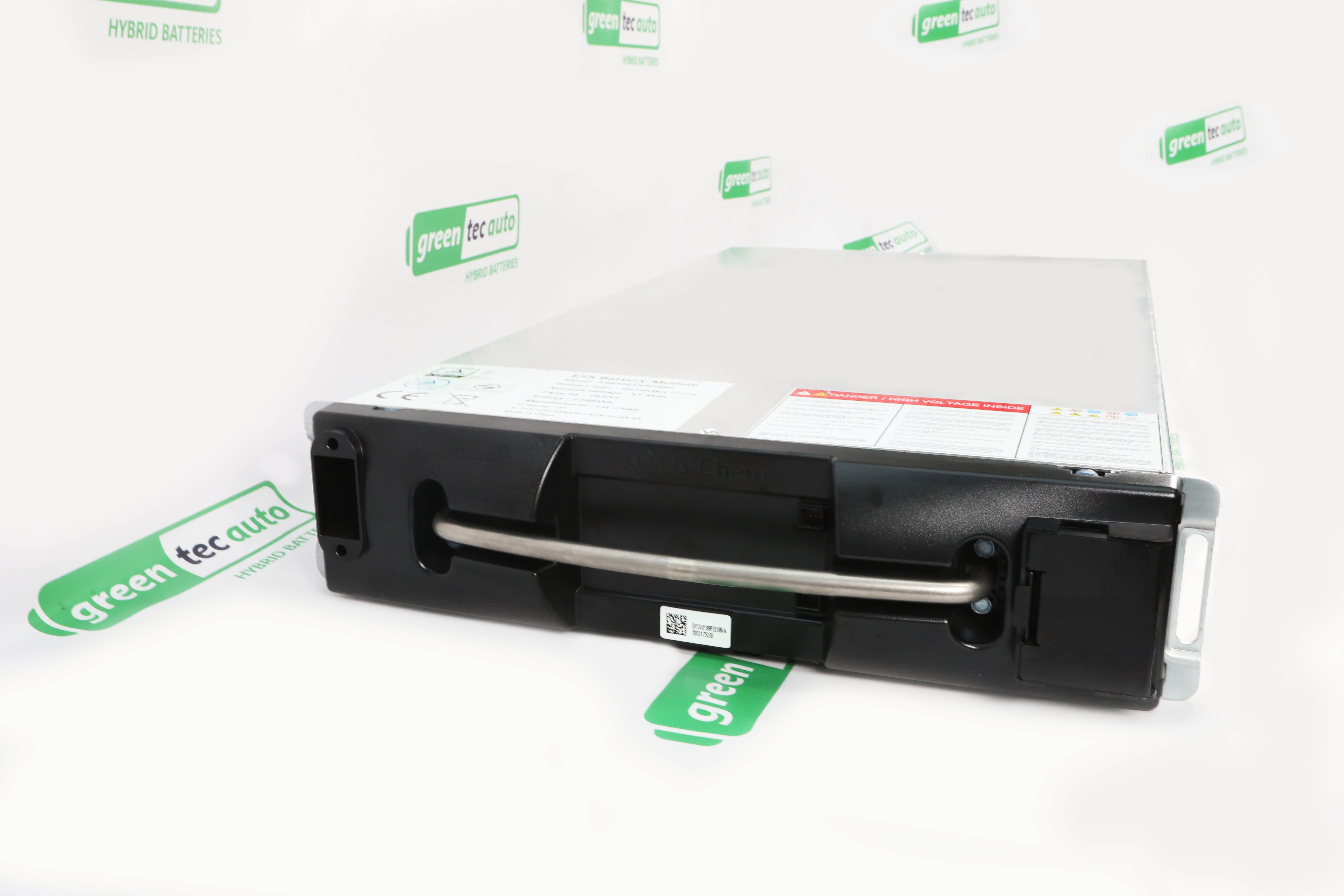

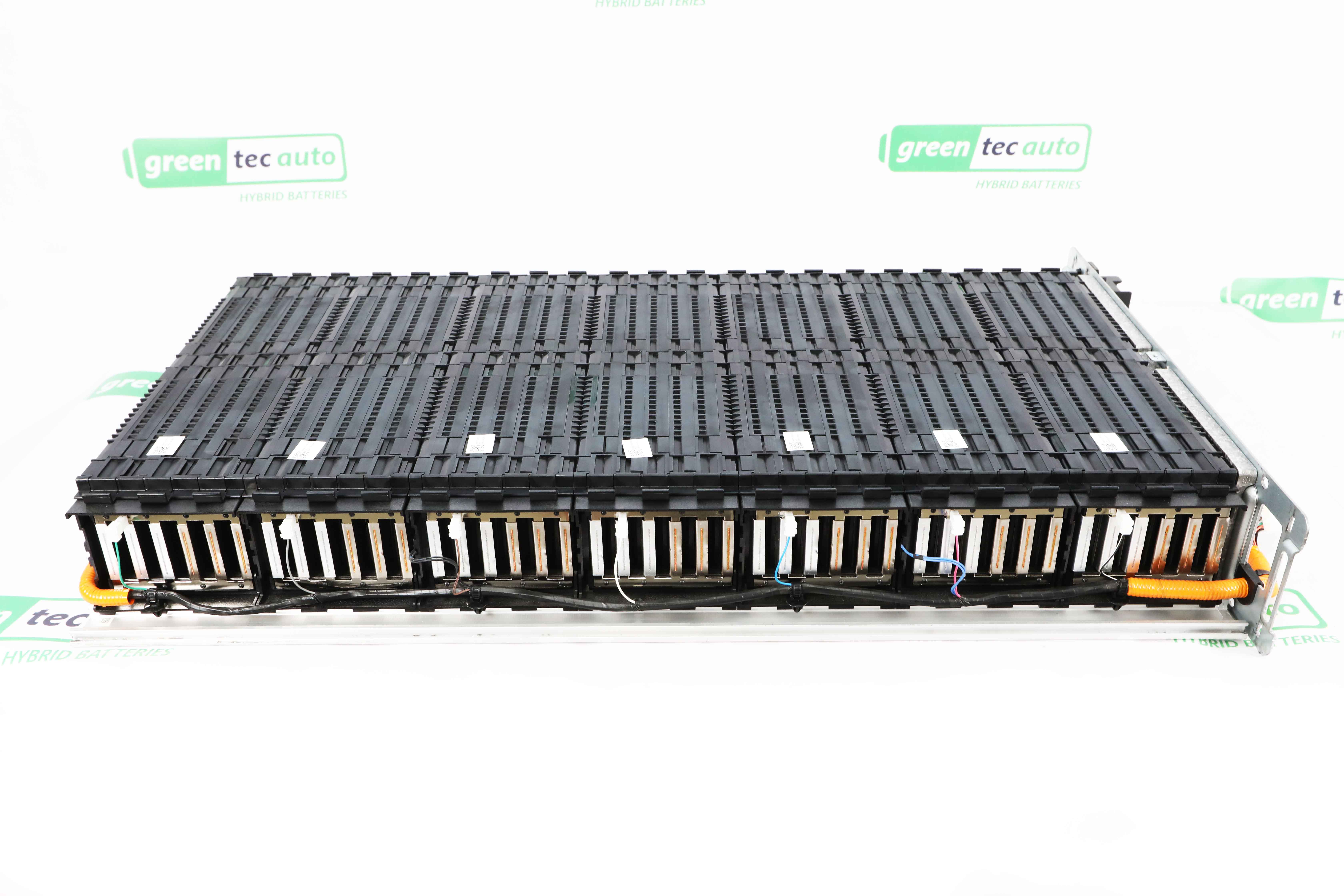

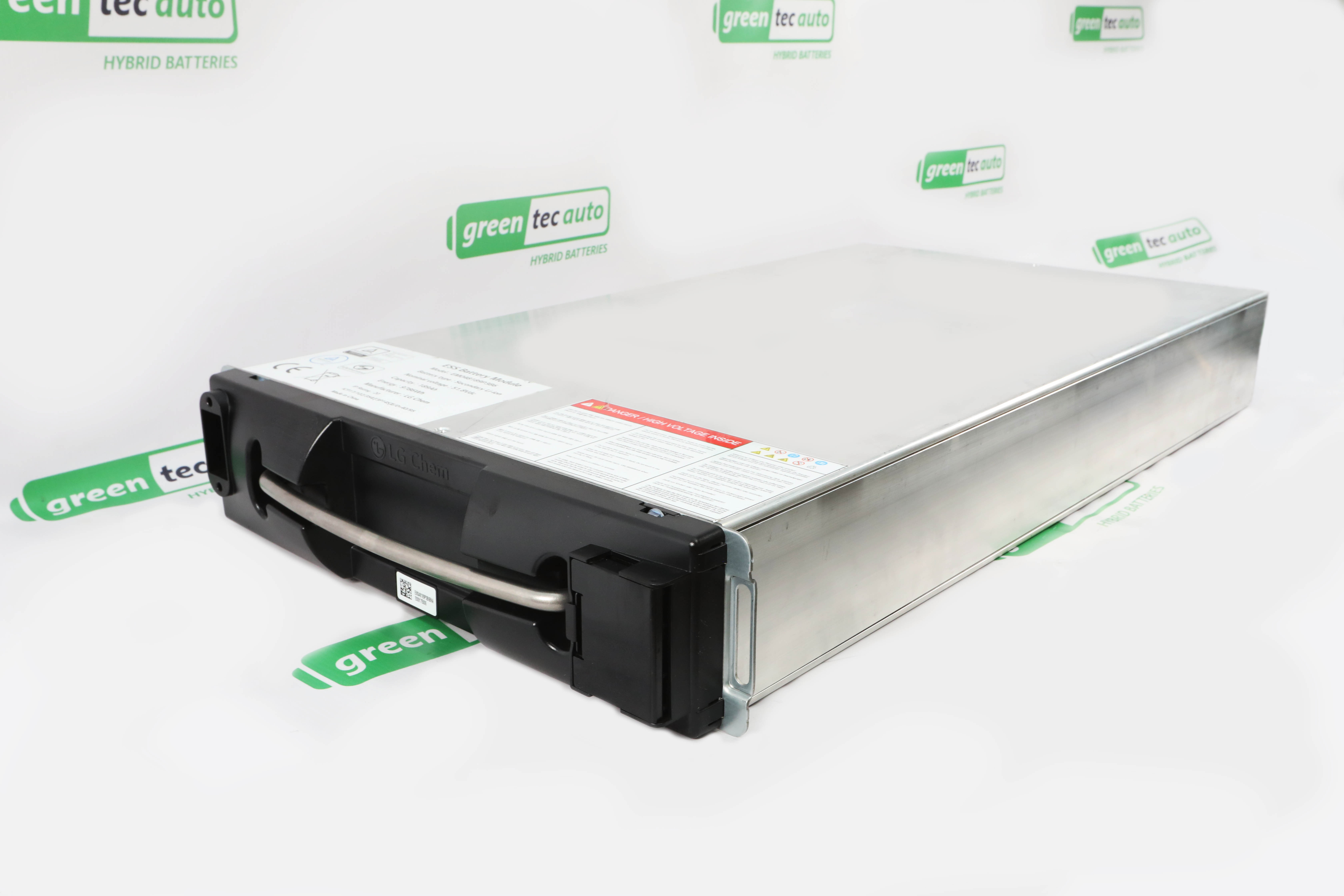

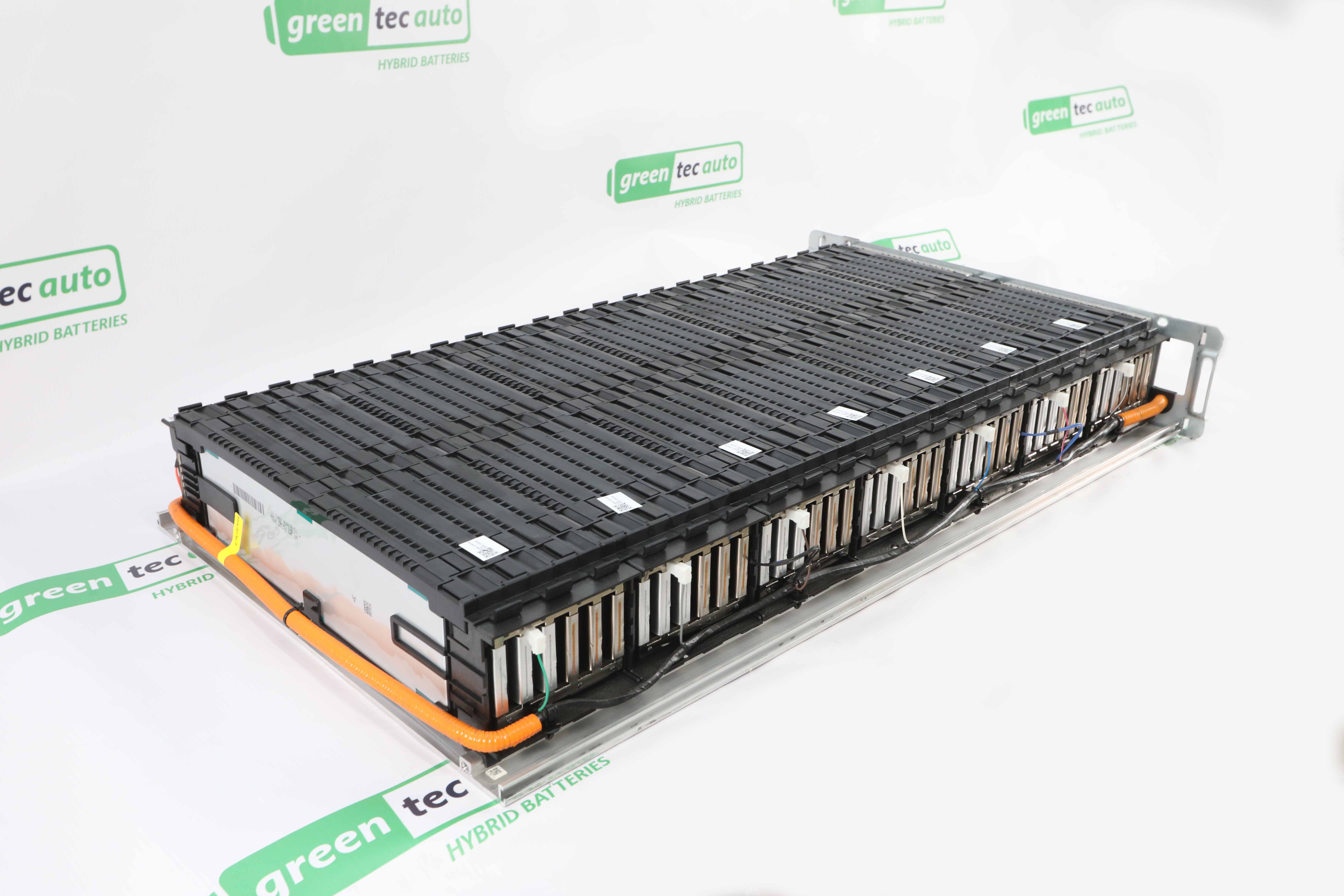

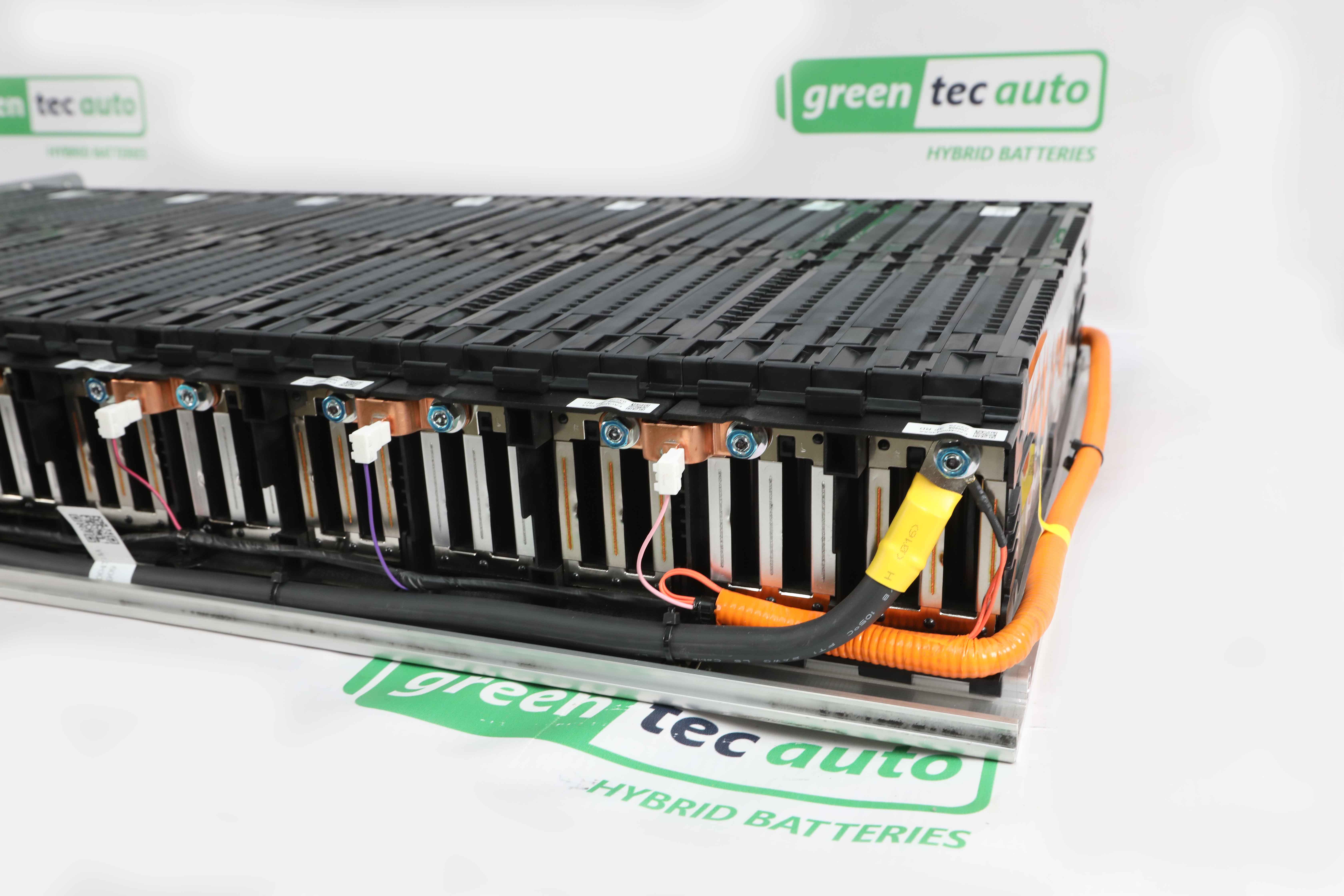

This is a server rack mount LG ESS module. We have approximately 150 of these so if you are looking for a large 48V system, these are a good candidate to parallel together. The BMS wiring is shown in the pictures, very easy to either modify for your BMS or replace completely with a new harness. The pack is made of modules that are 2S3P. There are 7 of those modules in series to get 14S3P, making it a exceptional 48V battery bank. If you needed fewer cells in series, the modules come apart quite easily, there is no glue or epoxy holding the cells down, just long bolts.

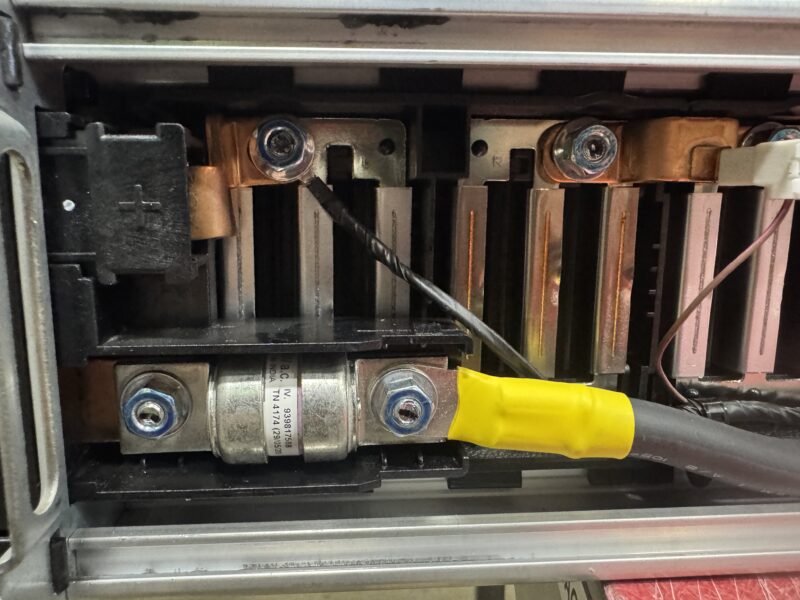

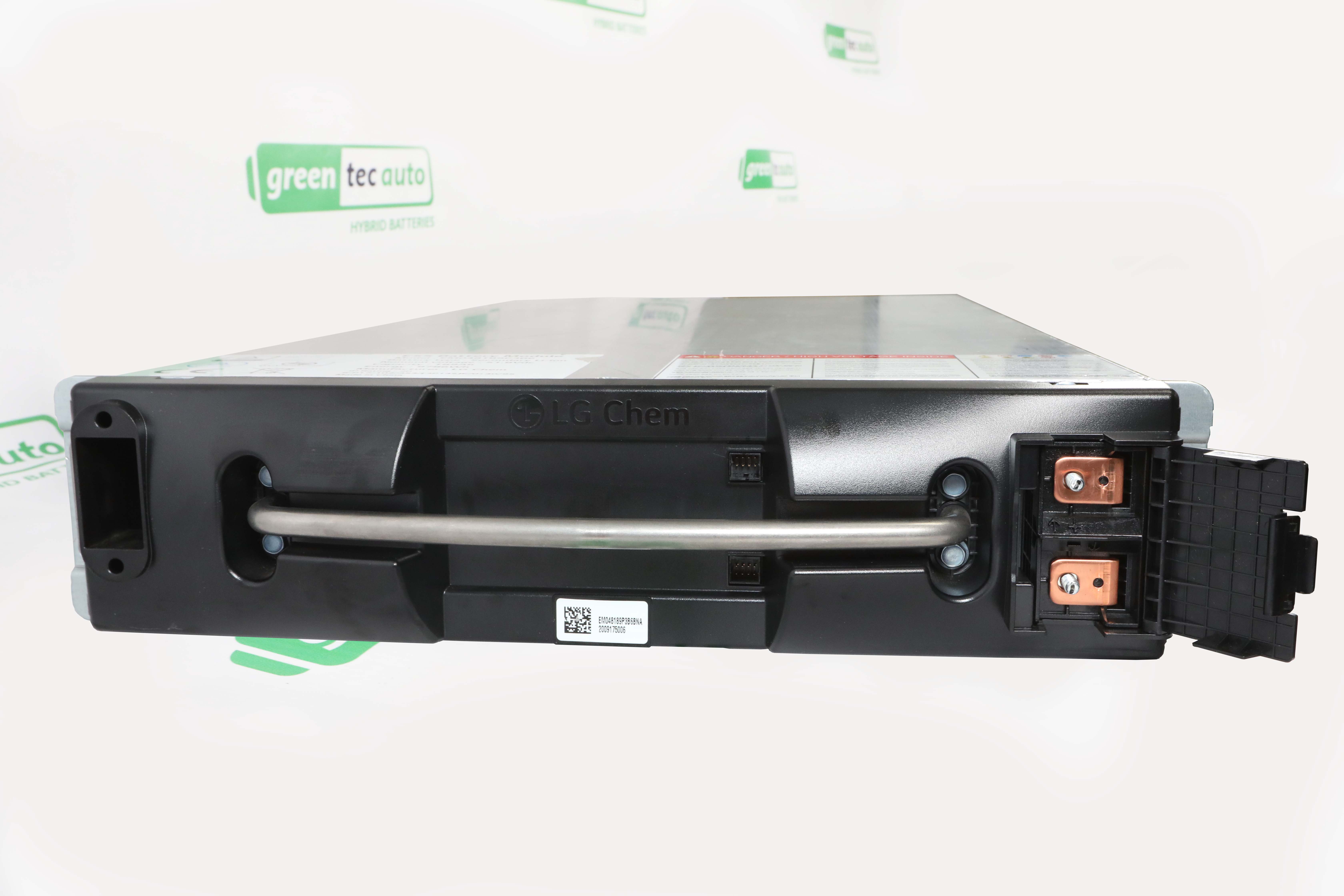

There is a fuse installed behind the terminals, it is rated for XXX amps.

Shipping will need to be freight due to the pack size. We can ship this pack to one of our locations for local pick up for $250, or ship to a commercial address or freight hub near you for $350. Shipping cost is for up to 12 modules. Residential freight delivery is possible for an additional charge, contact us for a quote.

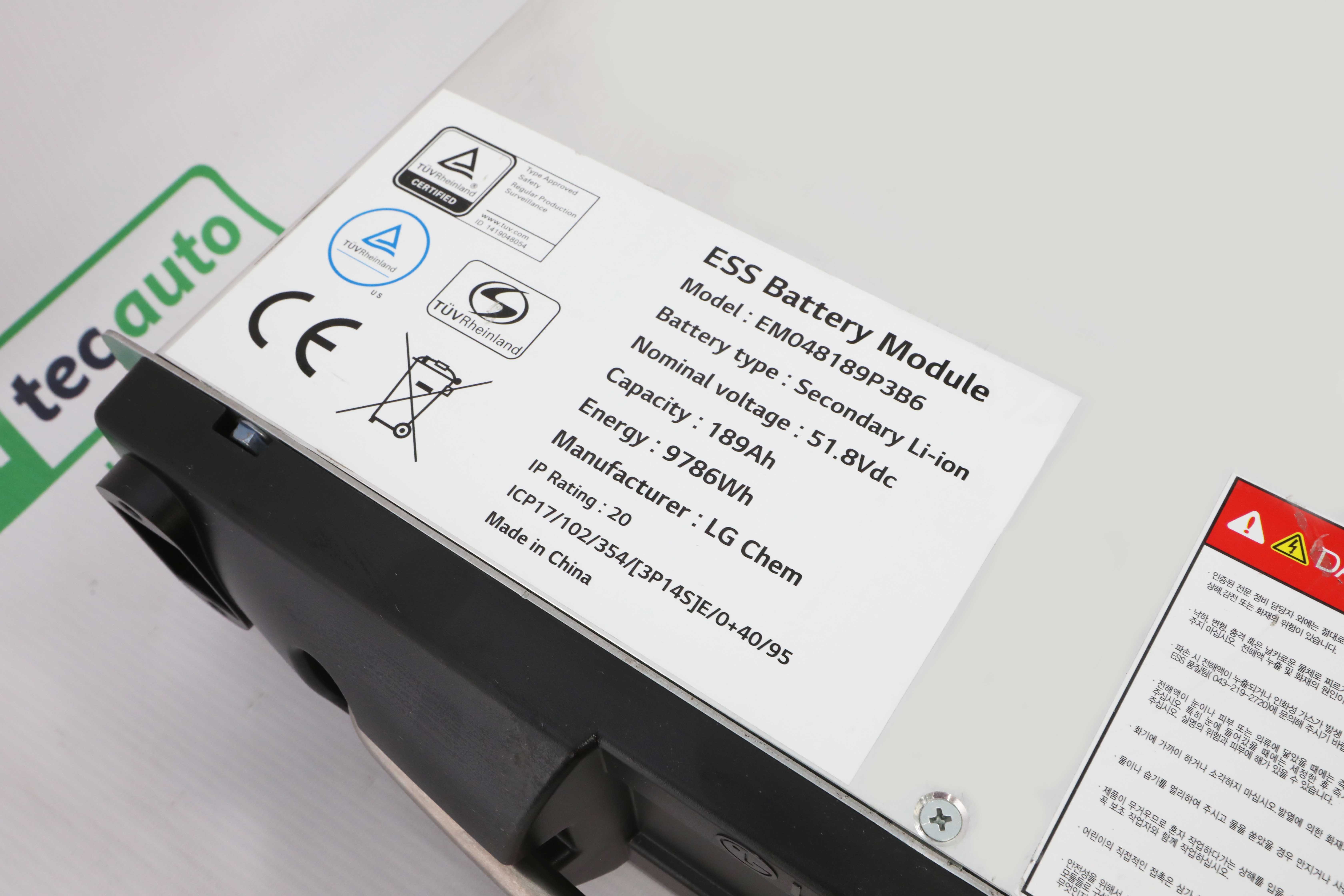

Module Info

Configuration: 14S3P

Max Voltage: 58.8V

Nominal Voltage: 51.8V

Minimum Voltage: 42V

Continuous Discharge: 66A

Continuous Charge: 66A



Cell Info

Max Voltage: 4.2V

Nominal Voltage: 3.7V

Minimum Voltage: 3V

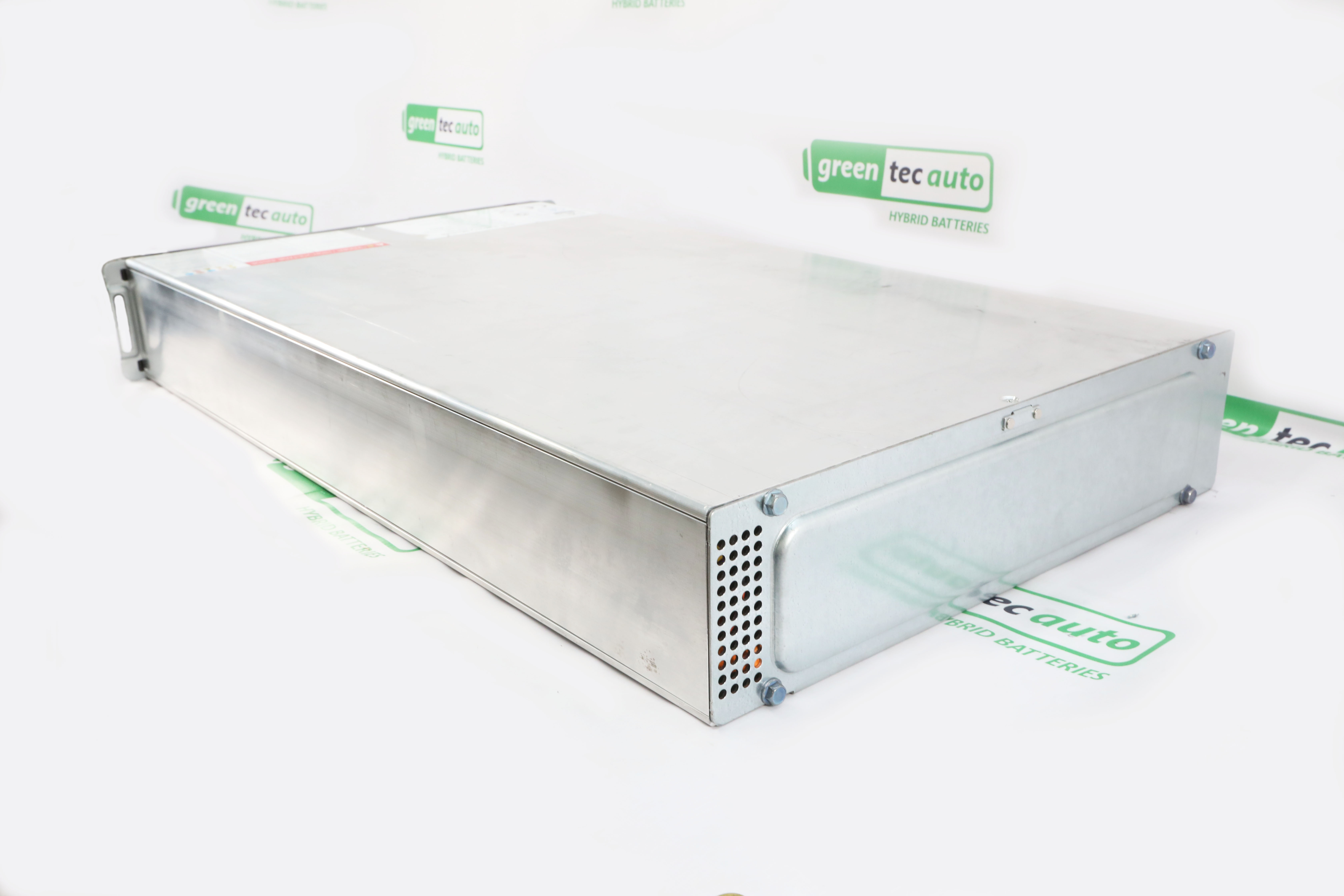

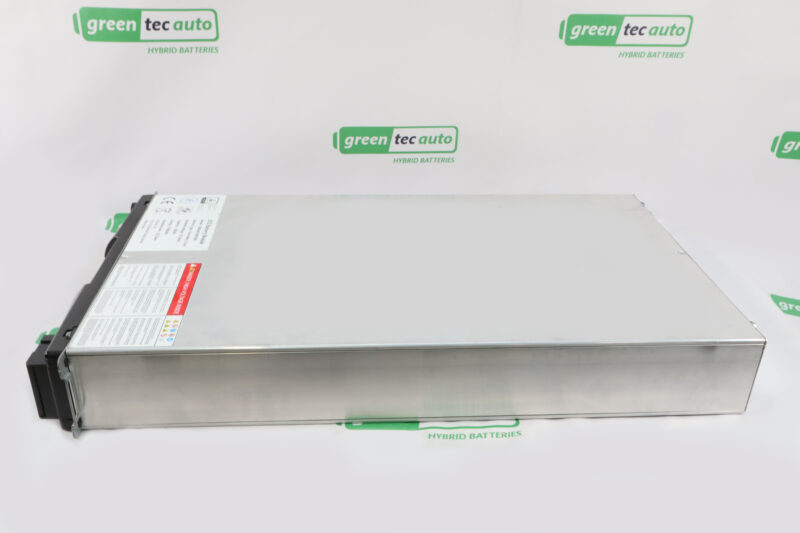

Module Size

Length to Mounting Point: 32 inches

Total Length: 33 inches

Width: 17.5 inches

Width with mounting ears: 19 inches

Height: 4 1/2 inches

Weight: 144 lb
