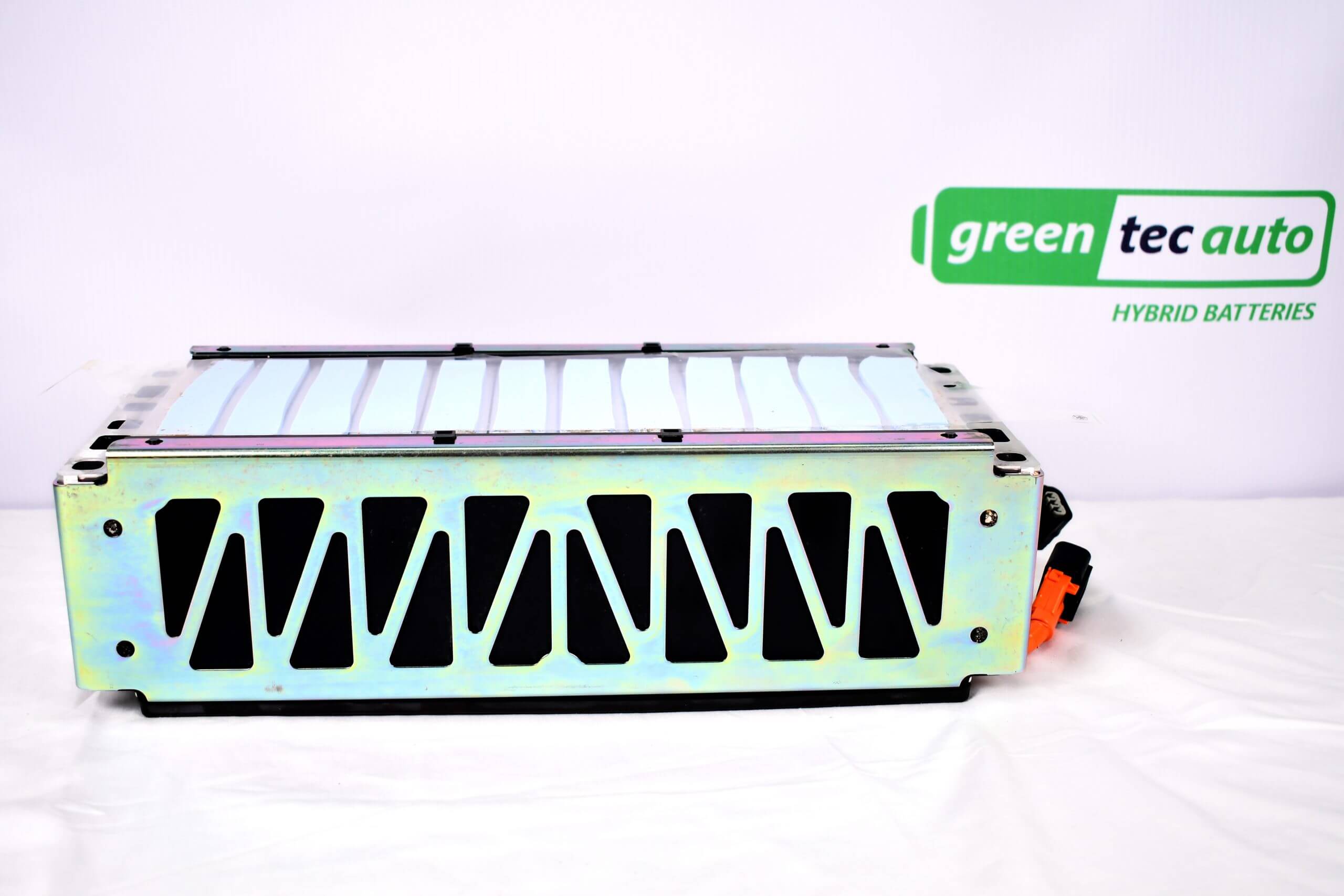

Panasonic Battery Module, removed from the Honda Clarity. This module can handle 200A continuous and 400A peak. The bottom of the module had thermal transfer pads and were sitting on coolant plates. There are holes in each corner that go all the way though to mount the battery to your surface of choice. The plug coming off the module is the voltage sense plug. You can trim the wires one at a time to wire it to your BMS harness.
Specifications:
Cell voltages
Max: 4.1V
Nominal: 3.7V
Min: 3V
Module Voltage
Max: 49.2V
Nominal: 44.4V
Min: 36V
Module Size
Length: 14.75 inches
Width: 6 in
Height: 4.5 inches
Weight: 24lbches
Width with studs: 6.5 inches
Jason S (verified owner) –
Working great thus far. My application doesn’t come near its max discharge/charge ratings and its solidly built, with no blemishes. Shipping was fast and free and I will be buying more. Hoping for a pallet discount 😉
