LGDBM361865, LGGBMH11865, INR18650M36, or INR18650-35E Module with 252 18650 cells

(4 customer reviews)

Original price was: $270.00.Current price is: $200.00.

-

This eMatrix module is like no other! Break this module down for the cells or use it without any modification for a powerful 24V.  Wiring two in series will make a great 48V battery pack. The unique weldless design makes it a prime candidate for any modifications or harvesting because they used a spring as the contact so there has been no spot welding on these cells. If you tear them down you can spot weld them into whatever configuration you desire like you would any other individual cell. The biggest difference between all 4 types of cells are discharge limit and capacity. It is a trade off between the two. Please look at the table below for the outlined differences.

Price per cell: $0.79/cell

Price per kWh: $90/kWh $66/kWh!!

Cell manufacturing years: 2019 and up

Shipping: Free Ground

Warranty: 6 months, Extendable

LG Chem LG Chem Manufacturer Samsung Samsung

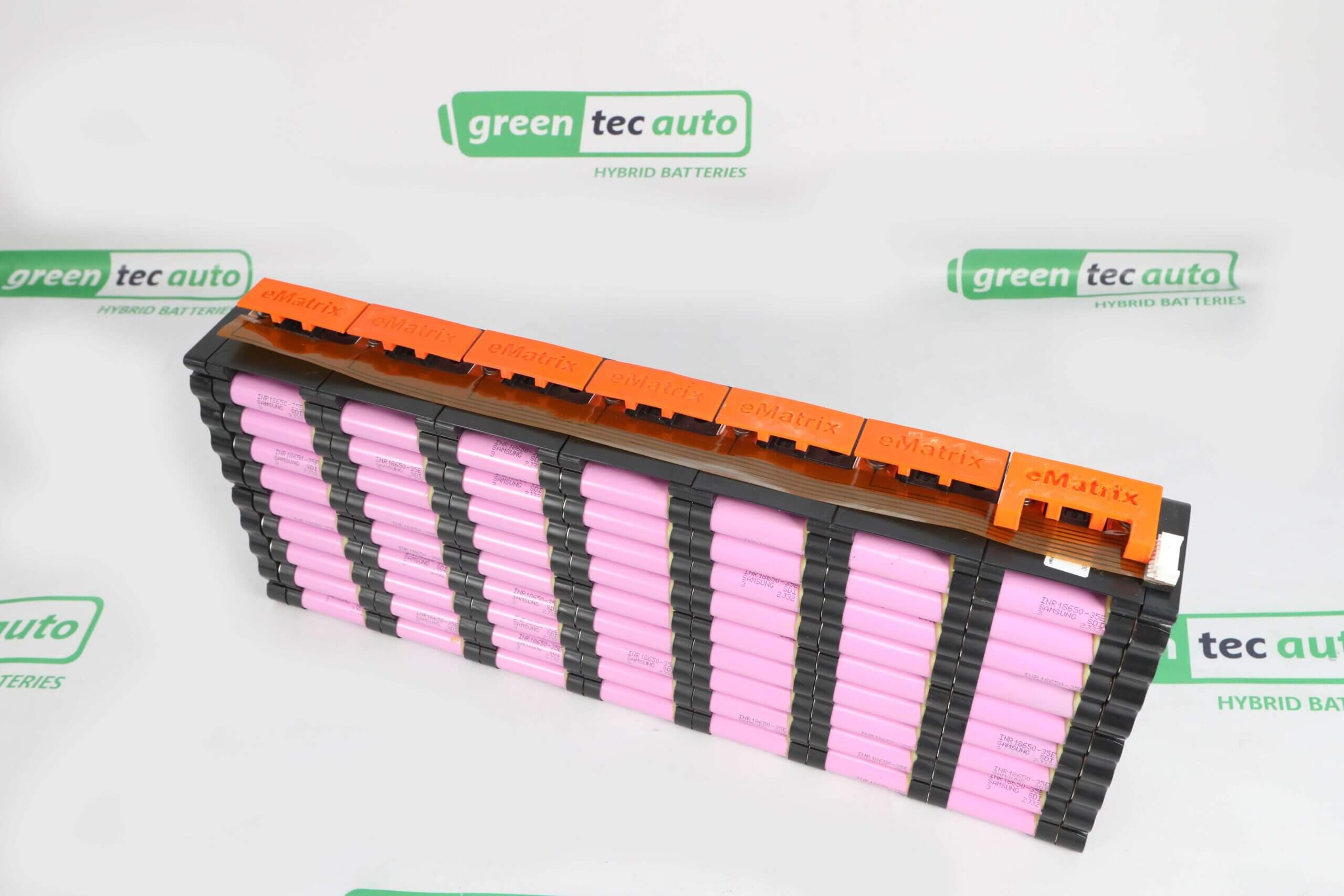

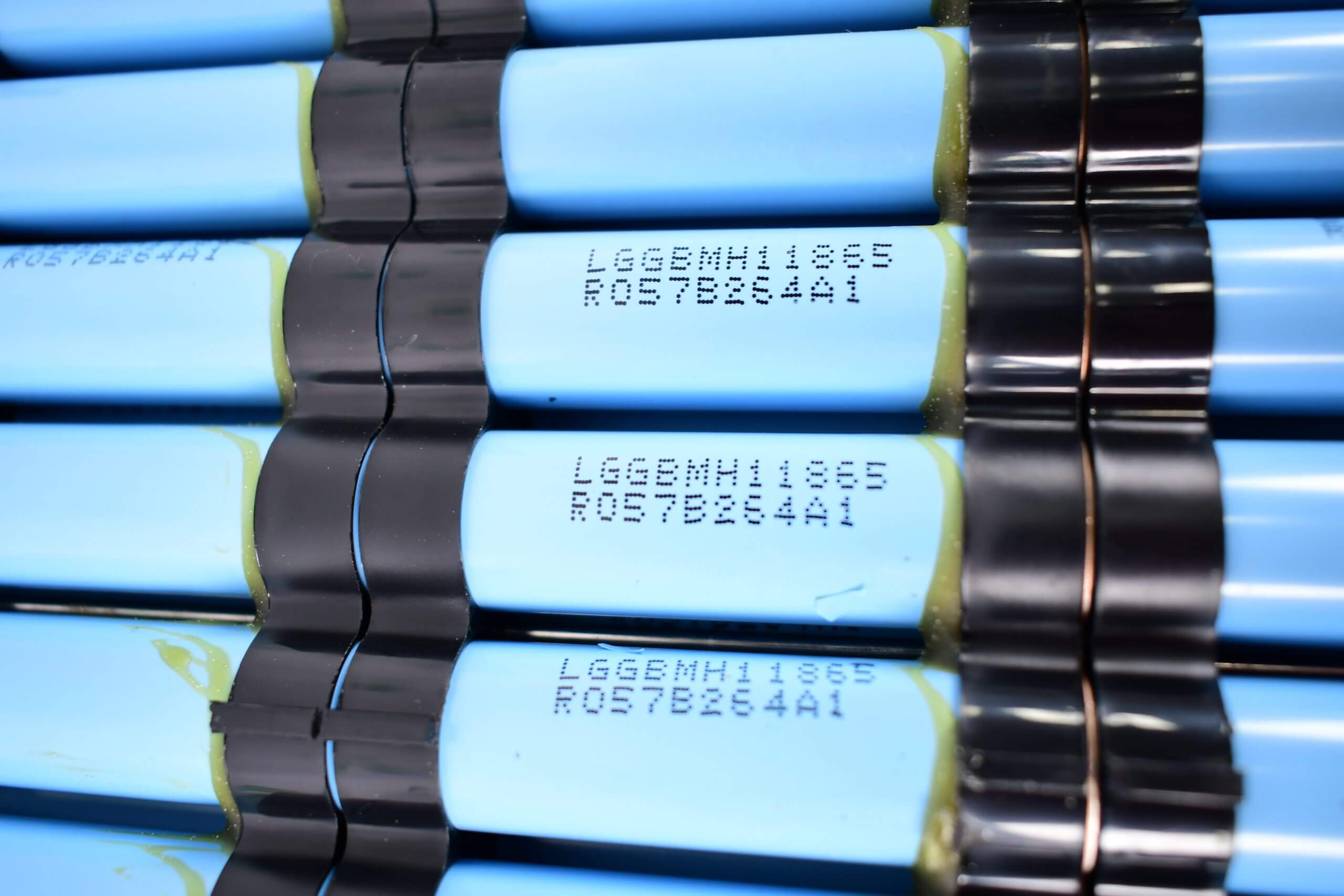

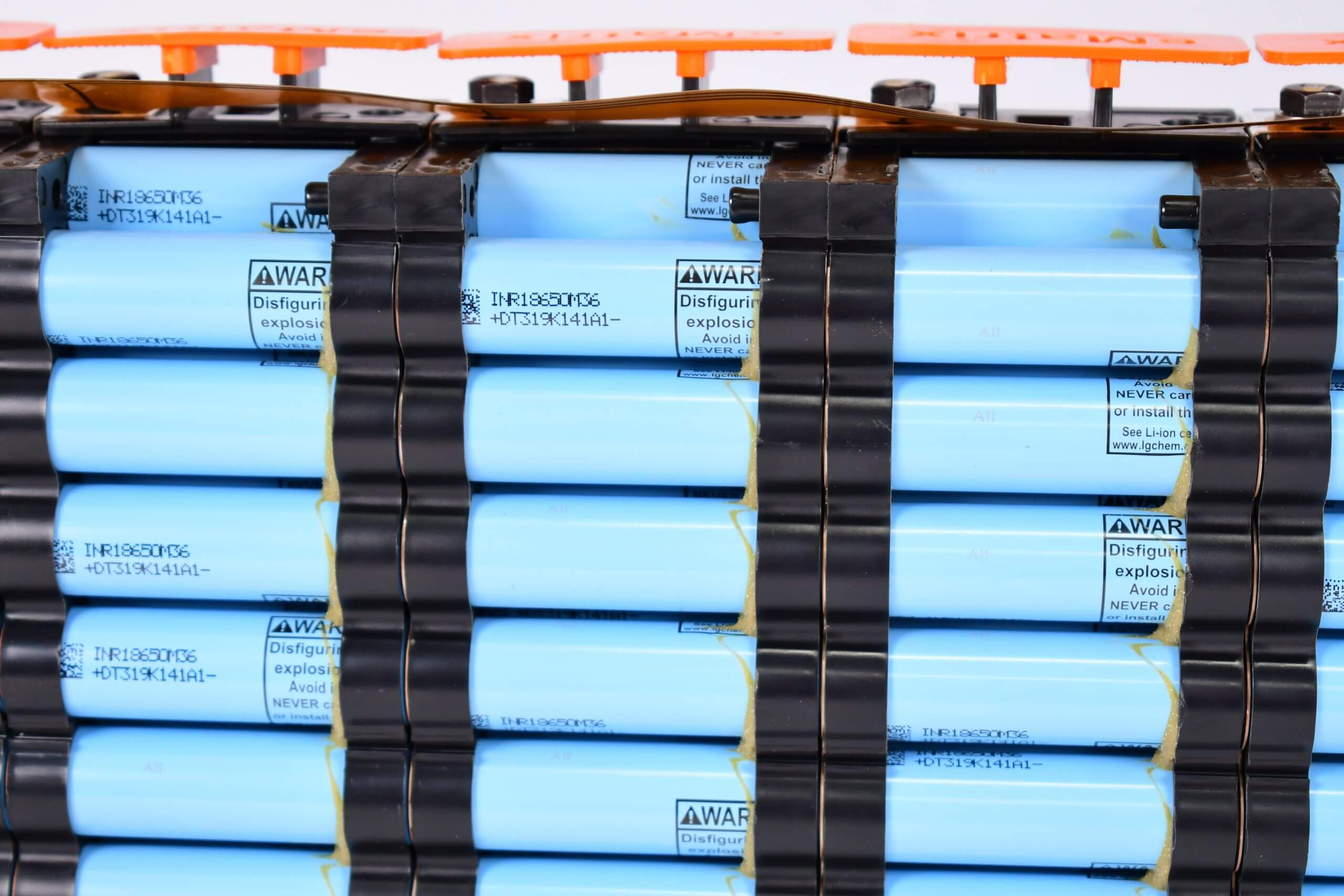

LGGBMH11865 LGDBM361865 Cell Model Number INR18650M36 INR18650-35E
3,200mAh 3,440mAh Nominal Capacity 3,600mAh 3,500mAh
4.2V 4.2V Max Voltage 4.2V 4.2V
3.67V 3.63V Nominal Voltage 3.63V 3.6V
2.5V 2.5V Minimum Voltage 2.5V 2.65V
Undefined 0.67A Max Discharge Current -30C - -20C 0.67A Undefined
10A 1A Max Discharge Current -20C - 5C 1A 8A
10A 5A Max Discharge Current 5C - 45C 5A 13A
10A 5A Max Discharge Current 45 - 60C 5A Undefined
1A 1A Max Charge Current 0C - 24C 1A 1.7A
3.1A 2.33A Max Charge Current 25C - 50C 2.33A 2A
Module Info
3kW 3.1kWh Energy 3.33kWh 3.17kW
115.2Ah 123Ah Nominal Module Capacity 129.6Ah 126Ah
29.4V 29.4V Max Module Voltage 29.4V 29.4V
25.7V 25.4V Nominal Module Voltage 25.41V 25.2V
17.5V 17.5V Minimum Module Voltage 17.5V 18.55V
Undefined 24.12A Max Discharge Current -30C - -20C 24.12A Undefined
360A 36A Max Discharge Current -20C - 5C 36A 288A
360A 180A Max Discharge Current 5C - 45C 180A 468A
360A 180A Max Discharge Current 45 - 60C 180A Undefined
36A 36A Max Charge Current 0C - 24C 36A 72A
111.6A 83.88A Max Charge Current 25C - 50C 83.88A 61.2A



Module Info

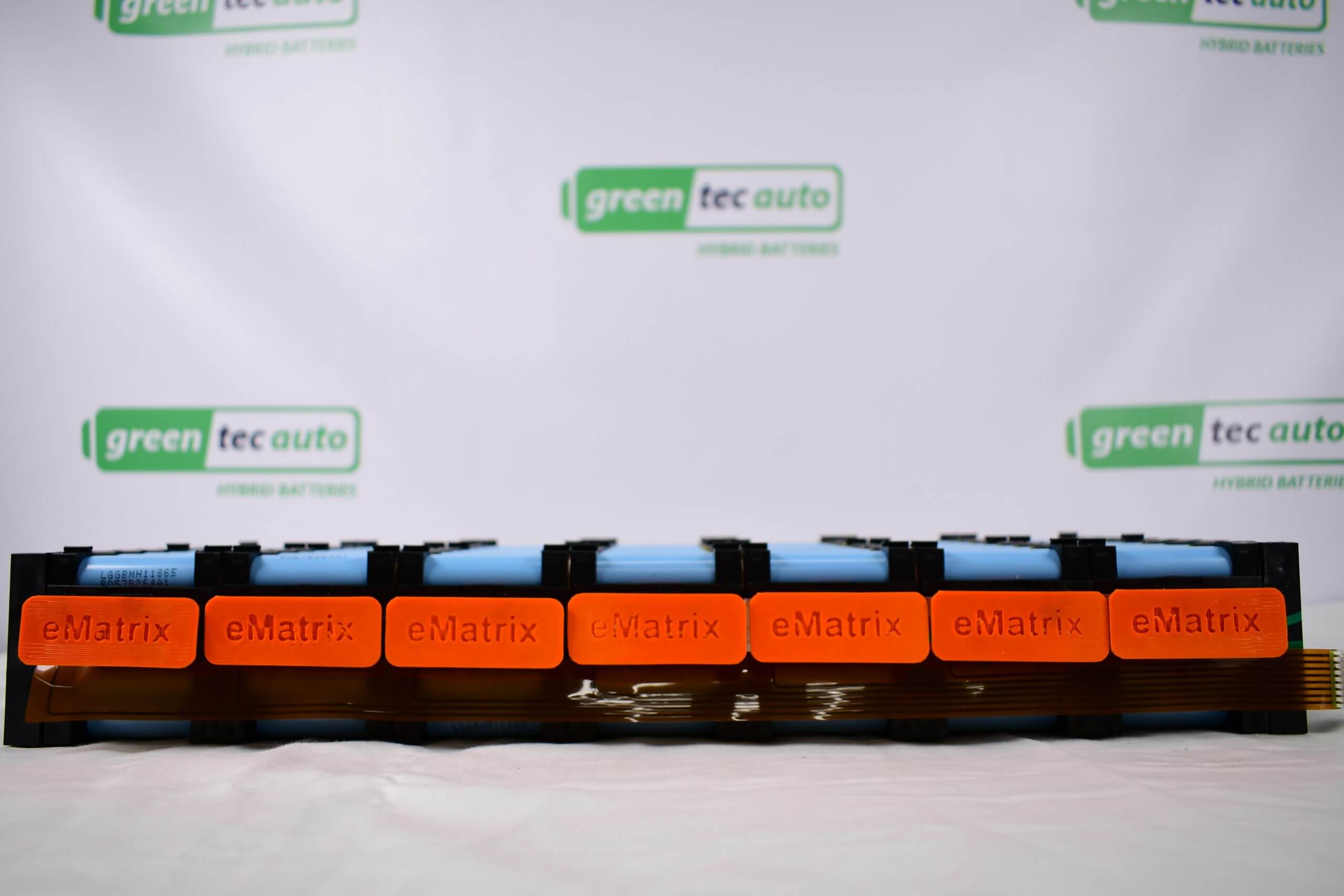

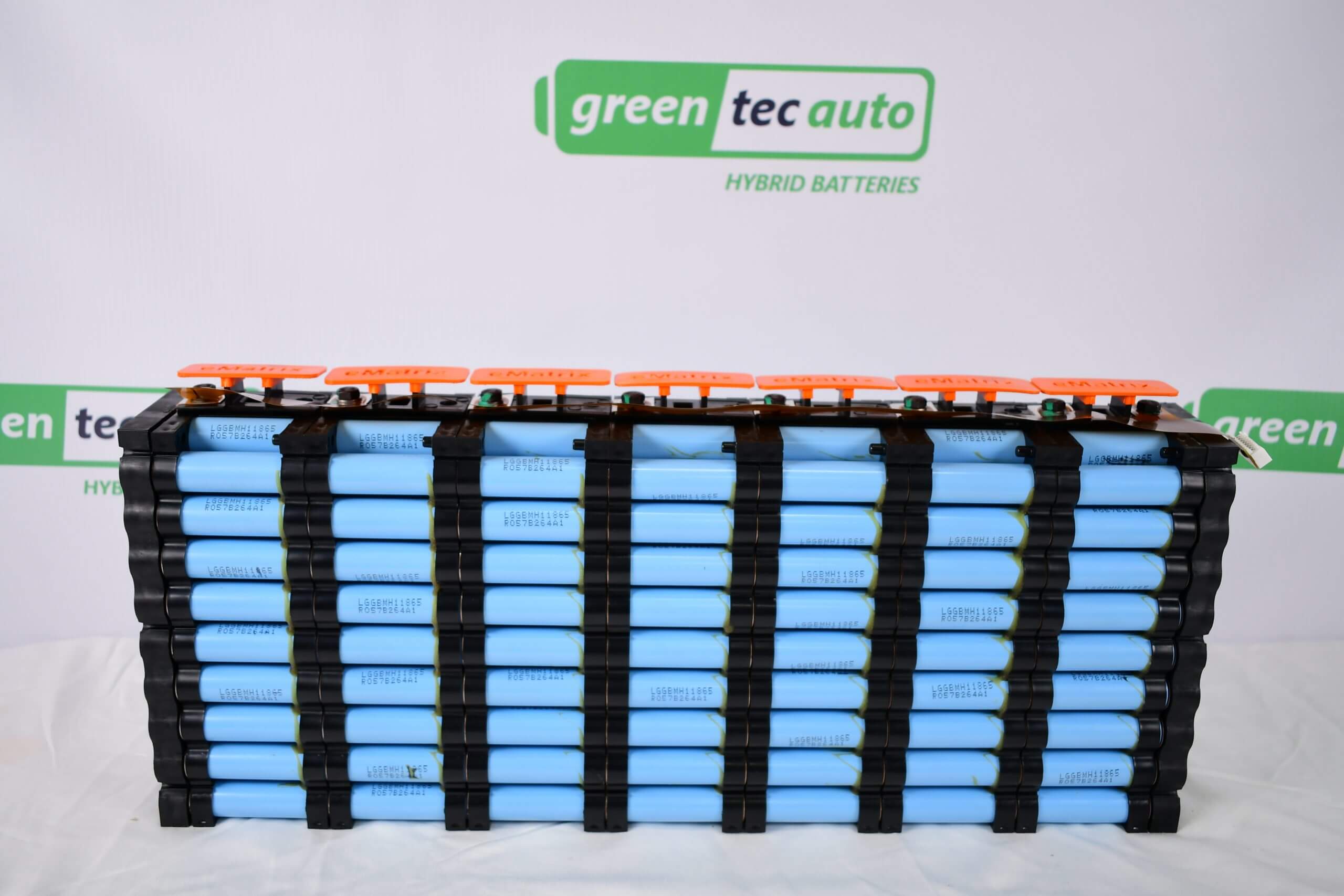

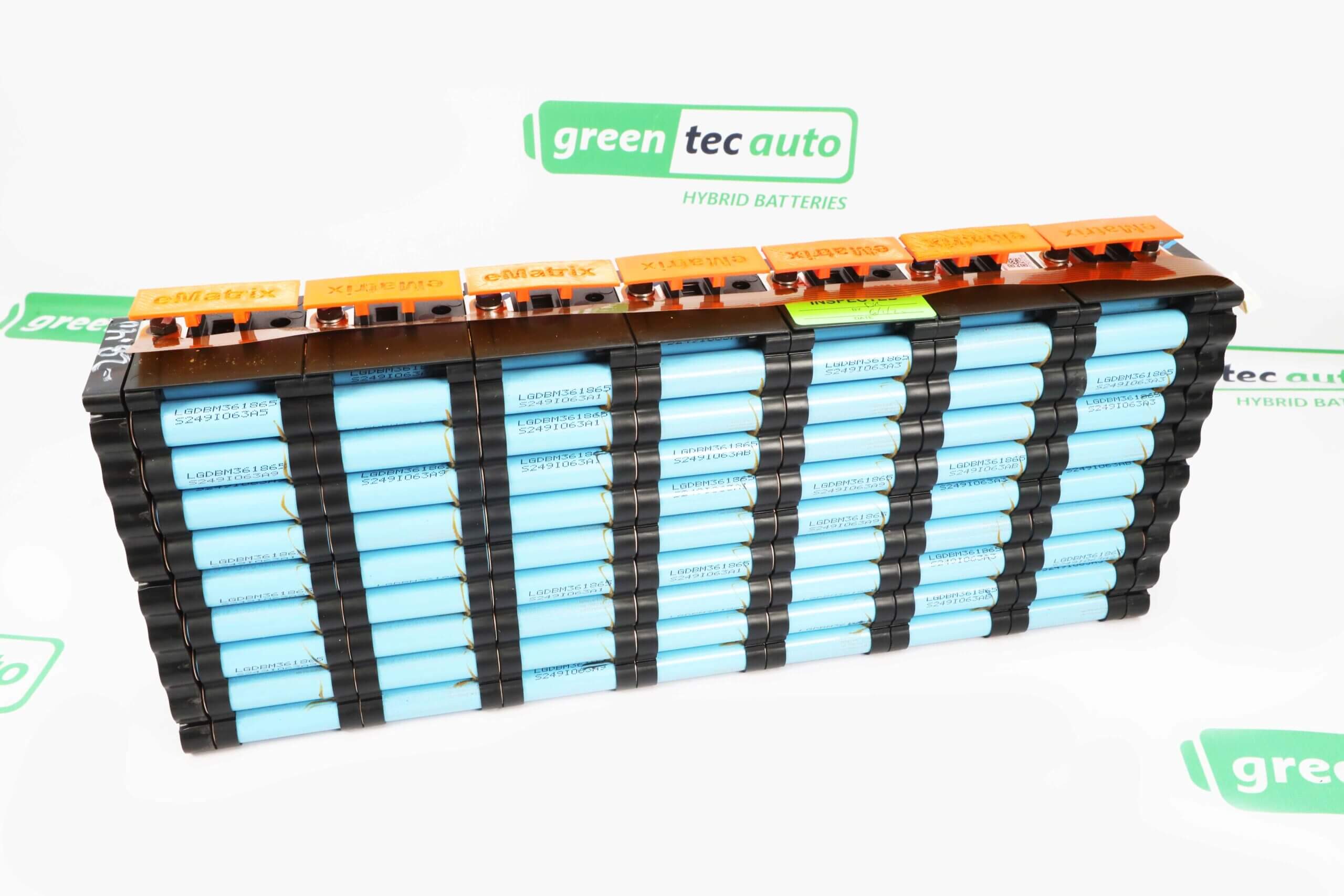

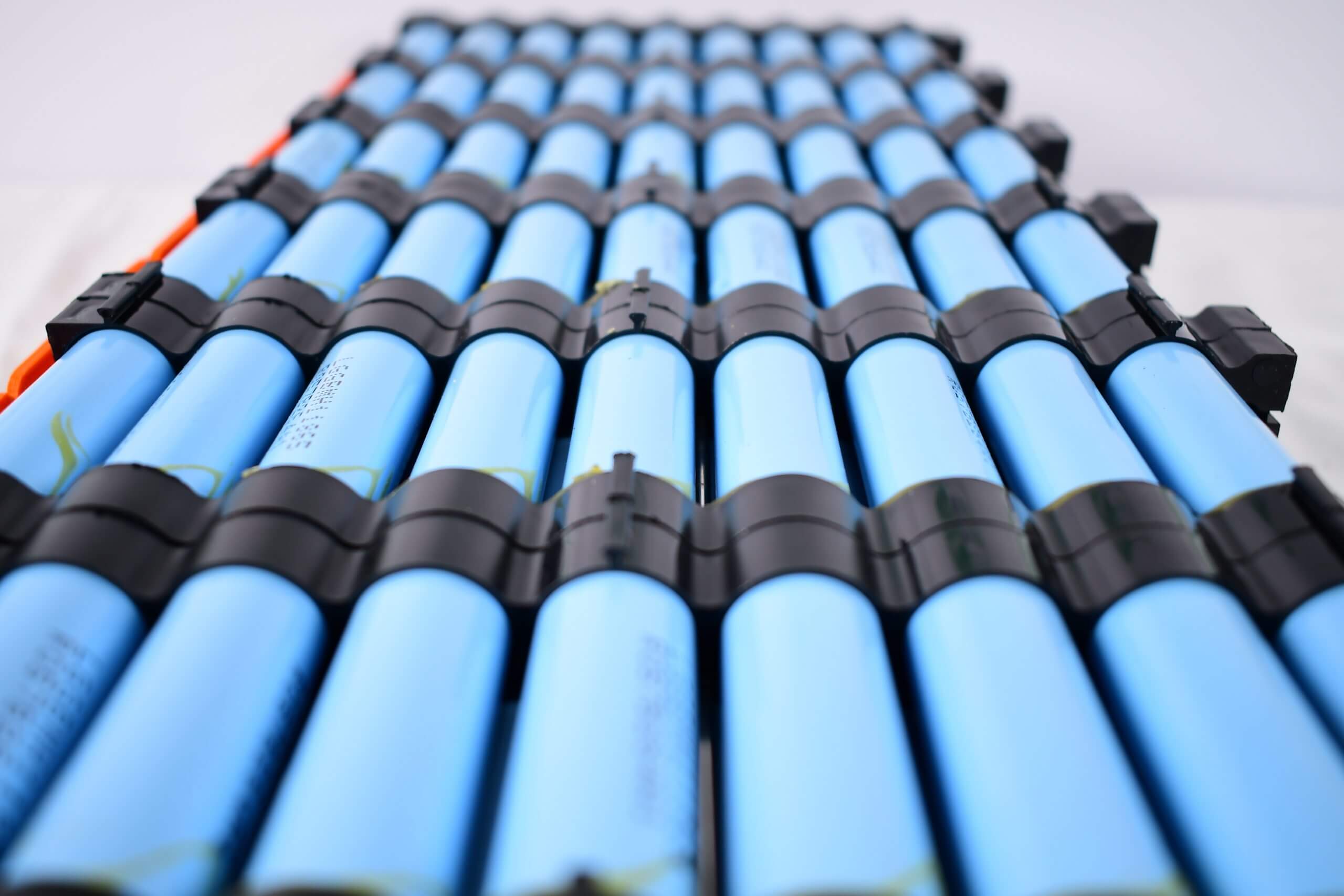

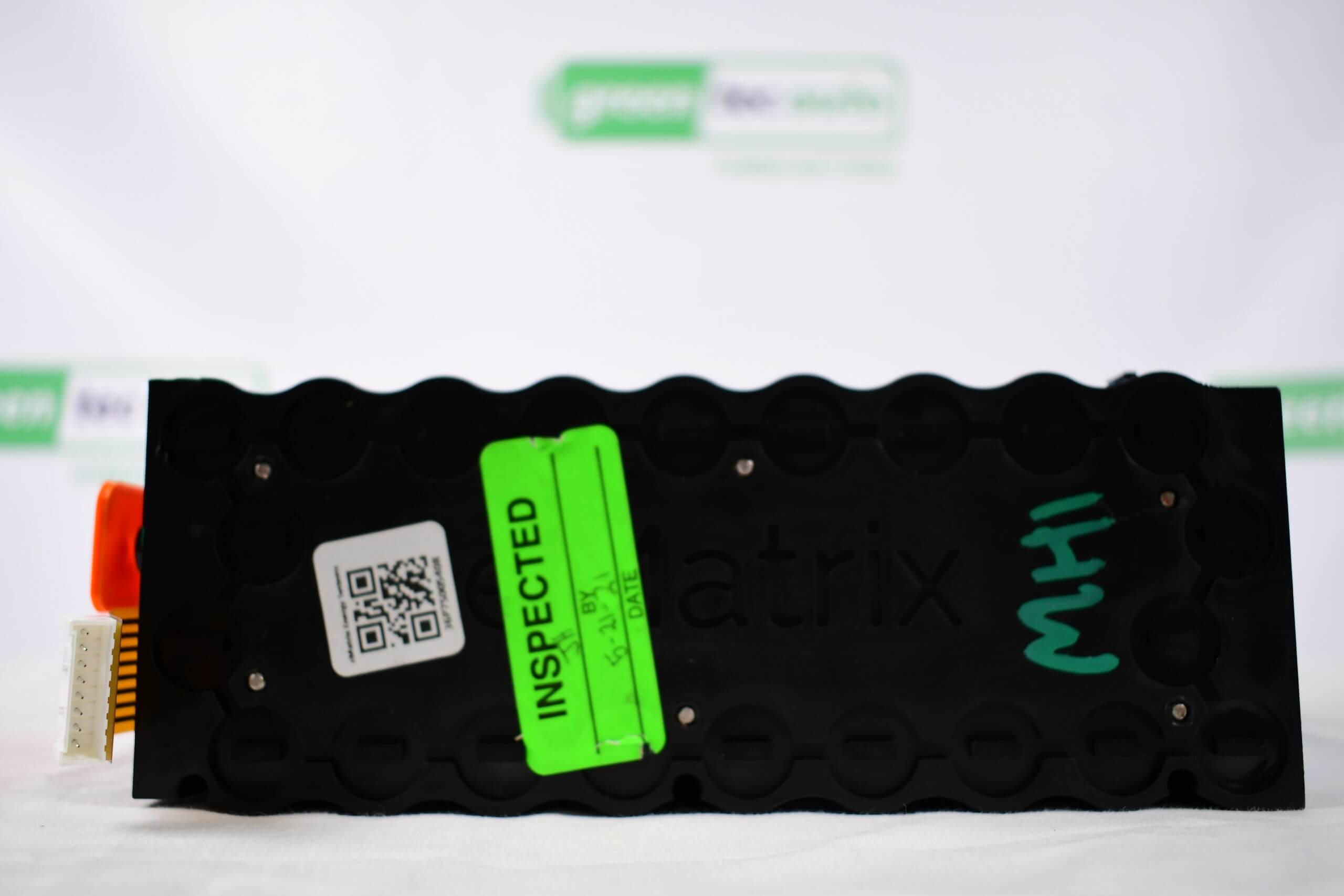

These are easy to handle 24V battery modules built using one of the four types of 18650 cells above. The ribbon cable is held on by bolts,  removing it and adding your own BMS harness with ring terminals will be easy. It is possible to break it down into smaller groups in series, but it looks like the end pieces are unique, so if you break it down to 6s or 5s, you might not have an easy way of assembling the remaining components into a separate module. There are gaps in between the cells for air cooling. Incorporating air cooling into your own build will be easy if you intend to use them under high currents. The modules interlock with each other in a sliding action to create a sturdy complete pack if you are planning on buying multiple of this item and use them as is. We also have a busbar that we could provide upon request that will series together modules.

For Cell Harvesters

The 18650 cells are NOT welded,  disassembly is extremely easy.  The cells are compressed and spring loaded through a patented design.  One purchaser has made a very detailed breakdown of this module that you will find very useful. You can find it here.



Module Specifications:


Module Configuration: 36p7s

Length: 19 1/2"

Width: 3"

Height: 8 1/2"

Weight: 30.3lbs

Additional information
Cell Type

LGDBM361865(3.44Ah), LGGBMH11865(3.2Ah), INR18650M36(3.6Ah), INR18650-35E(3.5Ah)

4 reviews for LGDBM361865, LGGBMH11865, INR18650M36, or INR18650-35E Module with 252 18650 cells

  1. Shawn (verified owner)

    Batteries all tested above 80% capacity with proper IR module is a little rough to take apart not bad had shrink wrap most but at the price you end up pretty good disassembled module to make ebike batteries

  2. Adrian levy (verified owner)

    These cell have become the most cost-effective low-cost option for my customers, coupled with a reputable BMS they work equally well on 24volts 7s and series stacked to 48 volts 14s no problems. Low cost systems Renewable systems designed with these stacks revealed that a 48 volt twin stacked will achieve full energy delivery at 6kWh no problems for loads not exceeding 1kw sustained. This is so because not a single unit 18650 cell in the stack will not exceed their coulombic rate (C rate). This is the key reason for their effectiveness. A true value for money

  3. nicholas r

    items as described thanks

  4. Jacob Batterman (verified owner)

    Spot tested 20 cells from the pack I bought. All are voltage balanced and measuring around 3.2Ah under a 1A load. The cells are glued into the holders so the sleeves will rip when you remove them, but there are no welded nickel stips to deal with. Very impressed with the communication, packaging, and pricing of Greentec. I will be using them as my battery supplier whenever possible henceforth.
