Product Description:

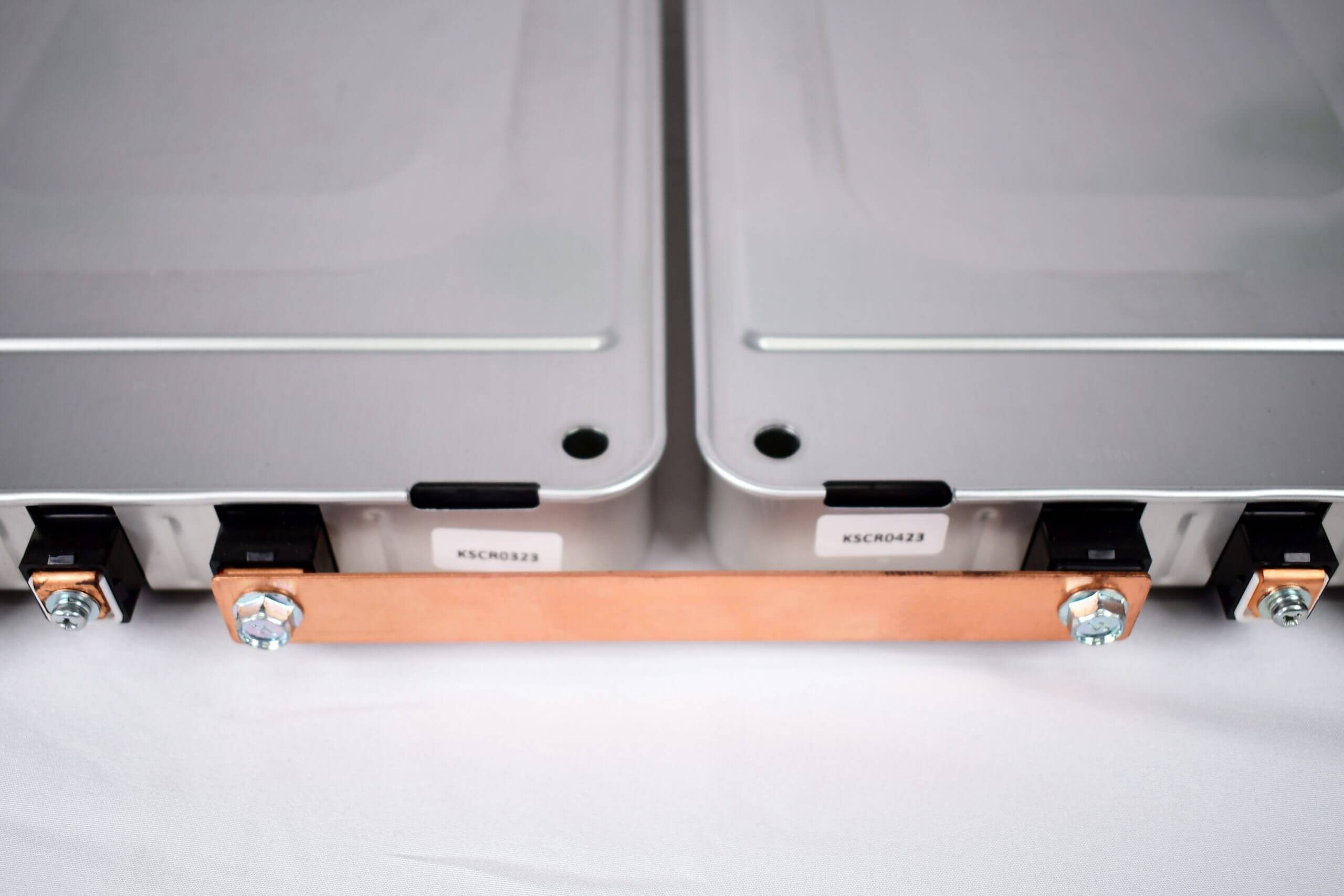

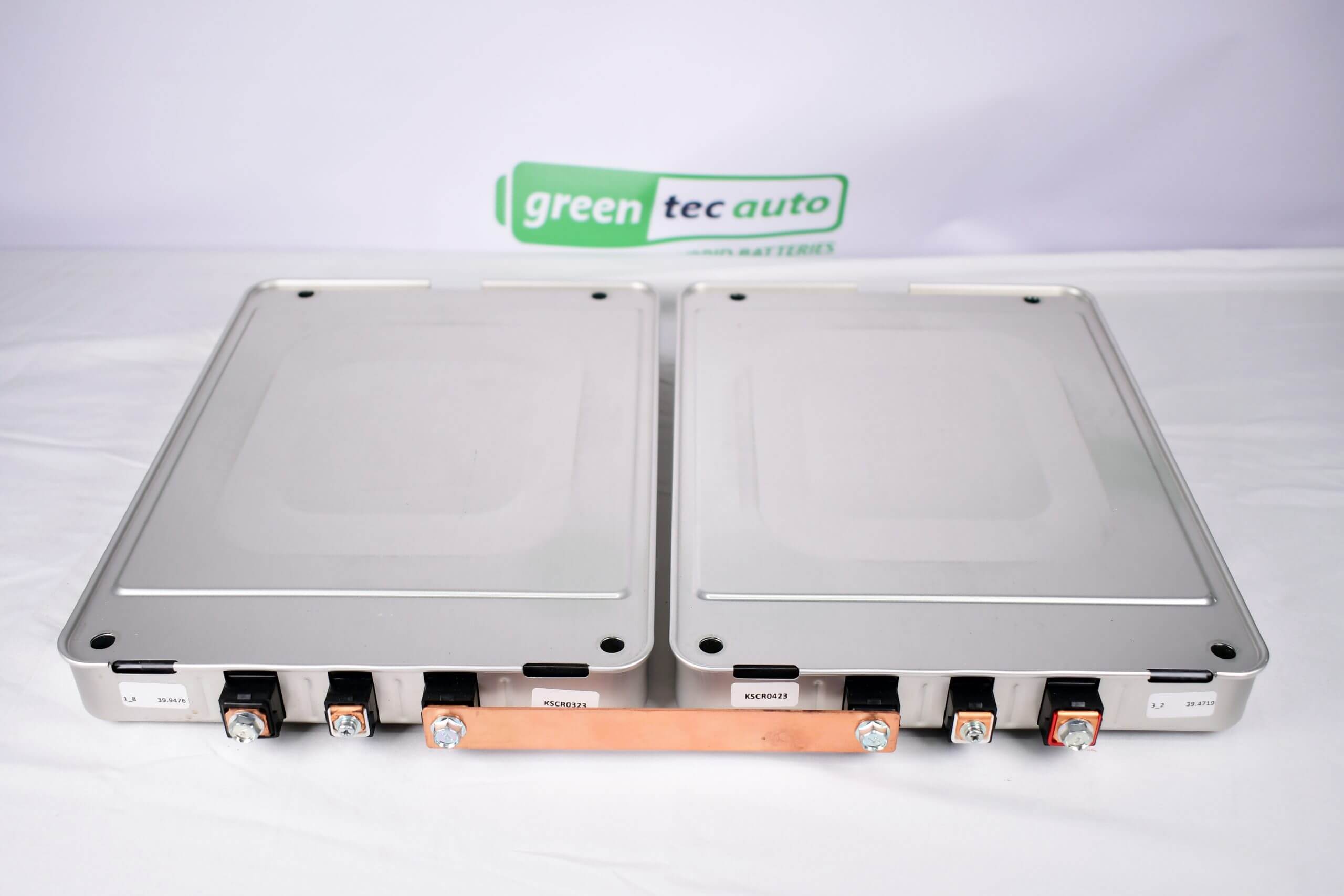

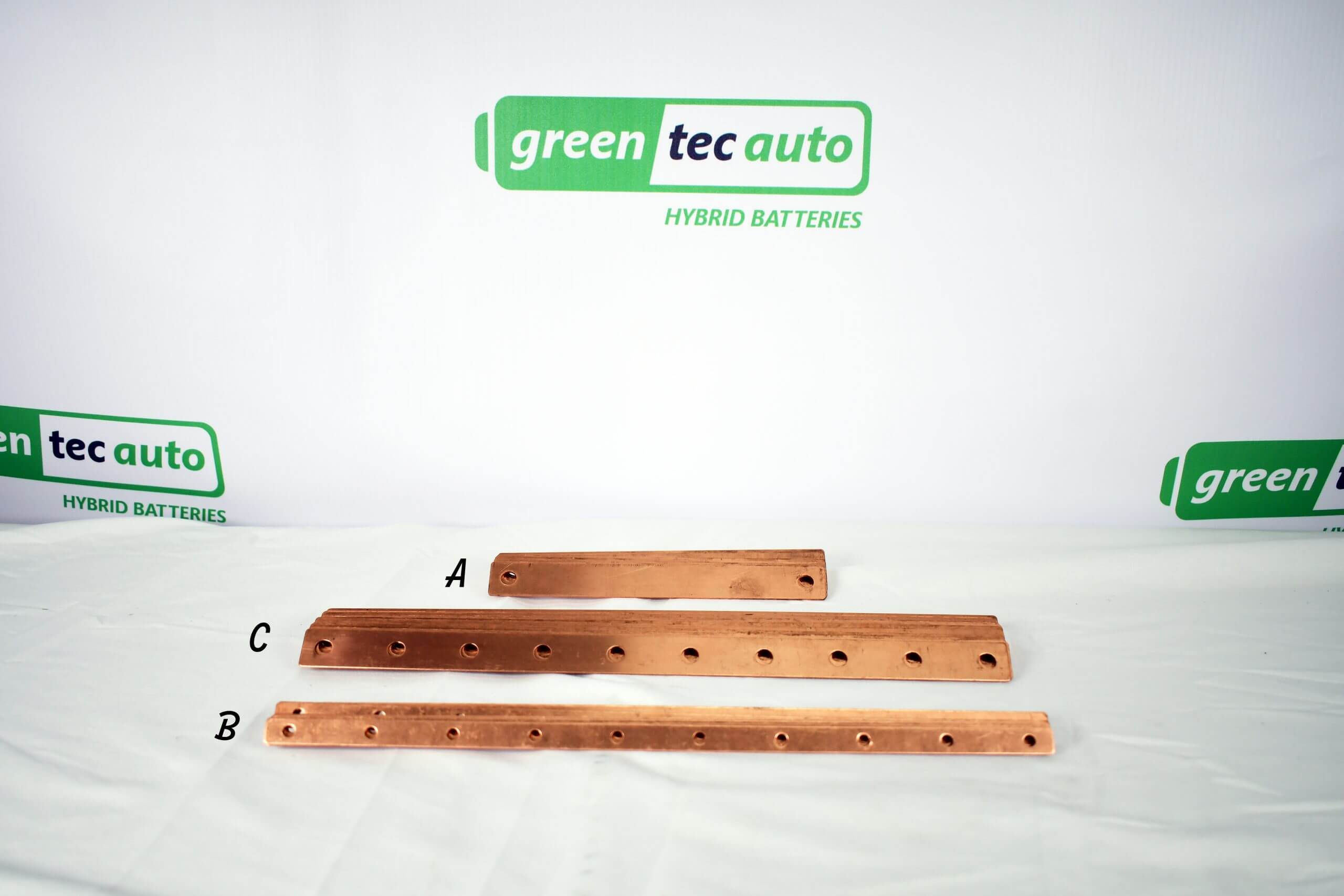

Busbar A allows you to series together the stacks of Leaf modules to build up the overall voltage of the battery. This busbar is 1/16th inch thick.
Busbar B is the narrowest busbar, it parallels the center taps of the Leaf modules to ensure they are always balanced. This busbar is 3/64th inch thick.

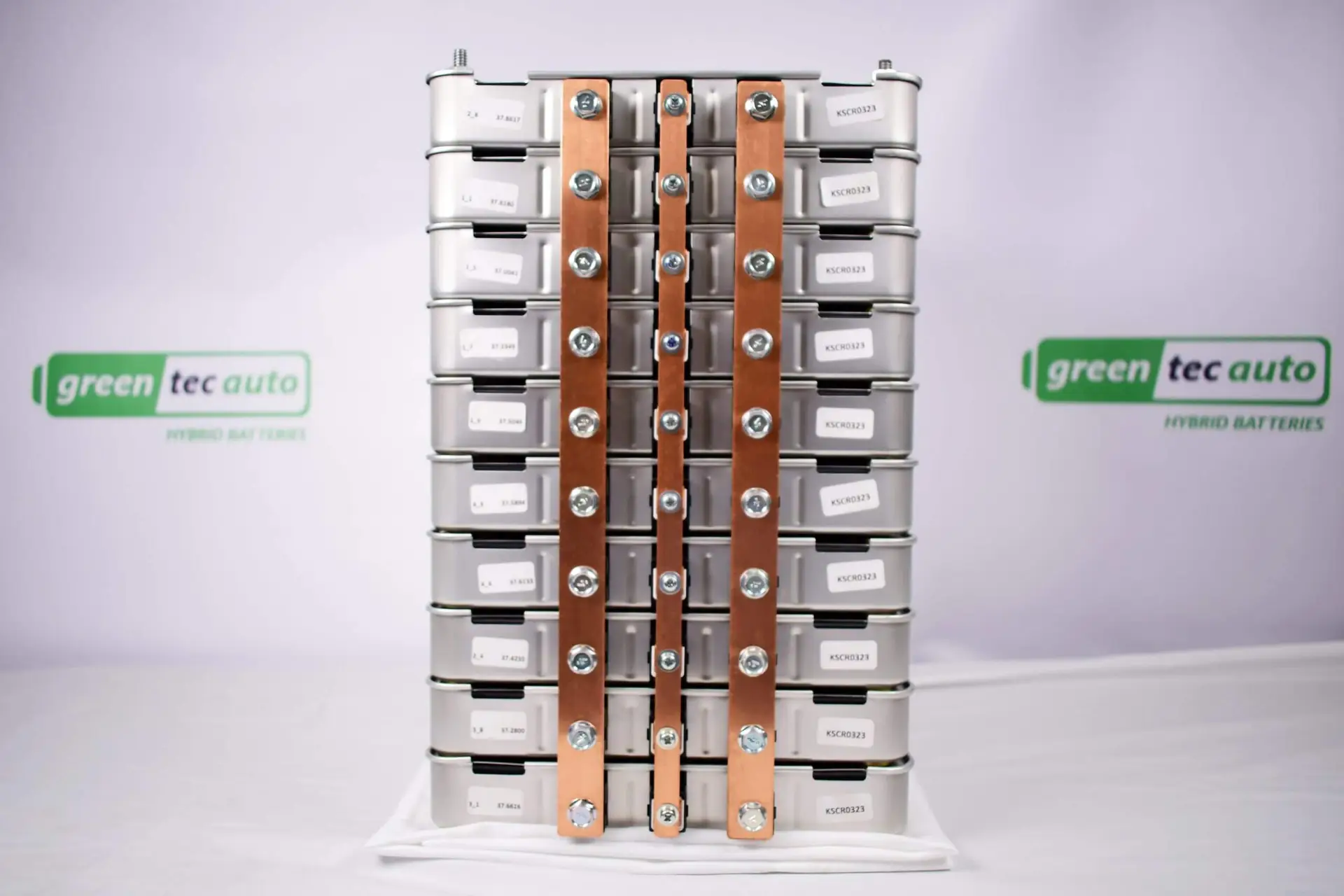

Busbar C is the tallest and widest segment, it parallels the current carrying terminals of the battery modules. This busbar is 3/64th inch thick.
- If you have fewer modules in parallel, you can cut the busbar segments A and B shorter to fit your application.
- The Busbars are covered in a corrosion preventing lubricant from the manufacturing process, please clean the lubricant off with rubbing alcohol or a dry rag before use.
48V Kit includes:
- 6 A pieces
- 7 B pieces
- 14 C pieces
Pro Tip: Oil from fingerprints will corrode the copper at an accelerated rate, thoroughly wipe the plates with dry cotton towels before screwing them down and use gloves while handling
Doug Le –
Great quality and great fit. I used these to make a solar battery backup system for our house. They do seem a little thin for 200 amps but would be fine for anything under that. I used two sets and never pull more than 100 amps through either set so they are perfect for me. All the holes match perfectly. It sure beats making them yourself.
