More Info:

LFP chemistry.

All cells are good and very well balanced.

There are resistive heaters along the sides of the modules. Total Resistance is 10.7 ohm. The heater was powered from outside the battery. Each module heater is disconnectable.

The modules are glued down, but with a little work you can get them to come off. The bottom plate has coolant ports, so leaving them glued down would help with cooling.

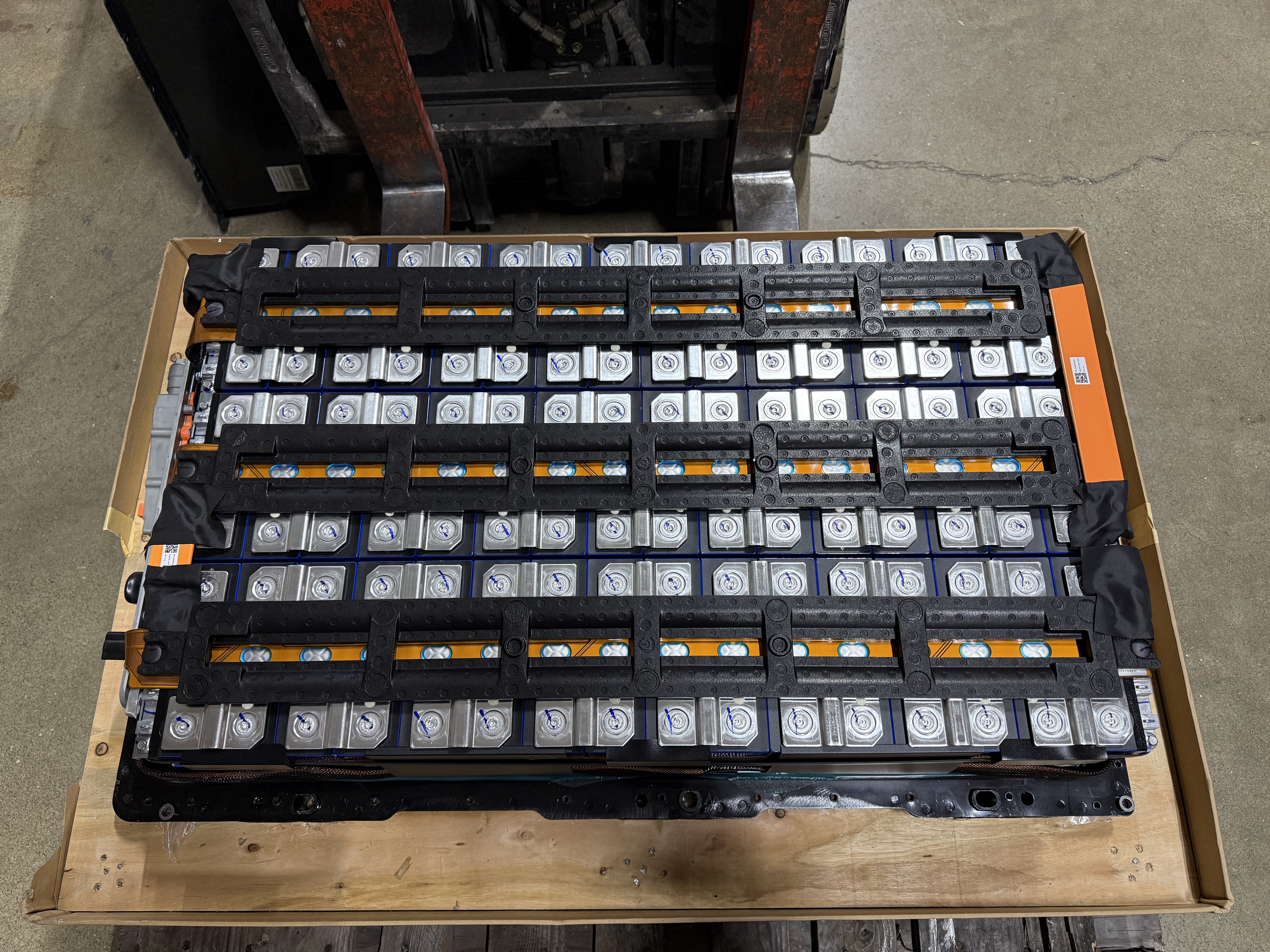

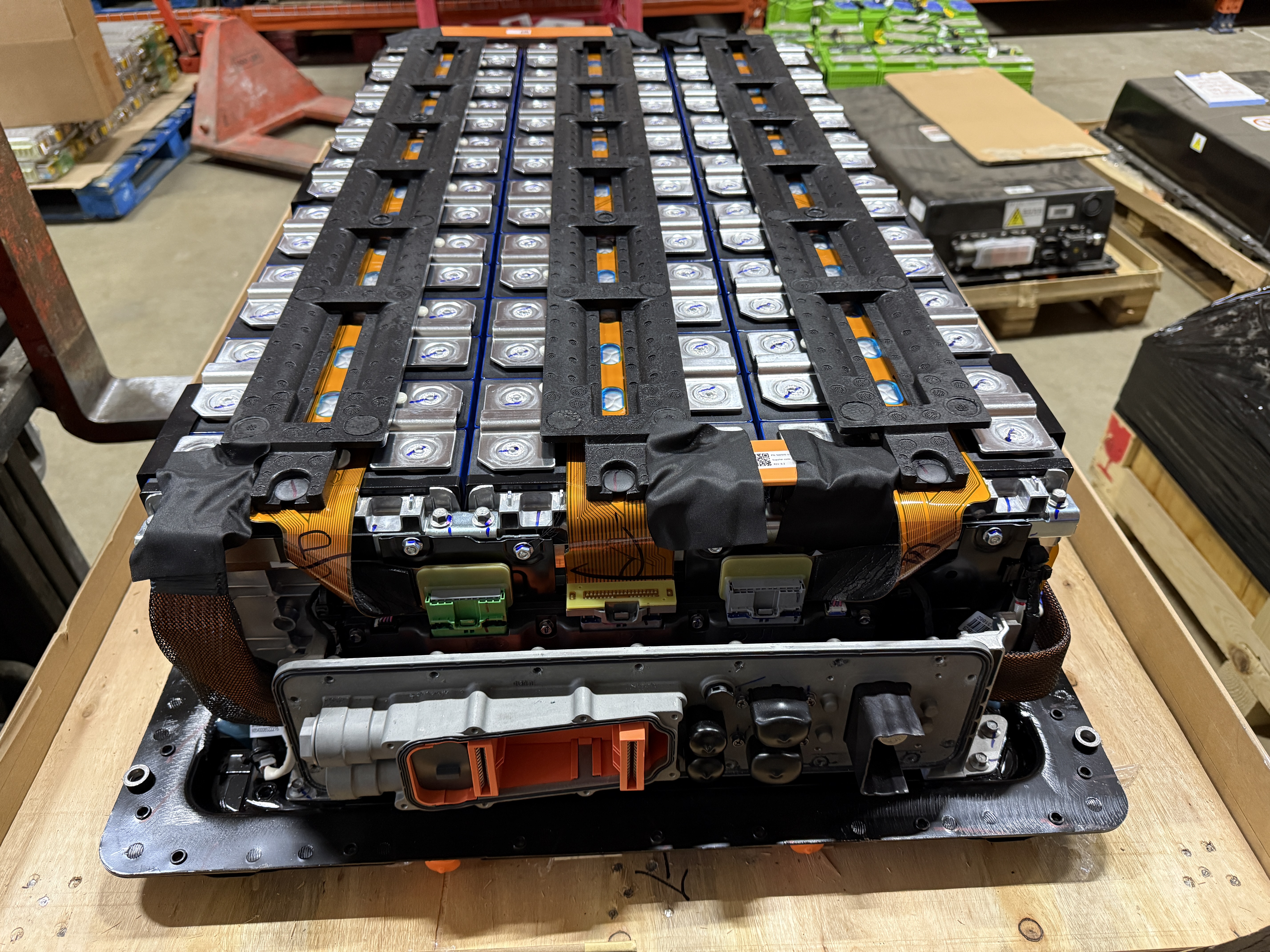

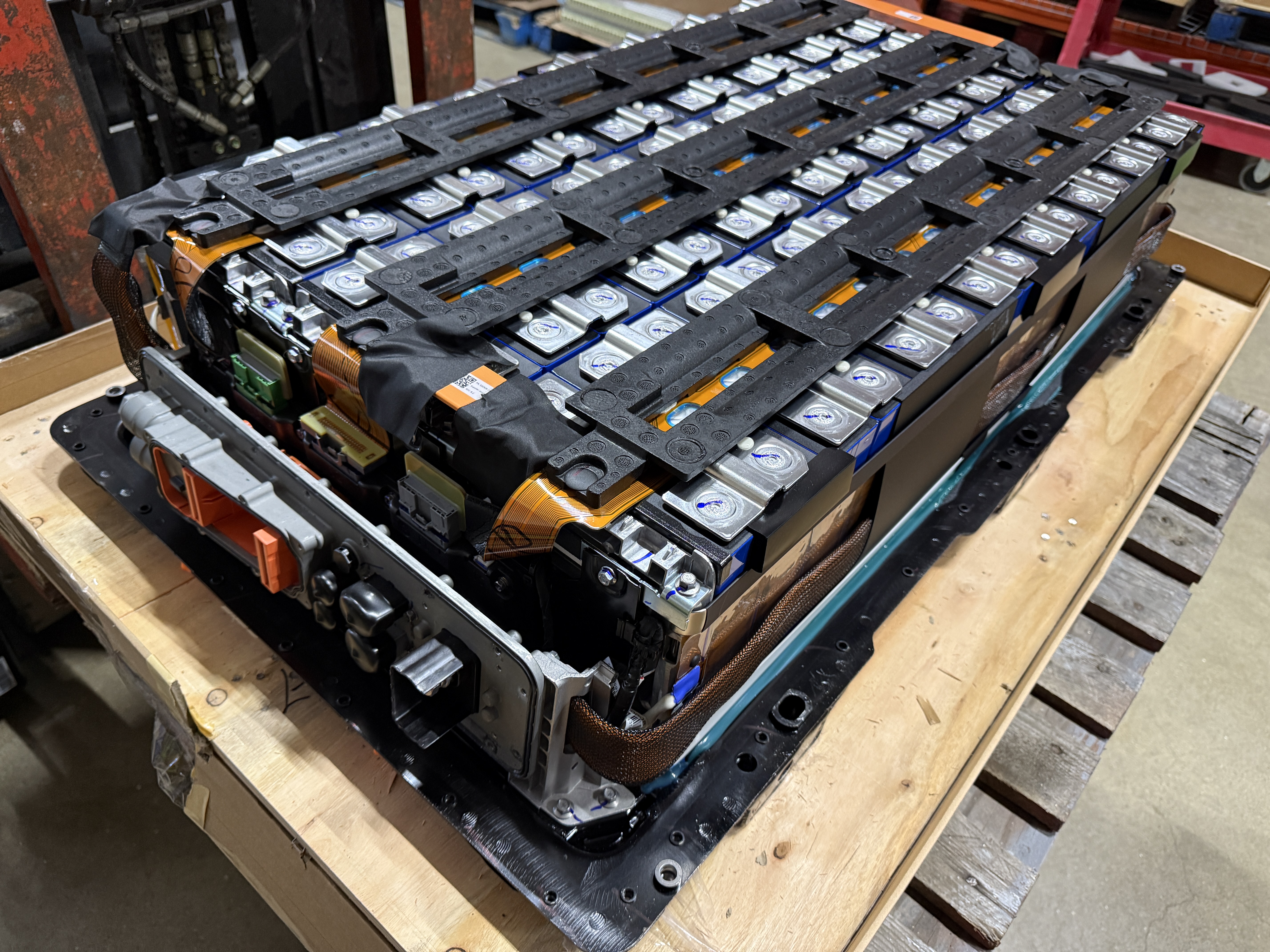

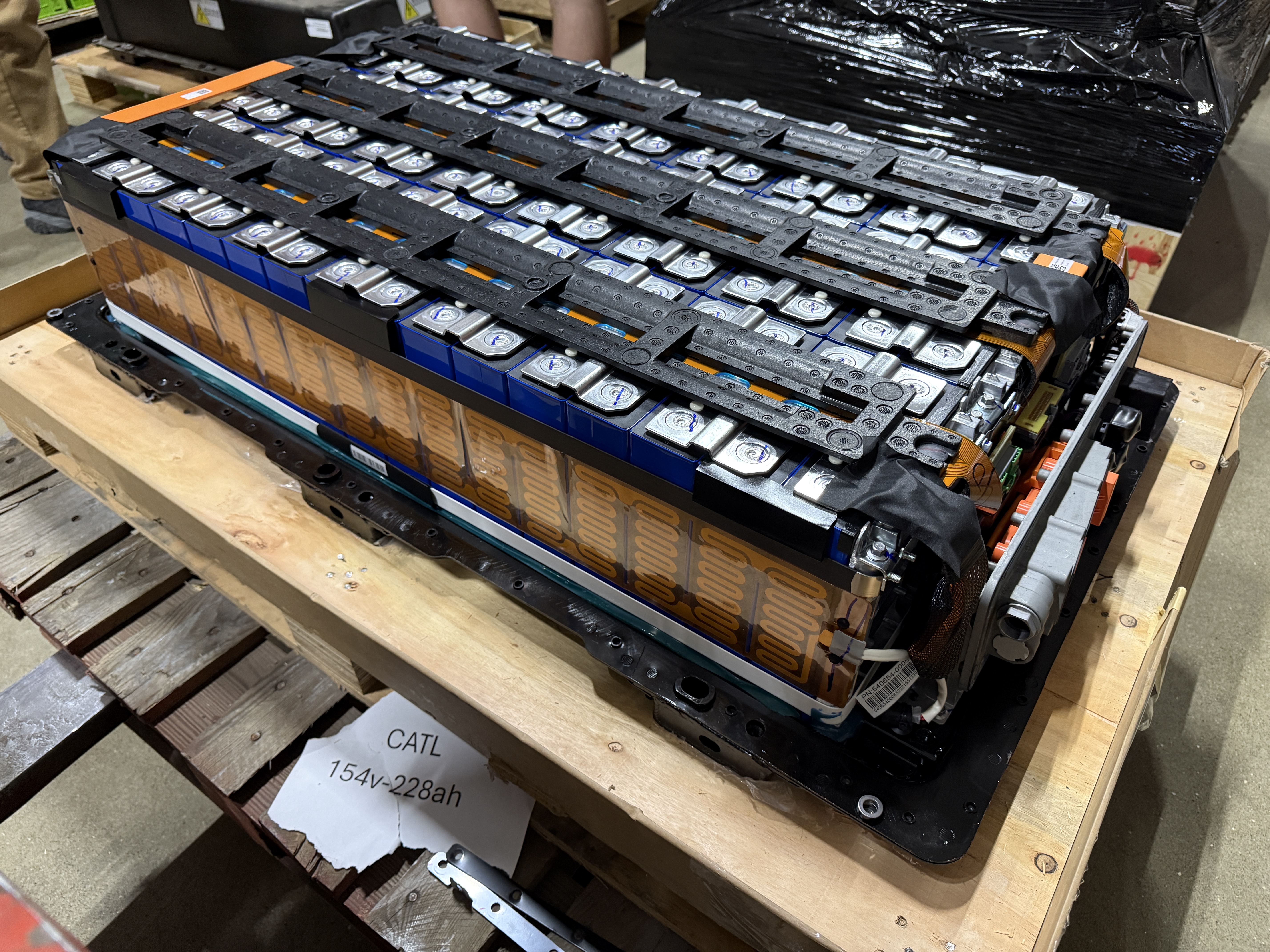

There are 3 modules inside this pack, each with 16 cells in series, a total of 48 cells.

Shipping will need to be freight due to the pack size. We can ship this pack to one of our locations for no more than $250, or ship to a commercial address or freight hub near you for $350. Residential freight delivery is possible for an additional charge, contact us for a quote.

Cell info                                                                        Module Info

Nominal Capacity: 228 Ah                                                         16S1P

Nominal Voltage: 3.2V                                                                Nominal Capacity: 228Ah

Voltage Range: 2.5V-3.65V                                                         Nominal Voltage: 51.2V

Charging Voltage: 3.65v per cell                                               Voltage Range: 40V-58.4V

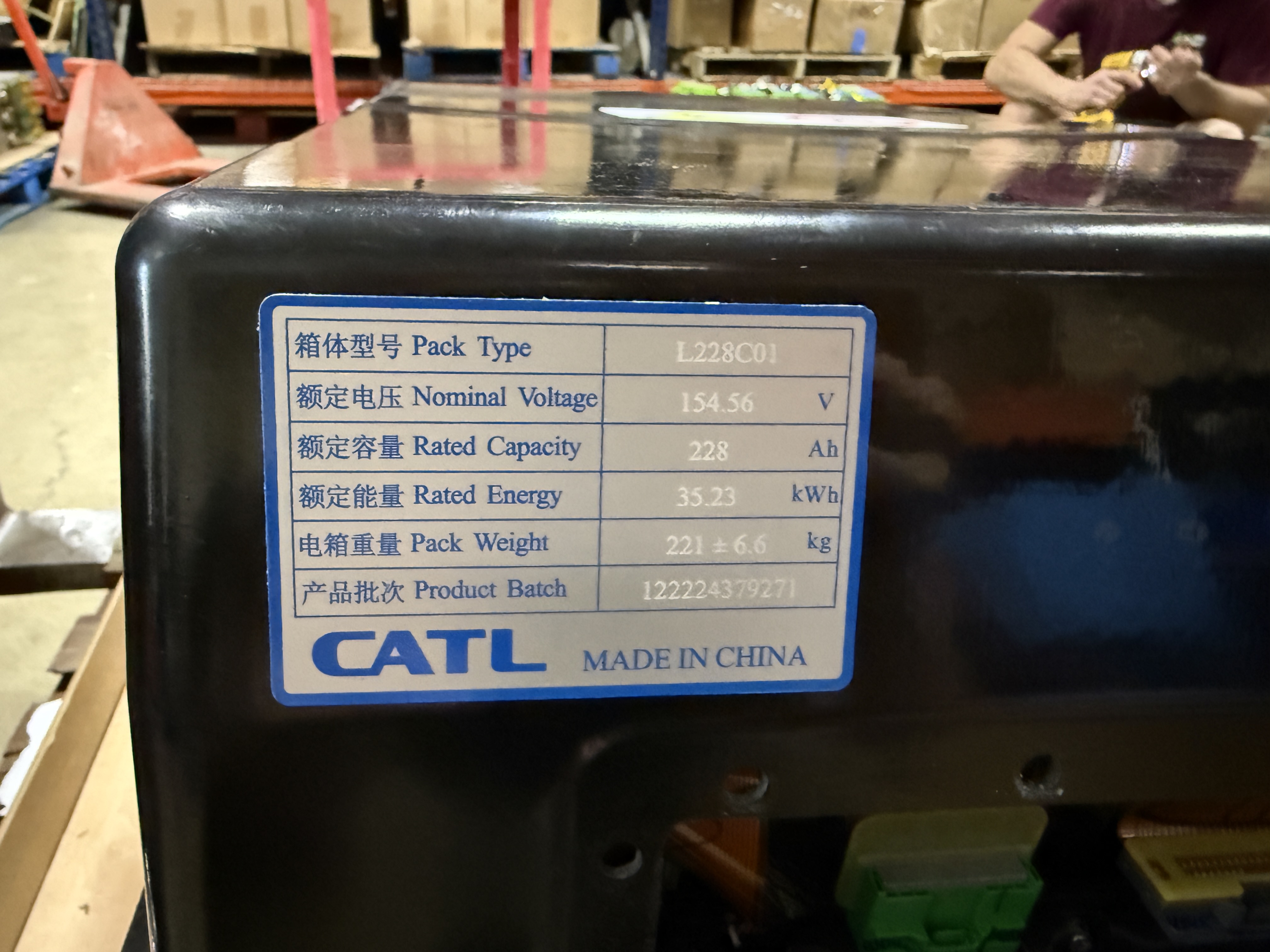

Pack info

48S1P                                                                                             Length: 42in

Nominal Capacity: 228 Ah                                                        Width: 25.5in

Nominal Voltage: 153.6V                                                          Height: 9.5in

Voltage Range: 120V-175.2V                                                     Weight: 487lb
